5th Step: Input/Output Sets
Maestro Control of External Device (Action: Transition in Progress)
In this application, Maestro can send a Transition in Progress signal to an
external device. See
Figure 111 .
Note Prior to v1.5.2, the GPO was asserted when a source began to transition. In
v1.5.2 and later the GPO is asserted as soon as the transition is triggered
whether the source begins to transition immediately or is delayed.

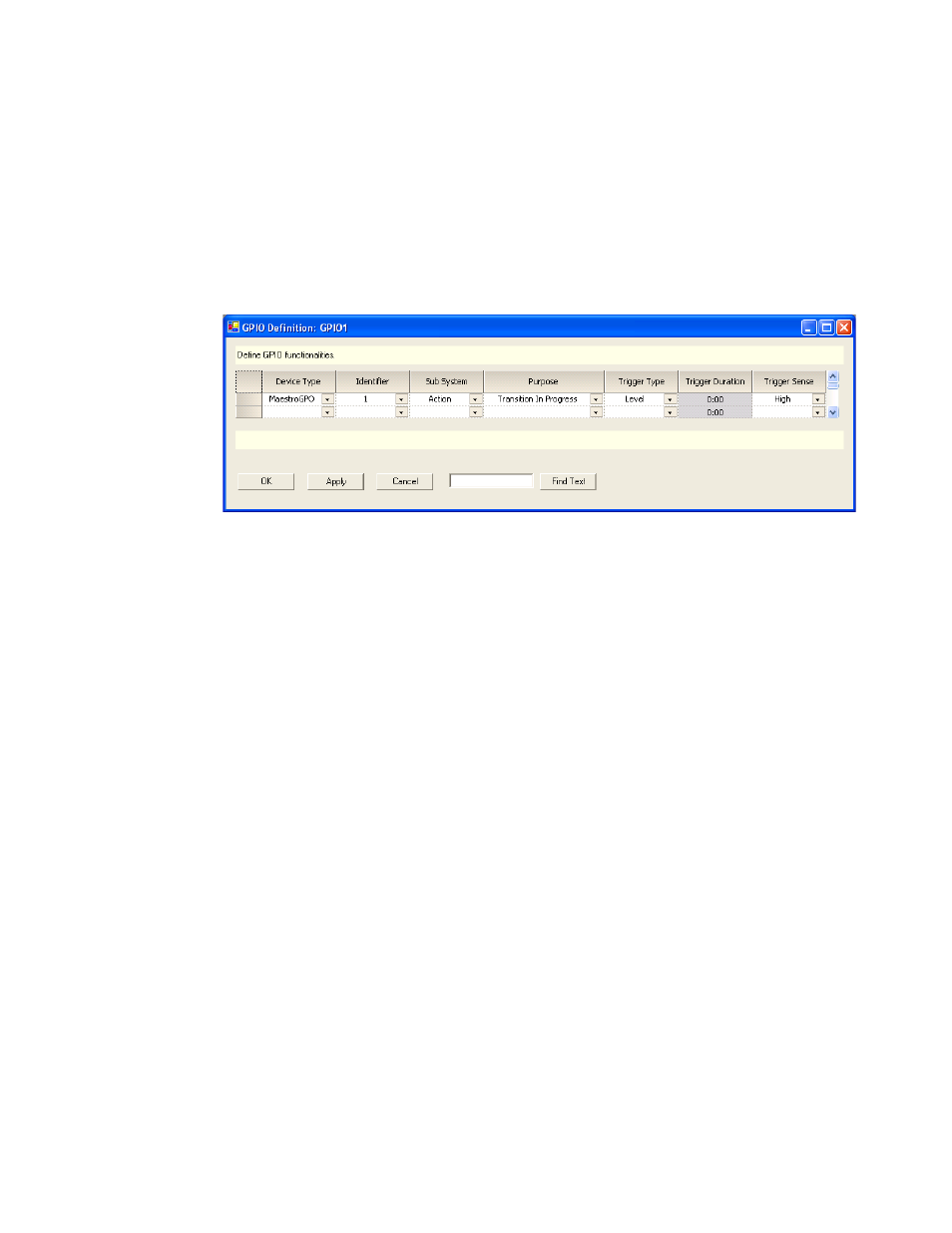

Figure 111. GPIO Definition table for “Transition” Trigger to Maestro
Device Type
For this application, select “MaestroGPO.”
Identifier
The numbers in this column refer to the 16 ports on the GPIO connector.
Any port from 1 to 16 can be selected in any order.
Sub System
Select “Action.”
Purpose
“Transition in Progress” is the only choice when “MaestroGPO” is the
device type.
Trigger Type
“Level” is the only choice when “MaestroGPO” is the device type. When a
transition begins, the GPIO contact will go to the state selected in the
Trigger Sense column (described below).
Trigger Duration
This column is not used in this application.
