394 MAESTRO — Installation and Service Manual
Section 14 — Maestro Content Manager Service Configuration
Connecting to the Content Manager Server
You will need to connect to the Content Manager server in order to con-
figure it. The needed information is located in the Server Information tab’s
area.
Follow these steps to connect to the Content Manager server:
1. Click the Server Information tab, which is located at the top of the right-
hand panel of the application. The Server Information area will then
appear.
2. Select the preferred server from the server drop-down list if it is not
already selected.
3. Click the Connect button ( Figure 288 ).

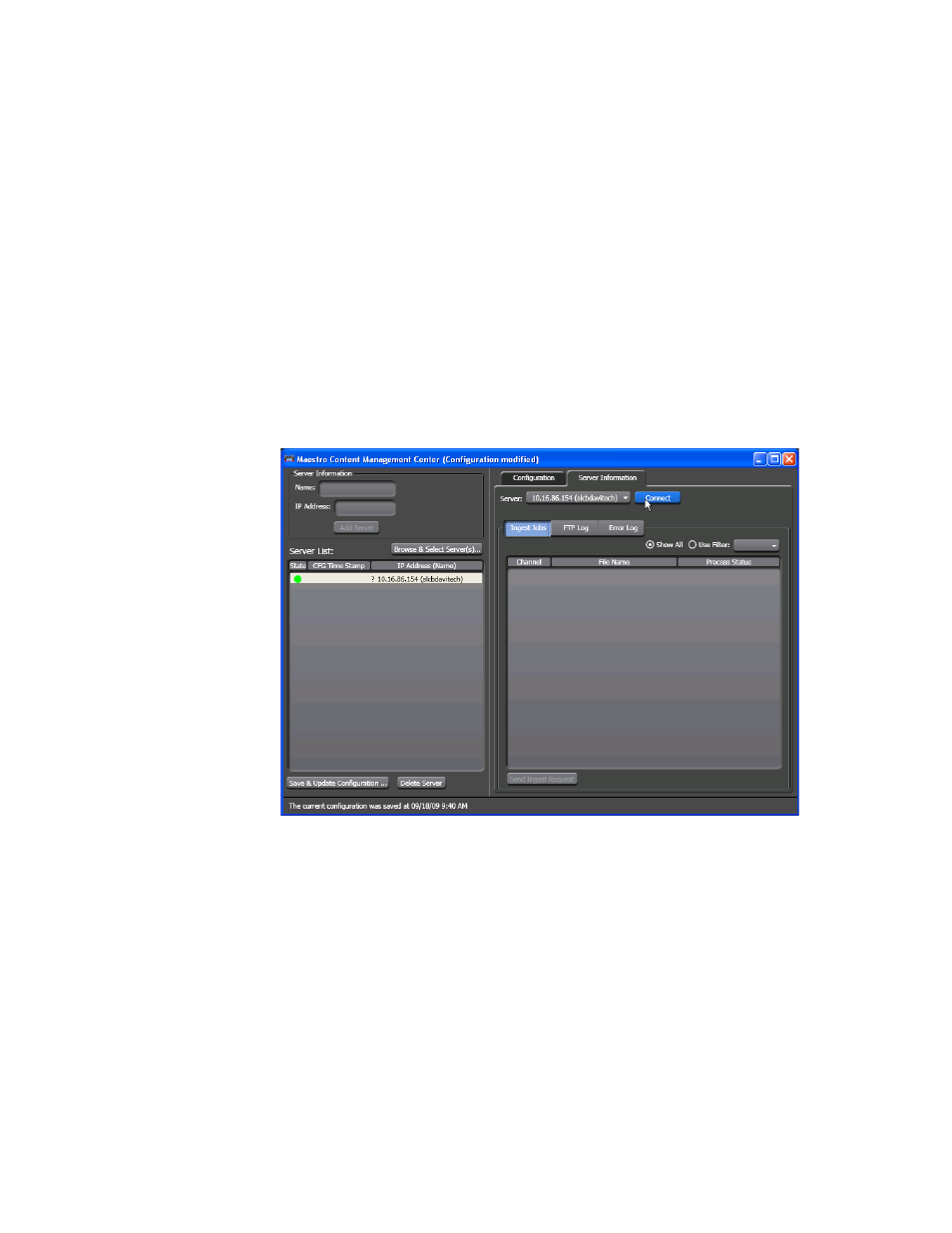

Figure 288. The Server Information Tab’s Area
When the server is connected, the phrase “Connected to
(server name)” will appear under the Server: drop-down list (
Figure 289 on
page 395 ).
