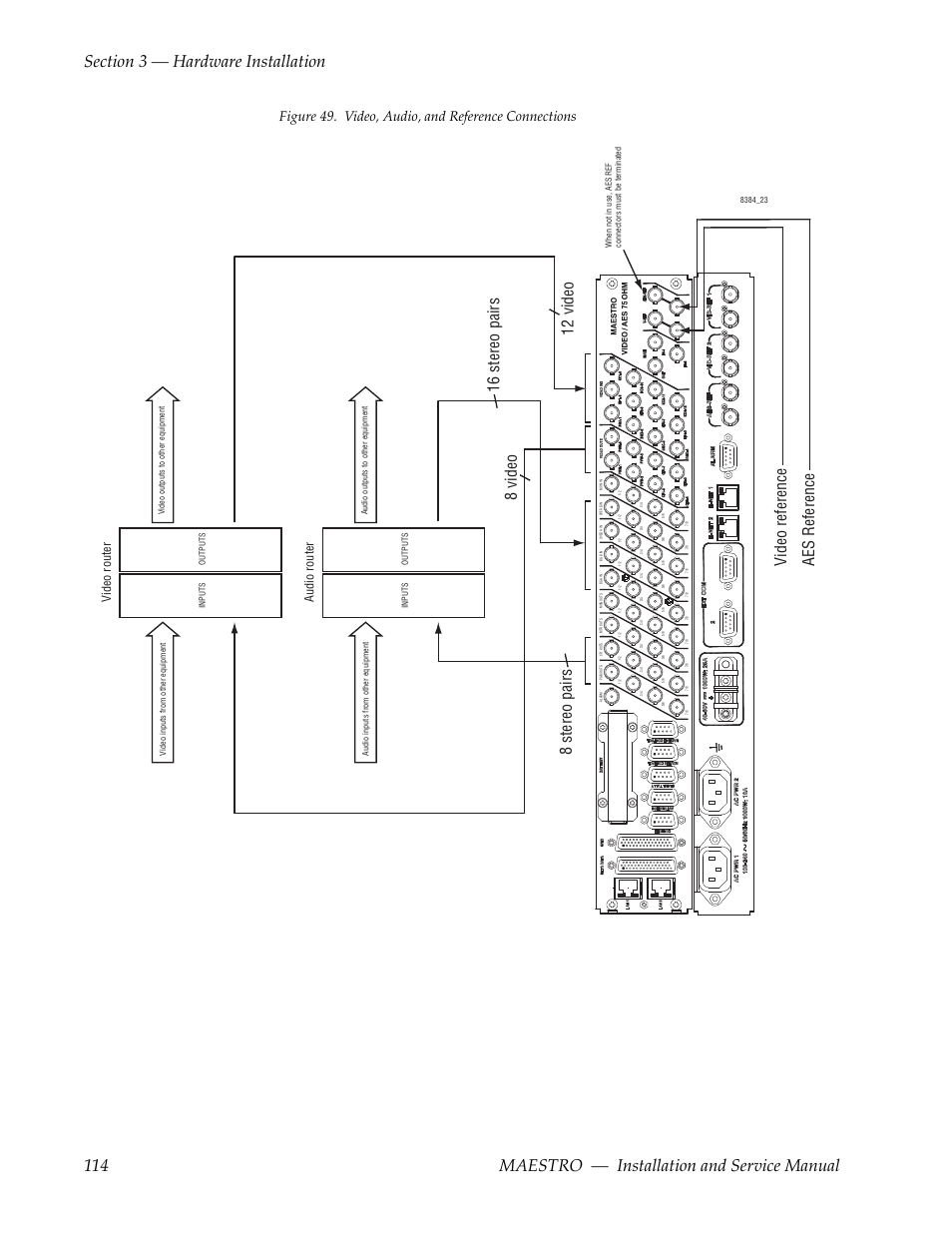

8stereo pairs, Figure 49. video, audio, and reference connections, Video router – Grass Valley Maestro Master Control Installation v.2.4.0 User Manual
Page 114: Audio router
