Chapter 1 Start Up

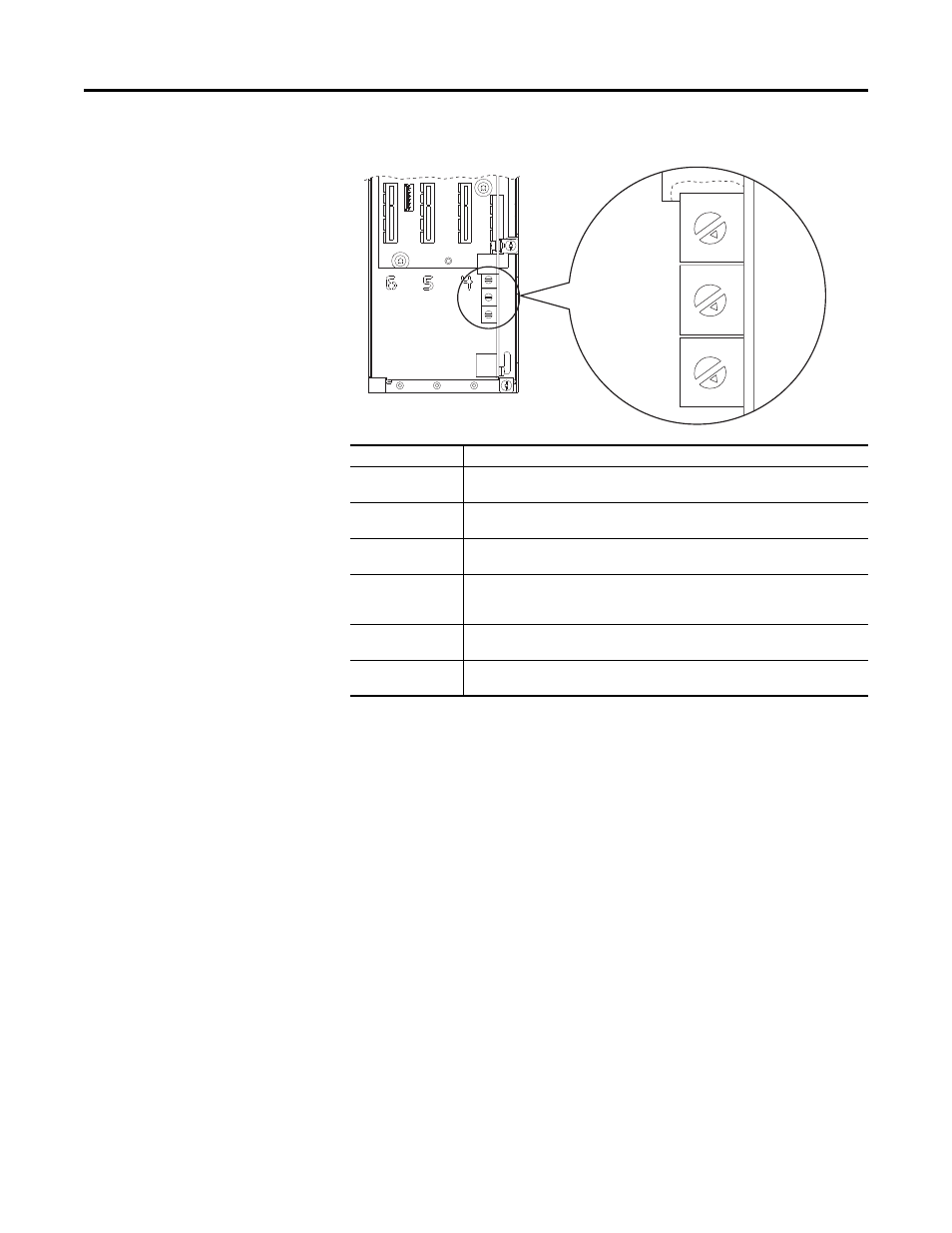

Figure 2 - Setting the IP Address Switches
Possible Settings Description
000 Adapter will use, depending on P36 [BOOTP], the BOOTP setting or the adapter parameter
settings for the IP address.
001…254 Adapter will use the rotary switch settings for the IP address (192.168.1.xxx, where xxx =
rotary switch settings).
255…887 Adapter will use, depending on P36 [BOOTP], the BOOTP setting or the adapter parameter
settings for the IP address.
888 Resets the adapter IP address function to factory defaults. Thereafter, the drive must be
powered down, the switches set to a setting other than 888, and then the drive must be
powered up again to accept the new address.
889…998 Adapter will use, depending on P36 [BOOTP], the BOOTP setting or the adapter parameter
settings for the IP address.
999
(default settings) Disables the rotary switches. Adapter will use, depending on P36 [BOOTP], the BOOTP
setting or the adapter parameter settings for the IP address.
0
5
4
9
3
8
2
7
1
6
0
5
4
9
3
8
2
7
1
6
0
5
4
9
3
8
2
7
1
6
Ones
Position
Hundreds
Position
Tens Position
