Chapter 1
Start Up
❏
5.
The remainder of this procedure requires that a Human Interface Module
(HIM) is connected to DPI Port 1 or 2.

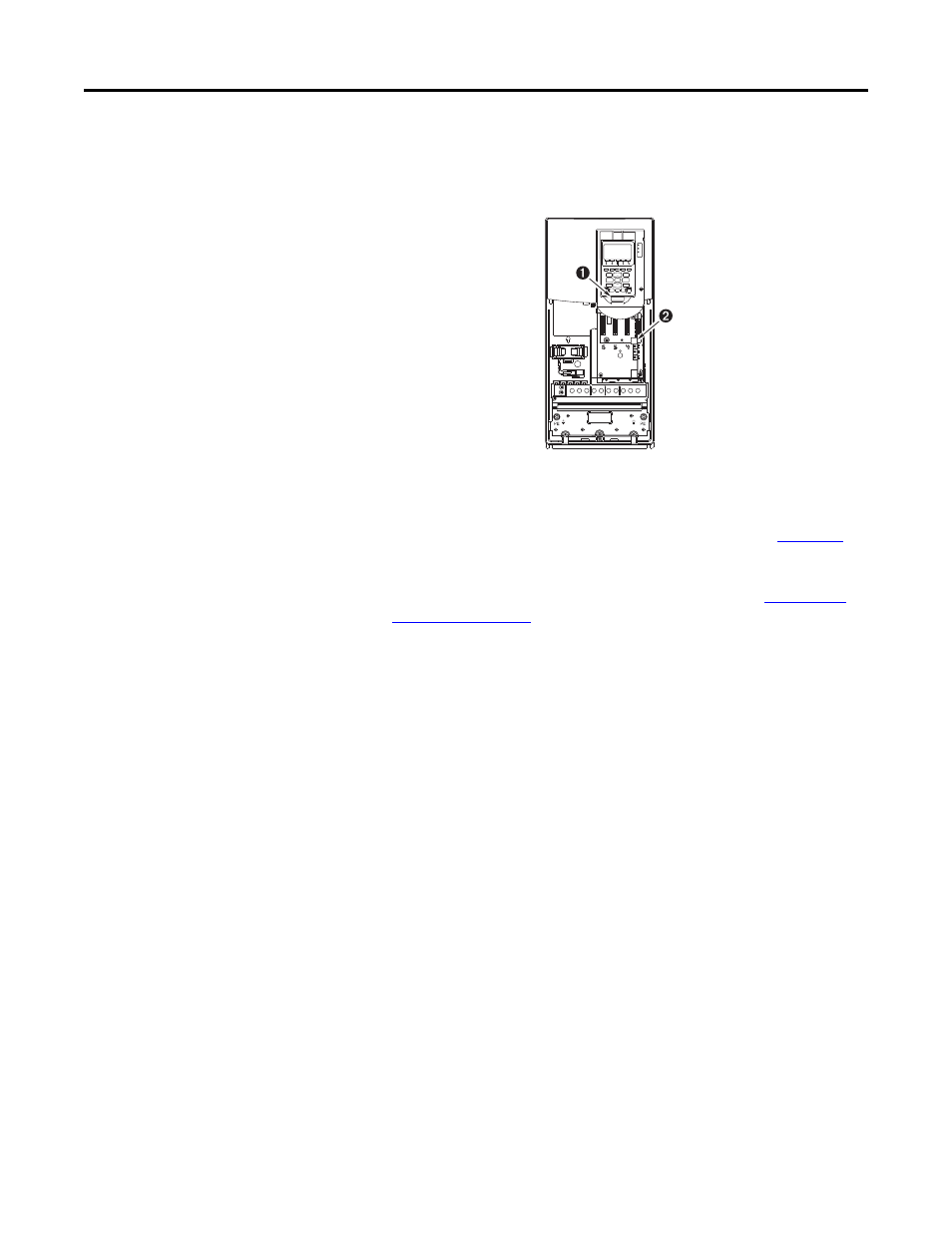

Figure 1 - DPI Ports ➊ and ➋
❏
6.
Apply AC power and control voltages to the drive.
If any digital inputs are configured to Stop – CF, Run, or Enable, verify
that signals are present or the drive will not start.
for
a list of potential digital input conflicts.
If the STS LED is not flashing green at this point, refer to
❏
7.
When prompted, select a display language. The Start-Up Screen will
automatically display for drives that have not been previously configured.
If the Start-Up screen is not displayed press the Enter key.
❏
8.
Press the Enter key to display the Start-Up Menu.
❏
9.
Use the Up/Down Arrow keys to highlight “2. Basic.”
❏
10.
Press the Enter key. Follow the menu using the Enter key which will step
you through the Start-Up routine.
The Start-Up routine asks simple questions and prompts you to input
required information.
