Page 996: 17 function library
17
Function library
17.2
System blocks
996
Lenze · 8400 StateLine · Reference manual · DMS 12.0 EN · 06/2014 · TD05/TD14
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

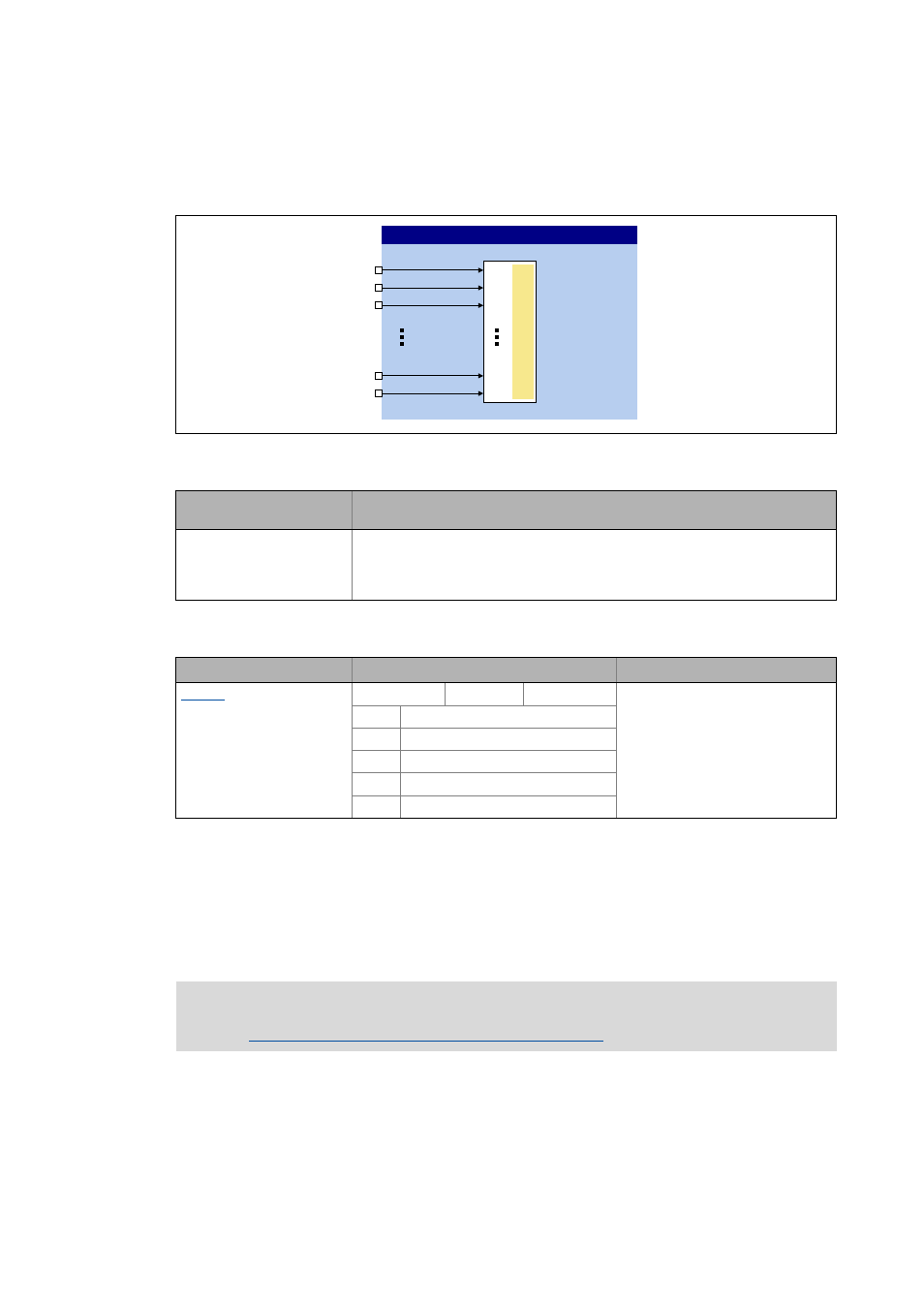

17.2.9
LS_DisFree_b
This system block displays 8 arbitrary digital signals of the application on a bit coded display code.
Inputs
Parameter
17.2.10
LS_DriveInterface
Interface to internal device control.
Identifier
Data type
Information/possible settings
bDis1 ... bDis8
BOOL
From version 11.00.00 onwards:
bC480_B0 ... bC480_B7
Inputs for arbitrary digital signals of the application
Note:
From version 11.00.00
the inputs are named according to the display
parameter for an easier allocation.
Parameter
Possible settings
Info
0x0000
0xFFFF Display of the digital signals as
hexadecimal values which are
applied at the bDis1 ... bDis8 inputs
Bit 0 Signal level at the bDis1 input
Bit 1 Signal level at the bDis2 input
Bit 2 Signal level at the bDis3 input
... ...
Bit 7 Signal level at the bDis8 input
E'LV
E'LV
E'LV
E'LV
E'LV
&
%LW
%LW
%LW
%LW
%LW
/6B'LV)UHHBE
For a detailed description see main chapter "Device control (DCTRL)":
Internal interfaces | "LS_DriveInterface" system block
