3.8.4
Parameterise application
The application parameters can be found on the right side of the Application parameter tab:

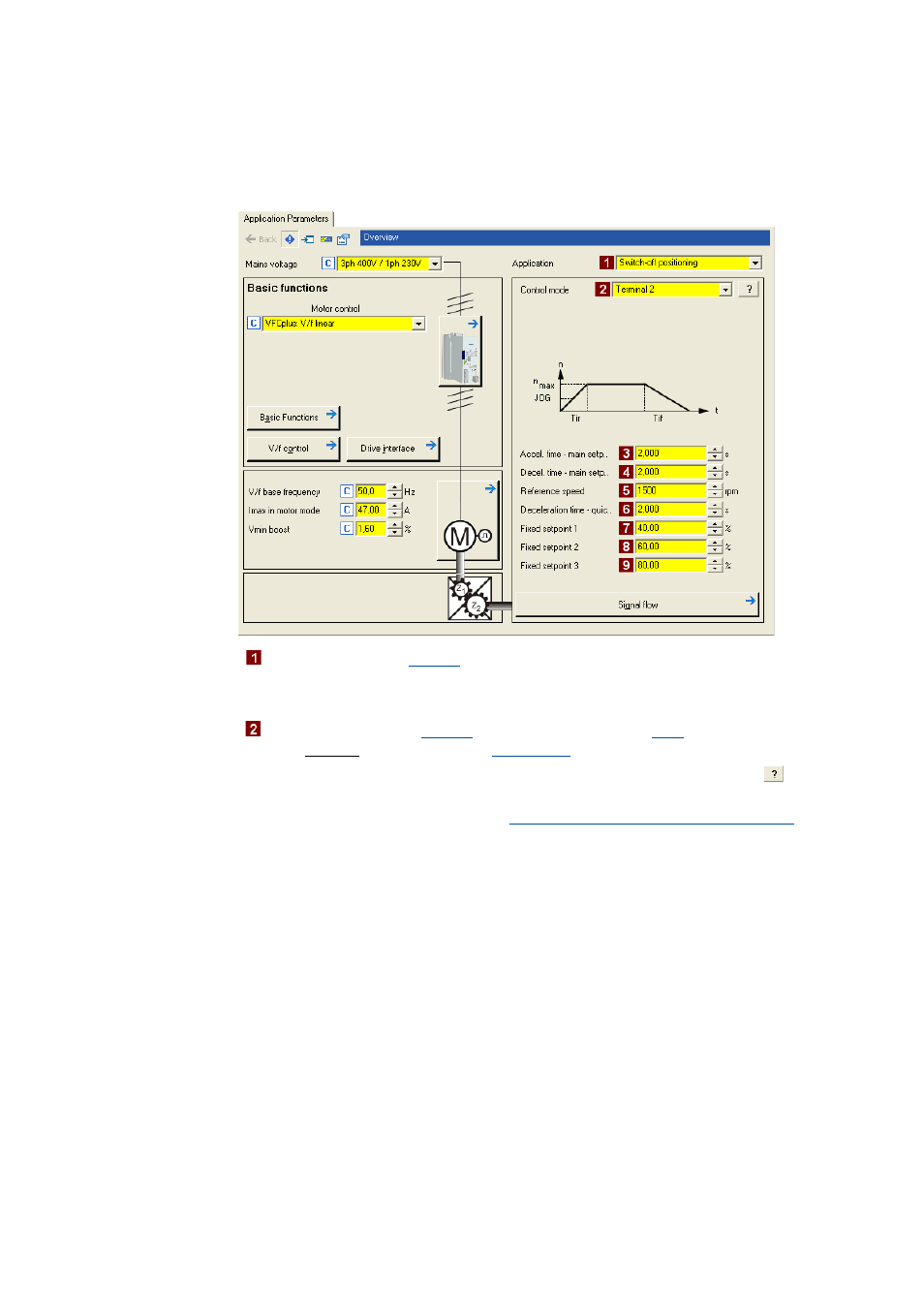

1. In the Application list field (
), select the "switch-off positioning".
After the "Switch-off positioning" application is selected, the contents of the tab change, e.g.
the Process controller and Motor potentiometer buttons are not shown any more.
2. In the Control mode list field (
) and in case of illustration
[3-2]
, for the shown switch-
off positioning without pre-switch off the "
" control mode must be selected.
• The corresponding wiring diagram is displayed in a pop-up window if you click the
button
right to the list field.
• For a detailed description, see the chapter "
Terminal assignment of the control modes
".
