AT-UWC WLAN Controller Web GUI User’s Guide
366
WDS Link Configuration
From the WDS Link Configuration page, you can view a list of link
combinations of two access points and add a new link combination.
Viewing Link
Combinations
and Adding a
New Link
To view AP members that belong to a WDS group and add a new AP
member, do the following:
1. From the Navigation pane, go to WLAN > WDS Configuration > Link
Configuration.
The WDS Link Configuration page is displayed as shown in
Figure 176.

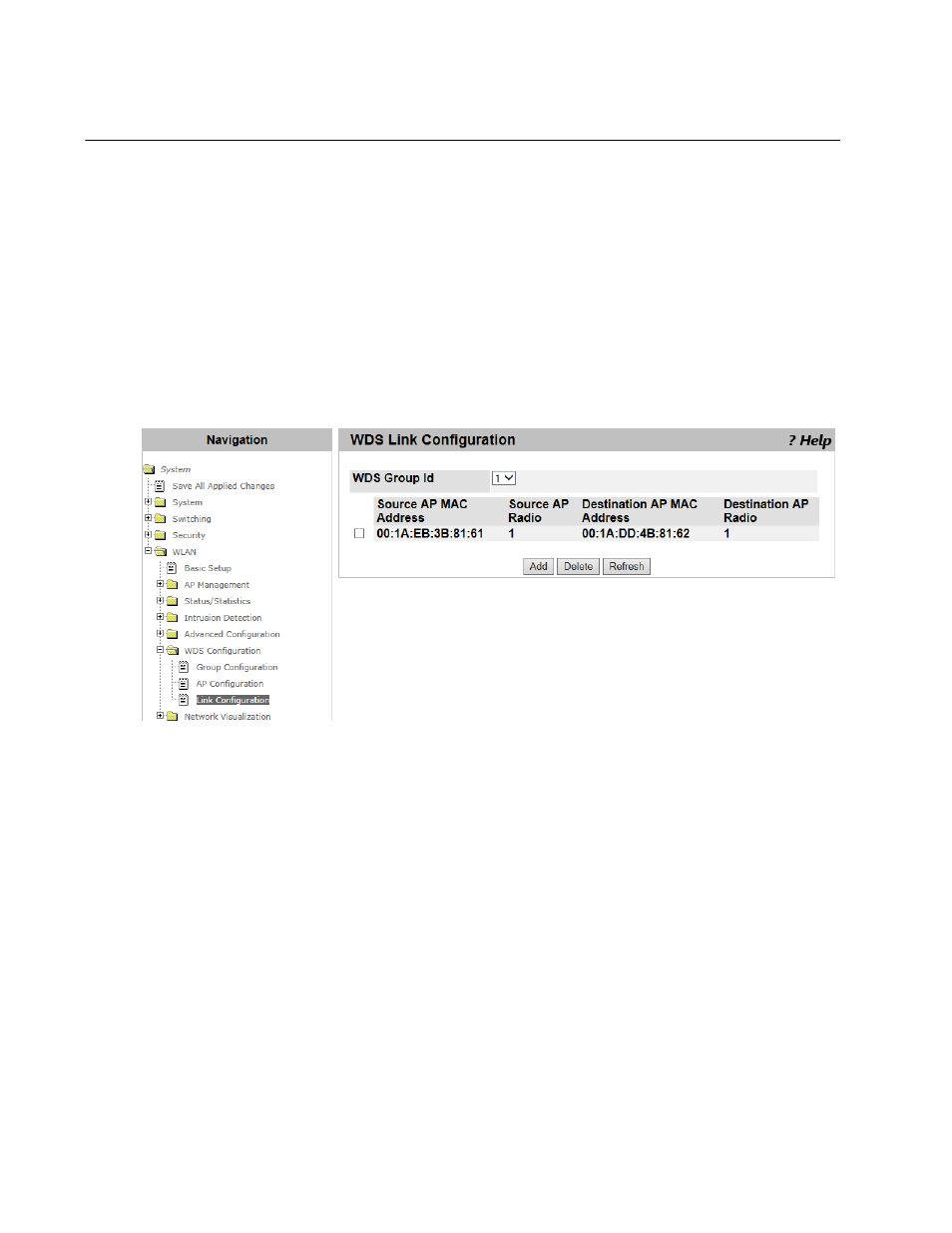

Figure 176. WDS Link Configuration Page
2. Select a WDS group ID to view the link combinations from the select
list.
A list of link combinations that belong to the selected WDS group is
displayed.
3. Click Add to add a new link.
Another WDS Link Configuration page is displayed as shown in Figure
177 on page 367.
