3. Observe the fields described in Table 111.
4. If you want to refresh the display, click Refresh.
Viewing WDS
Link Status
To view the link status in the WDS group, do the following:
1. From the Navigation pane, go to WLAN > Status/Statistics > WDS
Managed APs and click the WDS Link Status tab.
The WDS Link Status page is displayed as shown in Figure 137.

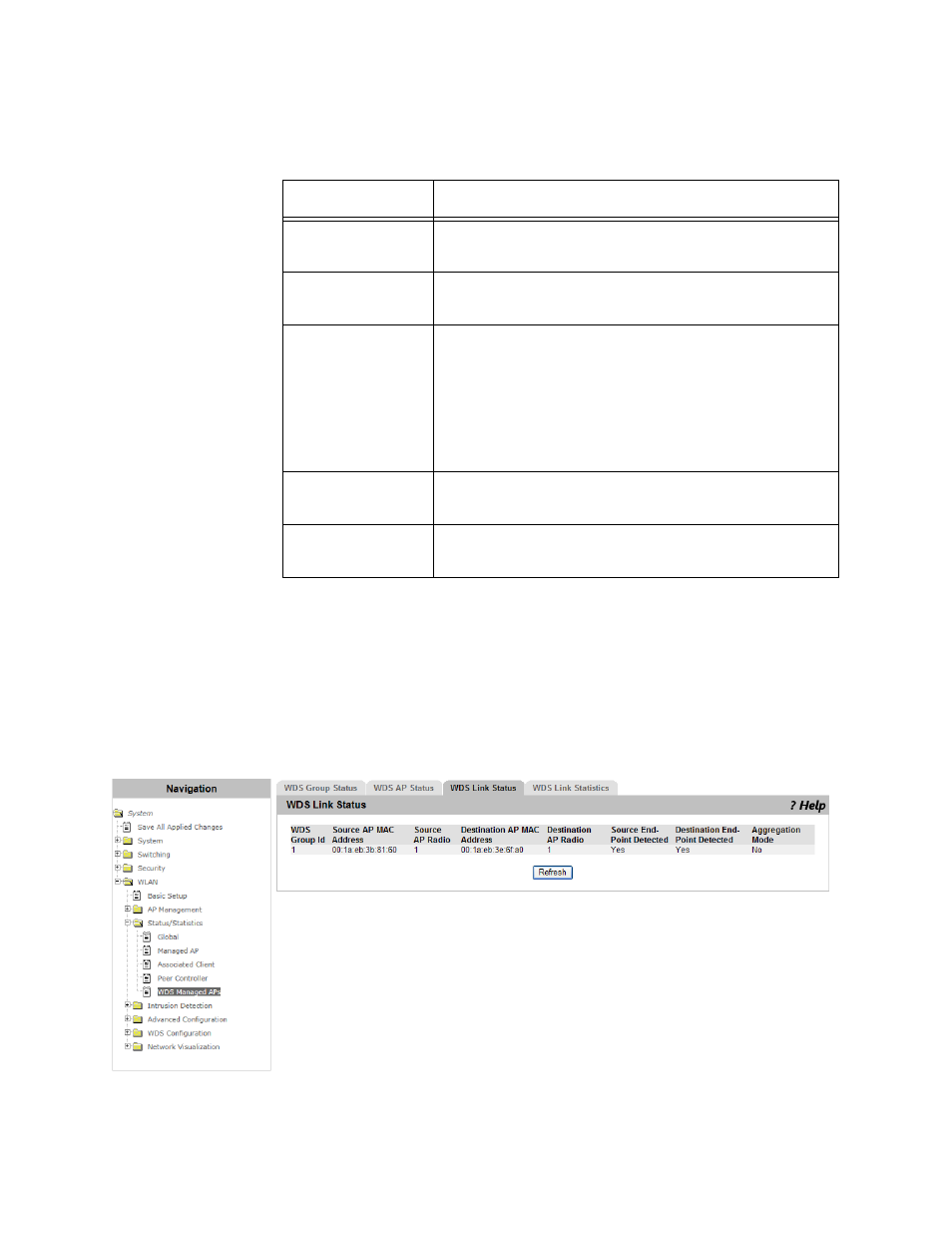

Figure 137. WDS Link Status Page
Table 111. WDS AP Status
Field Description
AP MAC
Address Displays the MAC address of the access point.
AP Connection
Status Displays whether the access point is connected to
the WLAN Controller or not.
Satellite Mode Displays the mode of the access point. The options
are:
 Satellite
 Wired - Root access point
 None - No WDS connection
Ethernet Port
Mode Displays the Ethernet port mode. This field always
shows Enabled.
Ethernet Port
Link State Displays the link state of the Ethernet port: Up or
Down.
