3. If you want to refresh the display, click Refresh.
Viewing WDS AP
Status
To view the status of the access point in the WDS group, do the following:
1. From the Navigation pane, go to WLAN > Status/Statistics > WDS
Managed APs and click the WDS AP Status tab.
The WDS AP Status page is displayed as shown in Figure 136.

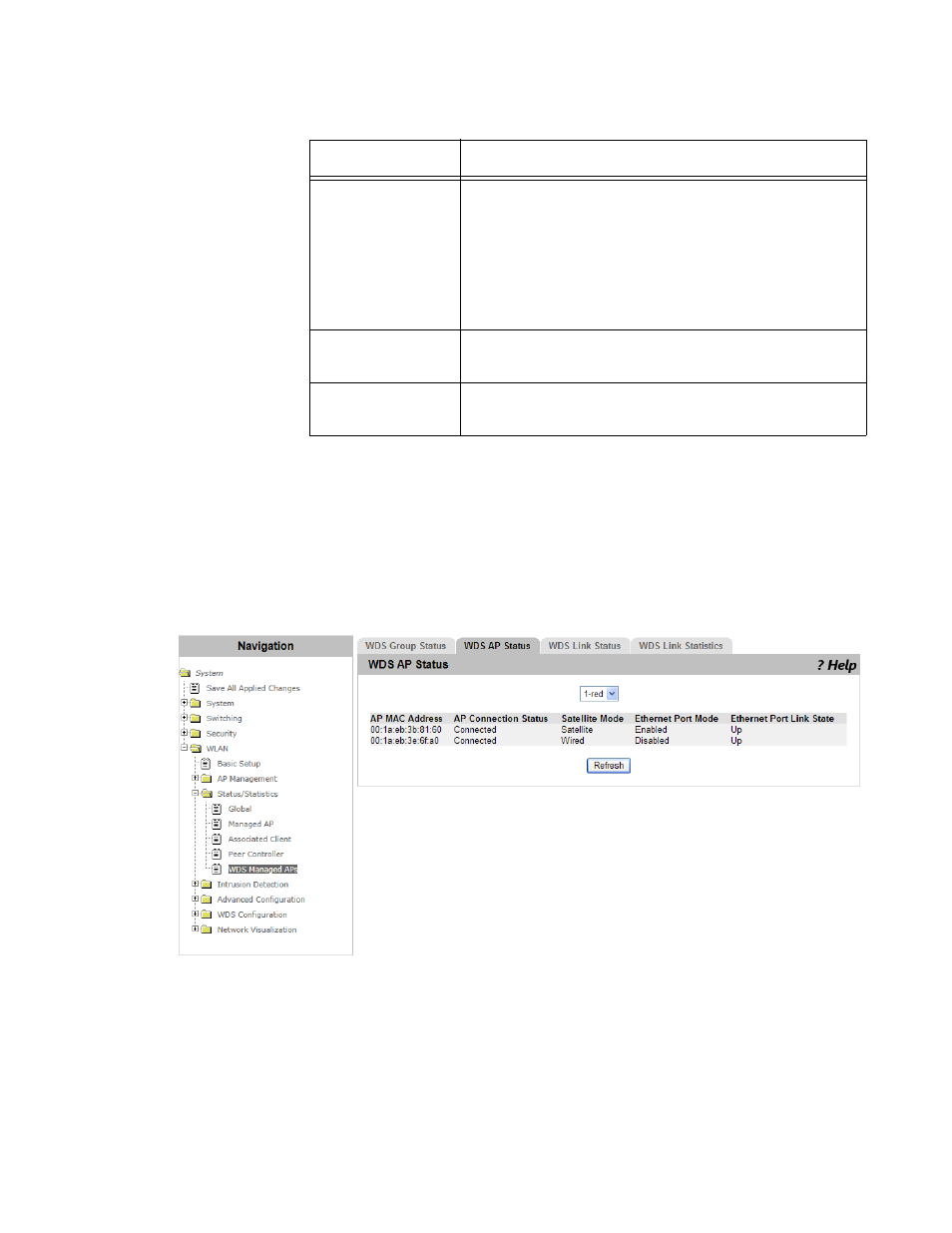

Figure 136. WDS AP Status Page
2. Select the group ID and group name from the select list.
To show all the access points in all the WDS groups, select All from
the select list.
Connected
Satellite AP
Count Displays the number of satellite access points in
the WDS group that are managed by the WLAN
Controller.
The satellite access point is an access point
connected to the WLAN Controller through the
WDS connection.
Configured WDS
Link Count Displays the number of WDS connections that are
configured in the WDS group.
Deleted WDS
Links Count Displays the number of WDS connections that are
established in the WDS group.
Table 110. WDS Group Status (Continued)
Field Description
