SERVO SELECTION AND DATA SHEETS
5.6.3 Connector cont.
460

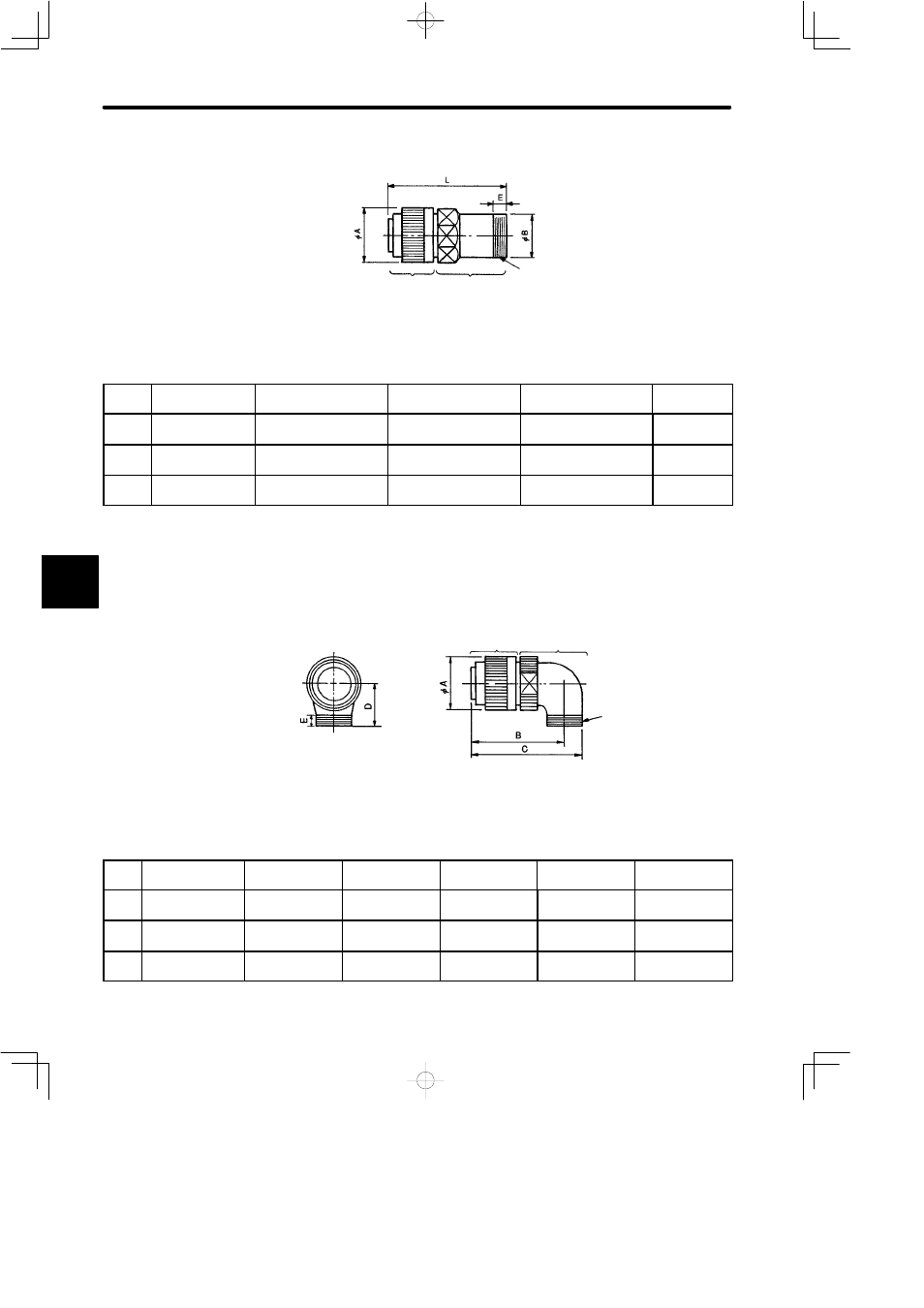

End Bell (Straight): JL04-jjEB
Plug End Bell
Screw V
Dimensions are mm (inches)
Shell
Size
Screw V ØA ØB L E
20 1 3/16- 18UNEF-2A 37.3¦0.8
(1.47¦0.0315)
30.05¦0.2
(1.18¦0.0079)
67.9¦0.8
(2.67¦0.0315)
8 (032)
22 1 3/16- 18UNEF-2A 40.5¦0.8
(1.59)(0.0315)
30.05¦0.2
(1.18)(0.0079)
67.63¦0.8
(2.66¦0.0315)
8 (0.32)
24 1 7/16- 18UNEF-2A 43.7¦0.8
(1.72¦0.0315)
36.4¦0.2
(1.43¦0.0079)
71¦0.8
(2.80¦0.0315)
8 (0.32)
Made by Japan Aviation Electronics Industry, Ltd.
End Bell (L-shaped): JL04-jjEBL
End Bell Plug
Screw V
Dimensions are mm (inches)
Shell
Size
Screw V ØA B C D E
20 1 3/16- 18UNEF-2A 37.3¦0.8
(1.47¦0.0315)
60.5¦0.8
(2.38¦0.0315)
74.2¦0.8
(2.92¦0.0315)
32¦0.8
(1.26¦0.0315)
10¦0.5
(0.39¦0.0197)
22 1 3/16- 18UNEF-2A 40.5¦0.8
(1.59¦0.0315)
60.23¦0.8
(2.37¦0.0315)
73.93¦0.8
(2.91¦0.0315)
32¦0.8
(1.26¦0.0315)
10¦0.5
(0.39¦0.0197)
24 1 7/16- 18UNEF-2A 43.7¦0.8
(1.72¦0.0315)
65¦0.8
(2.56¦0.0315)
82¦0.8
(3.23¦0.0315)
38¦0.8
(1.50¦0.0315)
10¦0.5
(0.39¦0.0197)
5
