3.8 Special Wiring

173

J

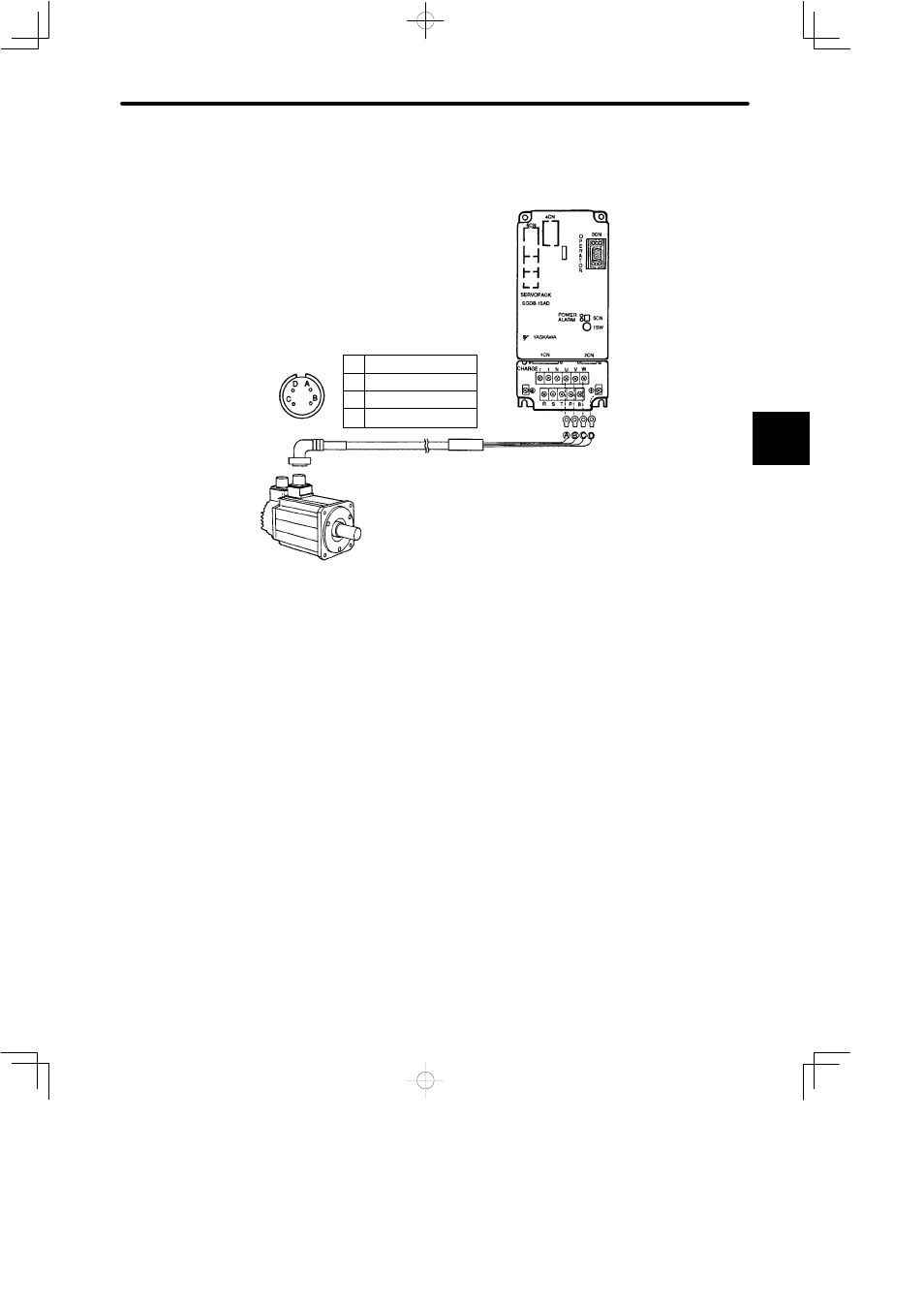

Connectors and Terminals for Standard-type Motor without Brake

[SGMG, SGMD and SGMS series]

A

Phase U

B

Phase V

C

Phase W

D

Frame ground (FG)

For plug and cable clamp types, refer to

Section 5.6.3 Connector.

3
