Rockwell Automation FactoryTalk View Site Edition Users Guide User Manual
Page 630
F
ACTORY
T
ALK
V
IEW
S
ITE
E
DITION
U
SER
’
S
G
UIDE
24–2
• •
•
•
•

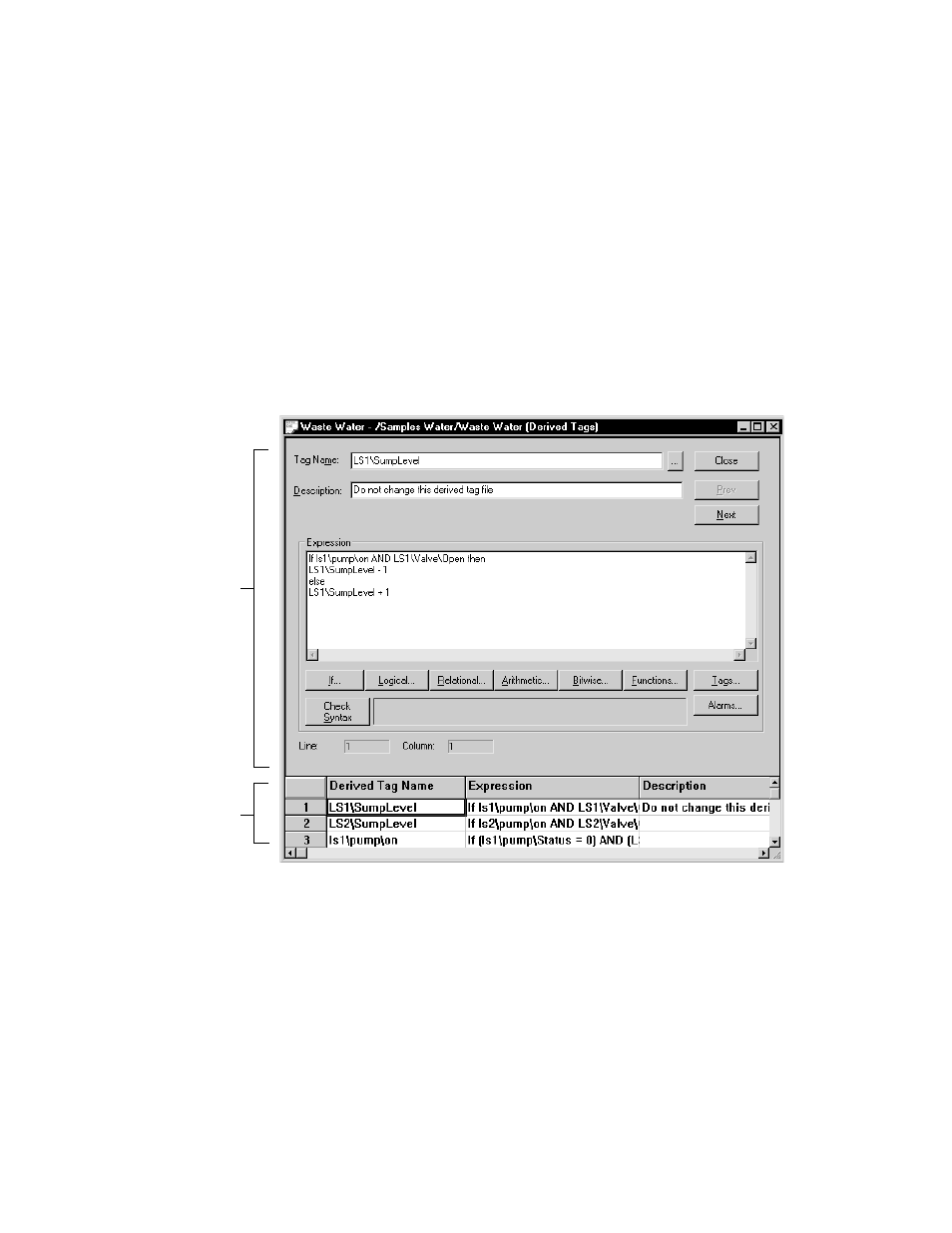

To open the Derived Tags editor
1. In FactoryTalk View Studio, in the Explorer window, open the Logic and Control
folder.
2. Right-click the Derived Tags icon, and then select New.
You can also open the Derived Tags editor by dragging its icon into the FactoryTalk
View Studio workspace, or by double-clicking an existing Derived Tags component.
Accept and Discard buttons
When you enter information in the Derived Tags editor, the Prev and Next buttons
change to Accept and Discard buttons.
Click Accept to save derived tags information. Click Discard to cancel changes to the
derived tags file.
Form
Spreadsheet
