23 • S ETTING UP TRENDS
23–5
•
•
•
• •
23
•
Pla
ceho
lde
r

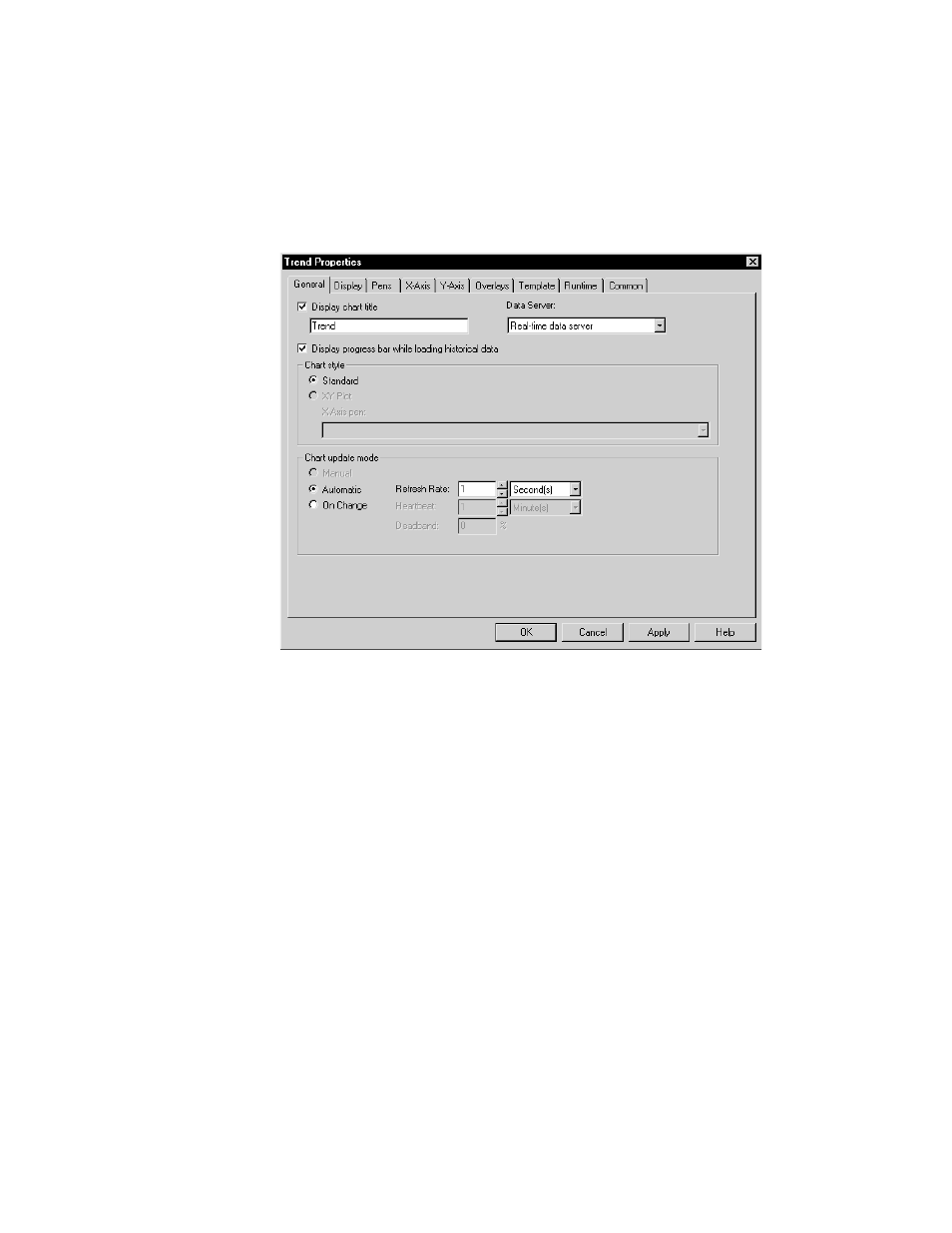

For details about options in the Trend Properties dialog box, click Help.
Testing a trend
In FactoryTalk View Studio, in the Graphics editor, you can use Test Display mode to test
a trend while you are setting it up.
If you have set up communications and there is data for the tags, the pens will plot values.
When you are finished testing, switch back to Edit Display mode to continue setting up
trend properties.
To switch between Test and Edit Display modes
 In the Graphics editor, from the View menu, select Test Display or Edit Display.
You can also click the Test Display or Edit Display buttons on the toolbar.
The parts of a trend
There are two trend chart styles—the standard chart, and the XY Plot chart.
