12 • S ETTING UP F ACTORY T ALK ALARMS
12–7
•
•
•
• •
12
•
Pla
ceho
lde
r
For information about setting up alarm servers in a FactoryTalk View SE application, see:
 “Working with Rockwell Automation Device Servers” on page 12-18.
 “Working with Tag Alarm and Event Servers” on page 12-21.
Level alarms
A level alarm compares an analog value against predefined limits (also called thresholds)
and triggers an alarm when a limit is exceeded. For information about setting up tag-based
level alarms, see page 12-24.
Level alarm limits
When defining a level alarm, you can assign any of the following limits, with different
levels of severity:
 High High
 High
 Low
 Low Low
The High and High High alarm conditions monitor for a rising value, and the Low and
Low Low conditions monitor for a decreasing value.

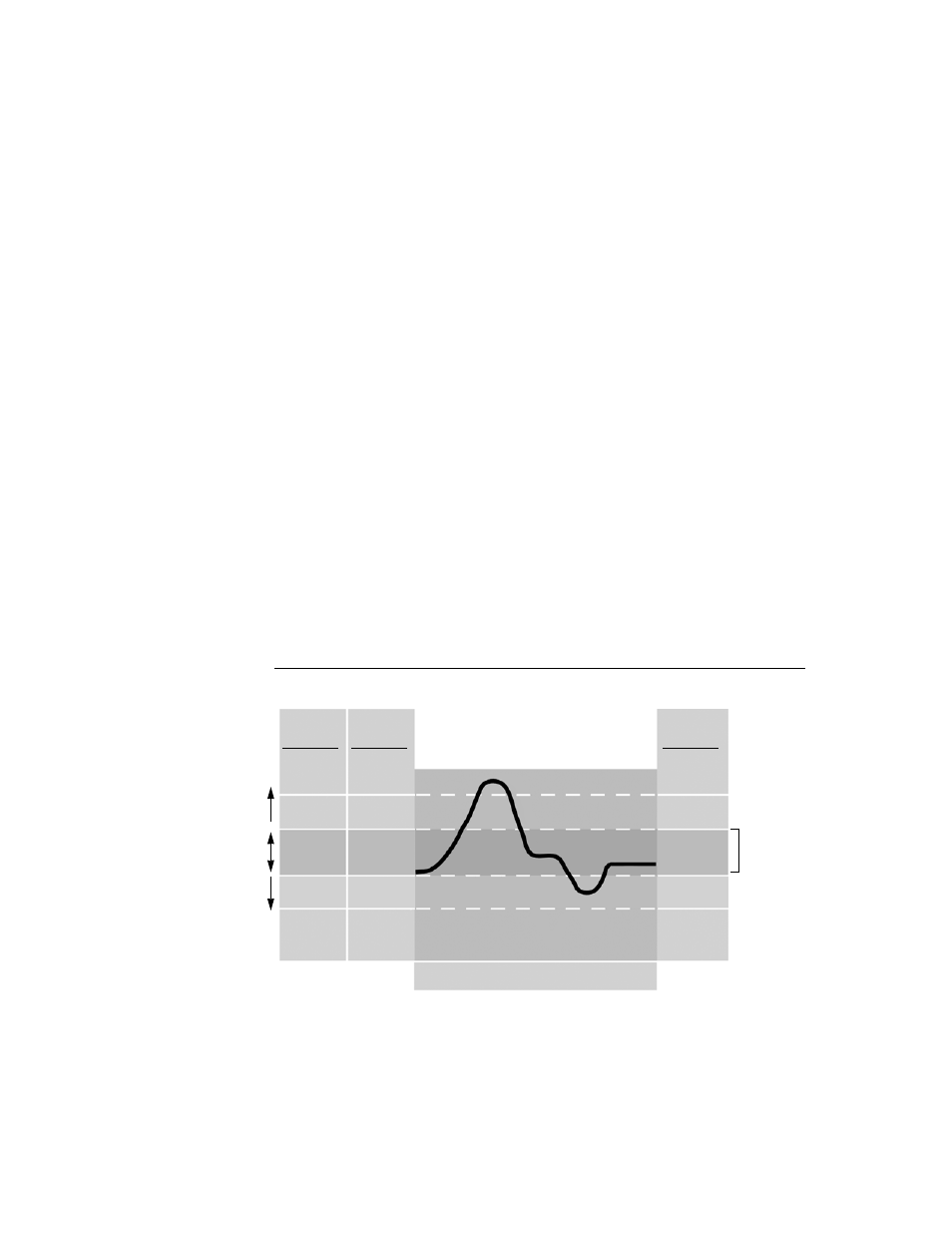

Example: Alarm limits
Safe zone
6000
4000
3000
1000
Limits Values Severity
Time
Increasing
Decreasing
High High
High
Low
Low Low
1000
750
500
250
X
X O
X O
O
