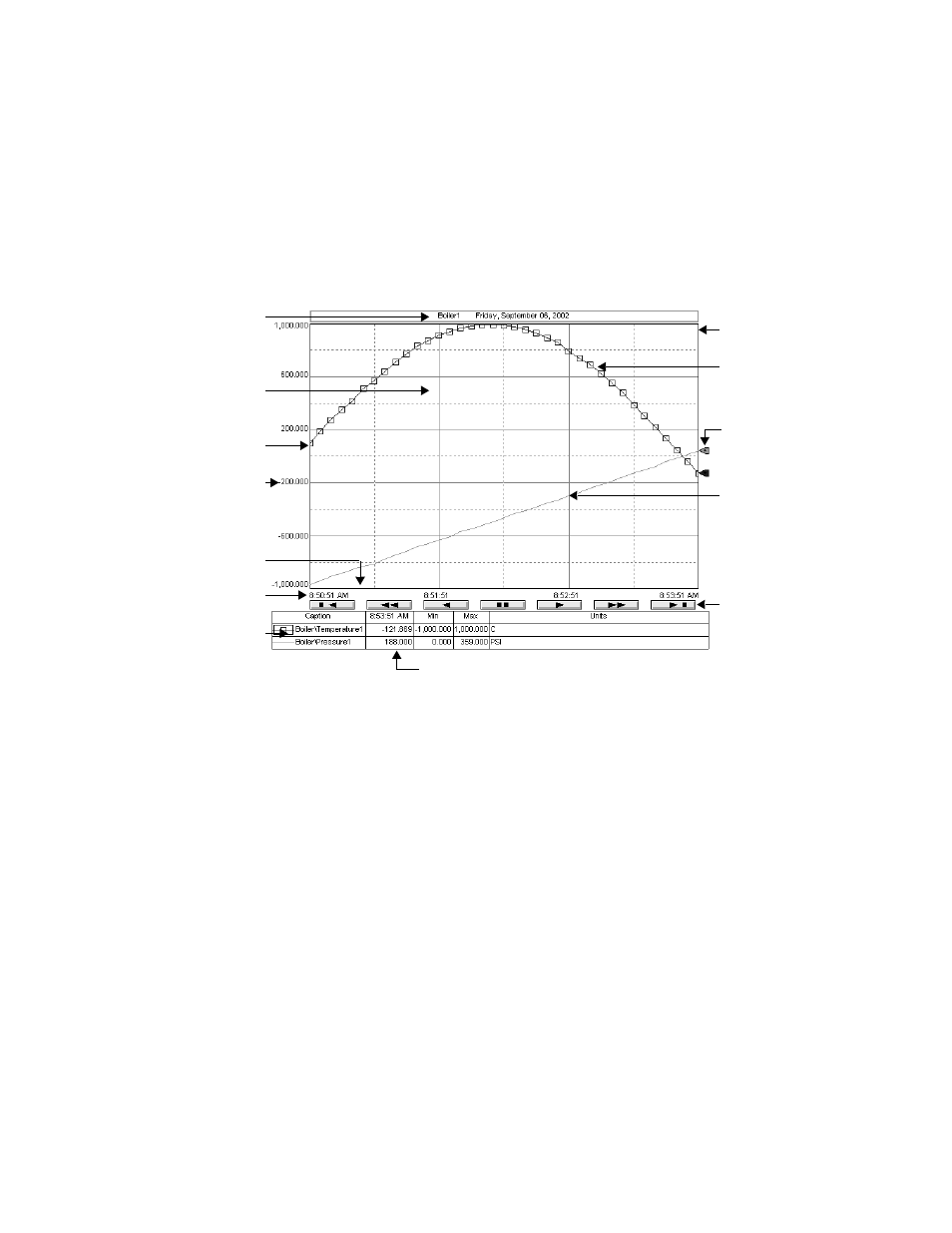

The following illustration shows the parts of a standard trend chart with two pens, and a
three-minute time span.
Chart
The chart contains the plotted trend data. The chart is bounded by the y-axis on the left,
and the x-axis at the bottom.
Plotted data is shown using pen lines, pen markers, and grid lines.
Chart title
The chart title is the name you give to the trend chart. Naming the trend is optional.
X-axis
The x-axis is the bottom edge of the chart. It is also known as the horizontal axis, or the
time axis.
Chart title
Chart
Y-axis
Y-axis legend
X-axis legend
Trend border
Pen with a
square symbol
pen marker
Pen icon
Pen without a
pen marker
Scrolling
mechanism
Current value legend is shown as a
column in the line legend.
Line legend
X-axis
