To highlight different types of objects in a display
1. In the Object Explorer, click Settings.
2. In the Highlight Settings dialog box, select boxes beside the items that you want
highlighted, and then click OK.
3. In the Object Explorer, select the check box, Highlighting on.
The objects are highlighted in red in the Object Explorer and in the graphic display.
Viewing object properties in the Property Panel
The Property Panel shows the properties of graphic objects and the values assigned to the
properties. It also shows the tags or expressions assigned to an object’s connections.
Use the Property Panel to modify the properties of graphic objects, and to assign tags and
expressions. You can select multiple objects, and then make changes to the common
properties of all of the objects at the same time.

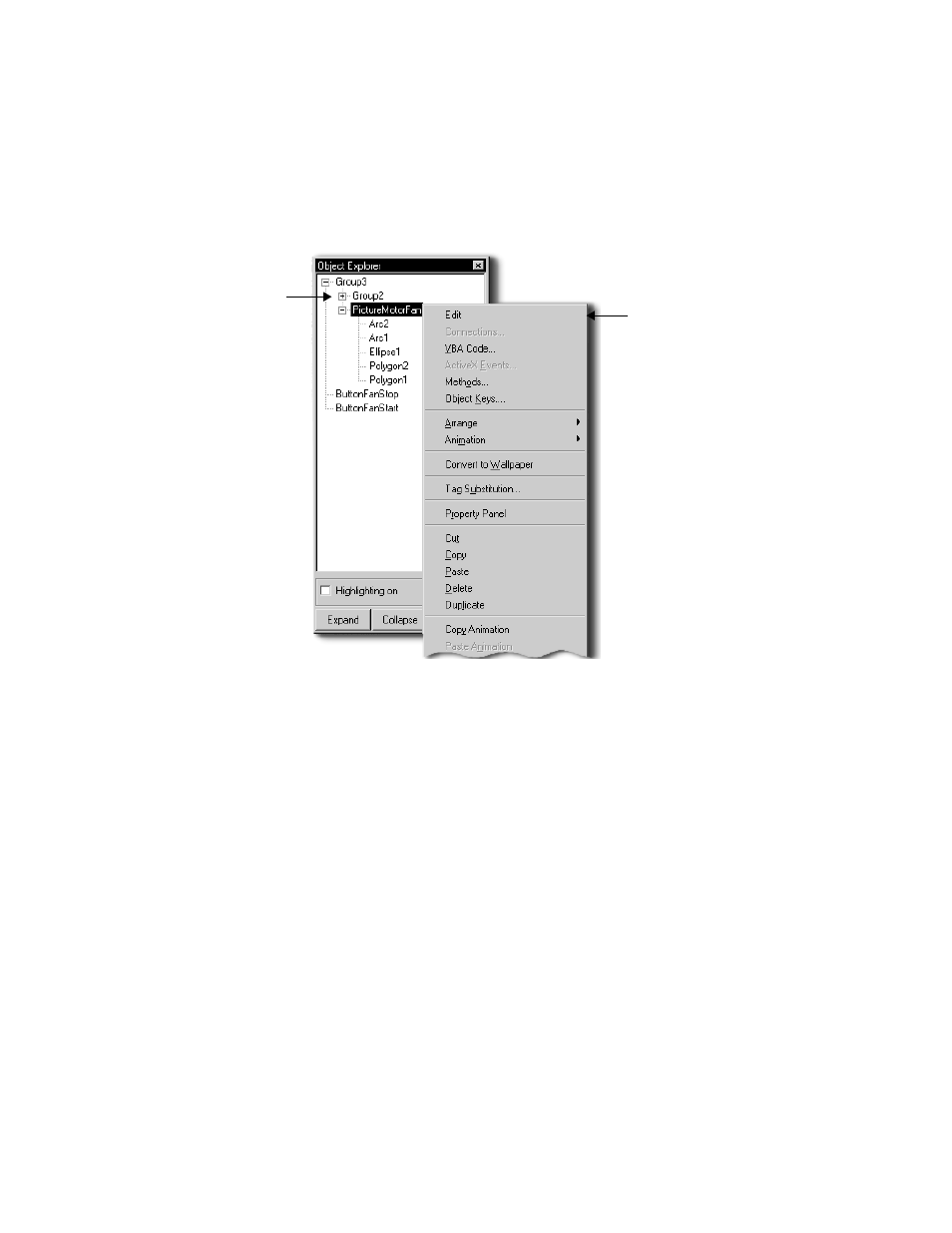

Click the + icon to view
the objects and grouped
objects within a group.
When you right-click an
object in the Object
Explorer, the object’s
shortcut menu opens,
as it does when you right-
click the object in the
graphic display.
