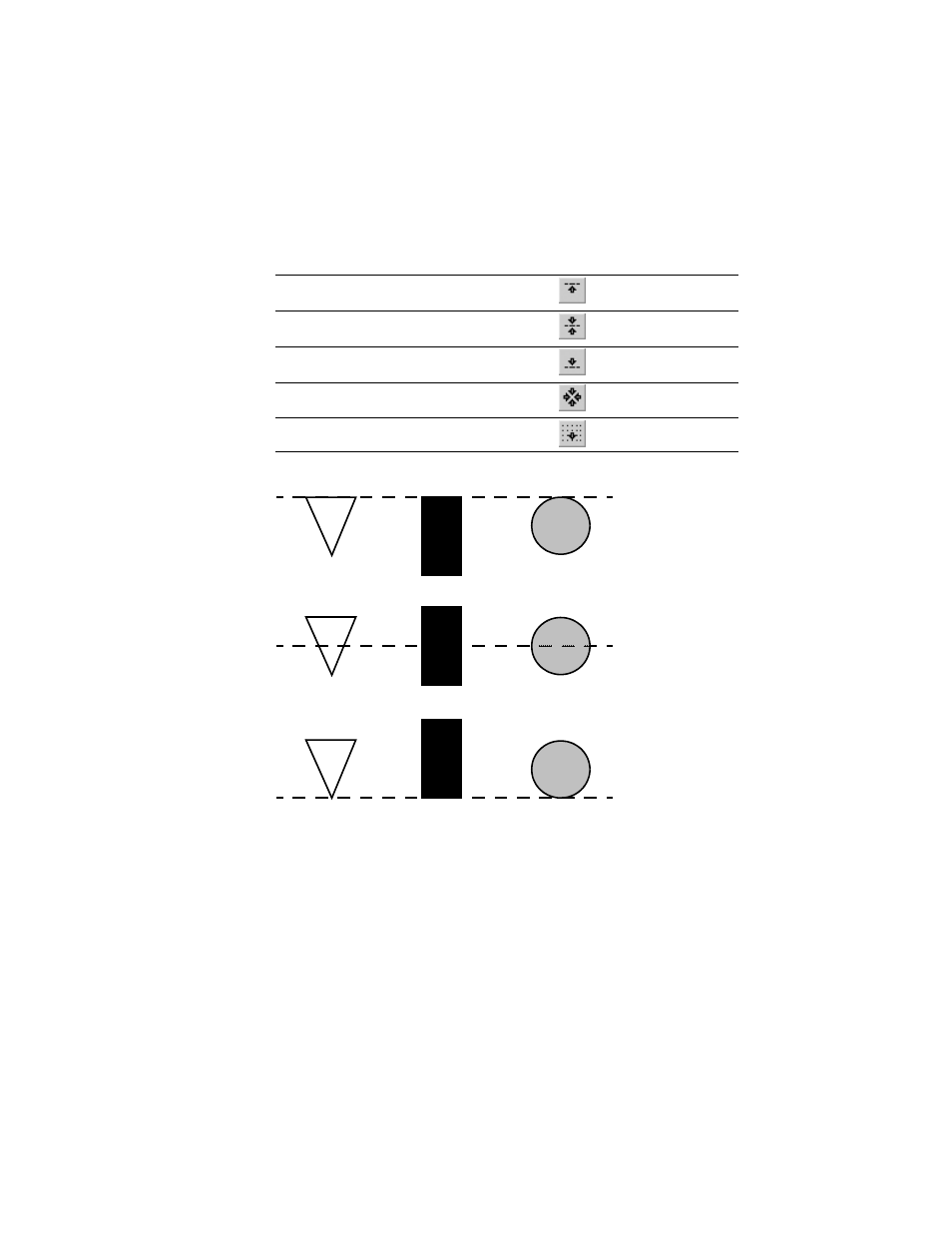

Aligning objects top, middle, and bottom
Align the selected object (or objects) with the top-
most selected object.
Align Top
Align the selected object (or objects) with the
vertical center of the largest selected object.
Align Middle
Align the selected object (or objects) with the
bottom-most selected object.
Align Bottom
Align the selected object (or objects) with the
center of all selected objects.
Align Center Points
Align the selected object (or objects) with the grid.
Align to Grid
To do this
Click this button or menu item
Align top
Align middle
Align bottom
