To open the Y-Axis tab
1. Double-click the y-axis legend.
2. In the Y-Axis tab, make the desired changes, and then click OK.
To open the X-Axis tab
1. Double-click the x-axis legend.
2. In the X-Axis tab, make the desired changes, and then click OK.
To open the Pens tab
1. Double-click the line legend.
2. In the Pens tab, make the desired changes, and then click OK.
Scrolling the trend chart at run time

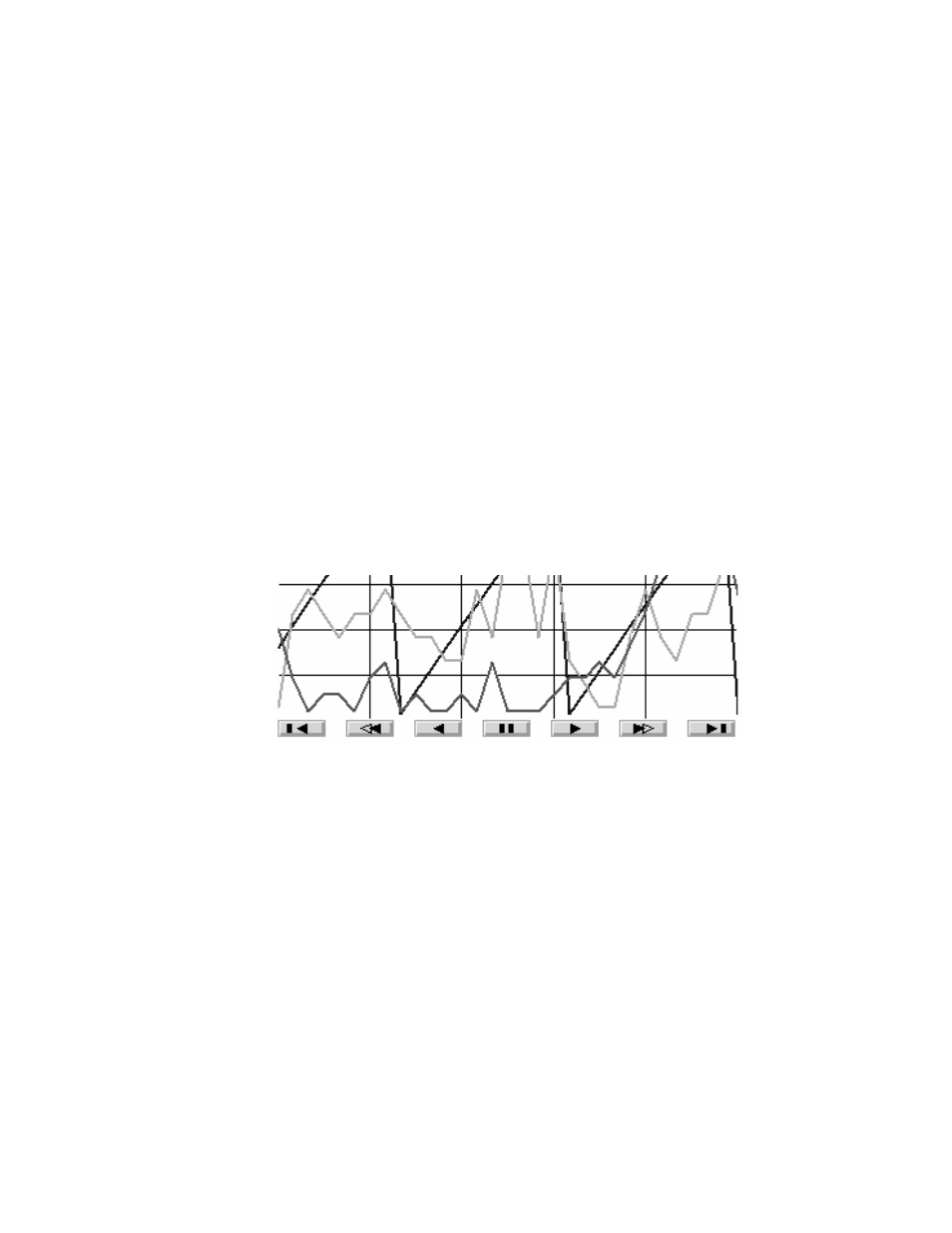

To view different areas of charted data, an operator can use the set of VCR-style buttons
included with a trend. The following illustration describes the function of each button.
To make the VCR-style buttons available at run time, in the Display tab of the Trend
Properties dialog box, select the check box, Display scrolling mechanism.
You can also use the buttons in the Trend graphic library. For information about the
library, see page 23-23.
Oldest
data Backward
1 time
span Backward
½ time
span Pause Forward
½ time
span Forward
1 time
span Most
recent
data
