Page 37
1
•
G
ETTING
STARTED
WITH
F
ACTORY
T
ALK
V
IEW
SE
1–11
•
•
•
• •
1 • Pl
aceh
ol
der

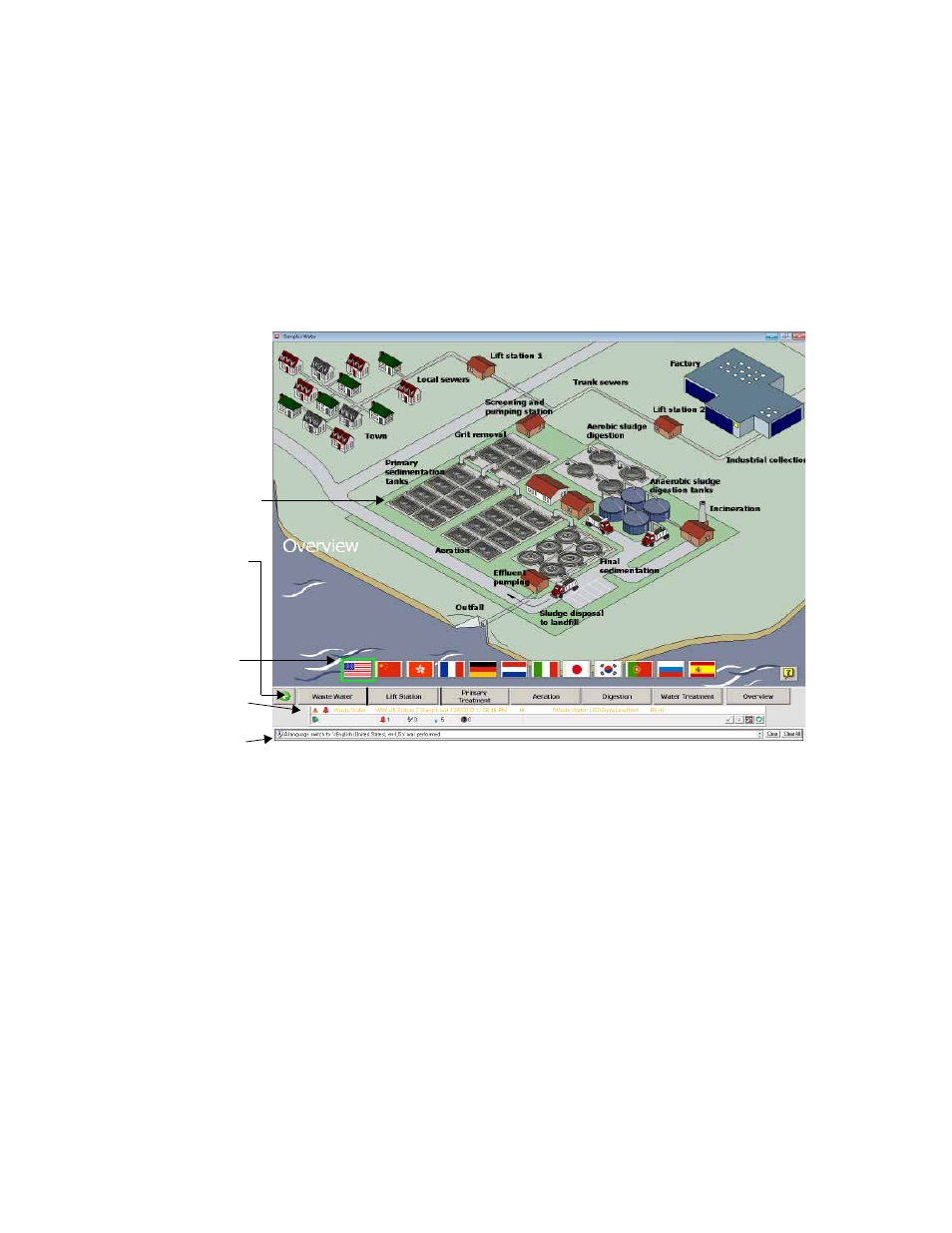

To run the Samples Water client
Select Start > All Programs > Rockwell Software > FactoryTalk View > Samples
Water.
Use the buttons and touch zones provided, to navigate through the Water Samples
application, view alarm summaries and trends, and switch between application languages.
Creating a new FactoryTalk View SE application
You can also create a simple, new application to exercise some of the development and
run-time features of FactoryTalk View SE. Following are some steps to get you started.
Step 1: Create the application
First, create the application itself, and then add at least one HMI server.
Navigate to other
displays in the
application using
touch zones...
Switch between
languages in the
application.
View Diagnostics
messages.
View FactoryTalk
alarms in a docked
alarm banner.
...and buttons on
the menu bar.
