17 • C REATING GRAPHIC OBJECTS
17–3
•
•
•
• •
17
•
Pla
ceho
lde
r

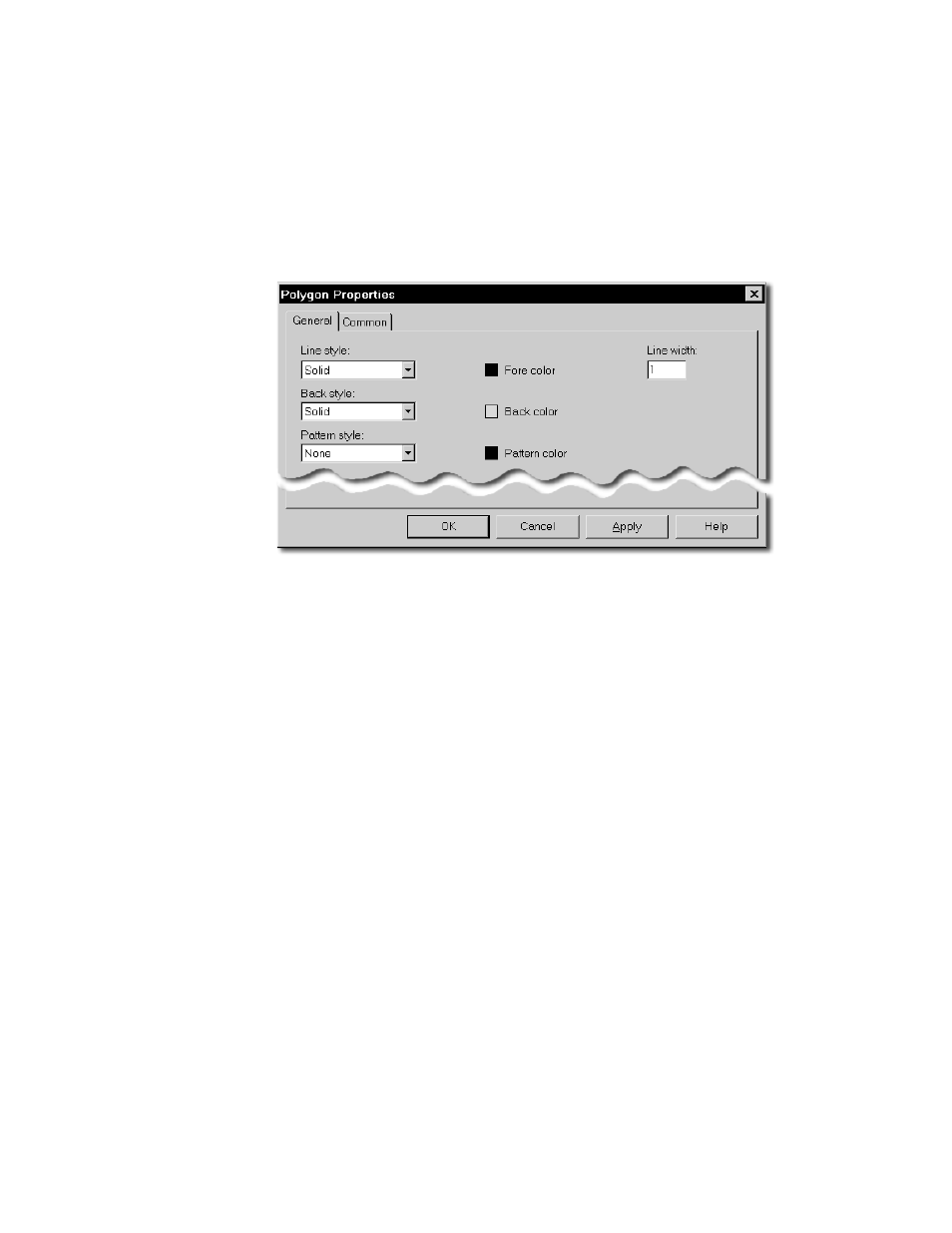

The following illustration shows the Properties dialog box for a polygon object.
In the Properties dialog box, the features of the object are organized in tabs. The number
of tabs and their contents depend on the type of object. For details about options in any
Properties dialog box, click Help.
Setting up properties common to all objects
There is a Common tab in the Properties dialog box for every FactoryTalk View graphic
object. Use the Common tab to set up these properties for the object:
 Height and width
 Top and left position
 Name
 Tooltip
 Visibility
For ActiveX objects, trends, and Alarm and Event objects, you can also set up these
properties:
 Focus highlight
 Pointer highlight
 Key navigation
 Tab index
