F ACTORY T ALK V IEW S ITE E DITION U SER ’ S G UIDE
16–42
• •
•
•
•
Specifying the display type
You can set up the following display types in a FactoryTalk View application:
Replace is the default display type. If you want the graphic display to replace other open
displays when it opens, use the Replace option. A display of Replace type closes displays
that it overlaps. You don’t need to run separate commands to close other open displays.
Overlay graphic displays will layer with other displays, overlapping some and being
overlapped by others as the focus changes between open displays. If the display doesn’t
need to replace other displays or appear on top at all times, use the Overlay option.

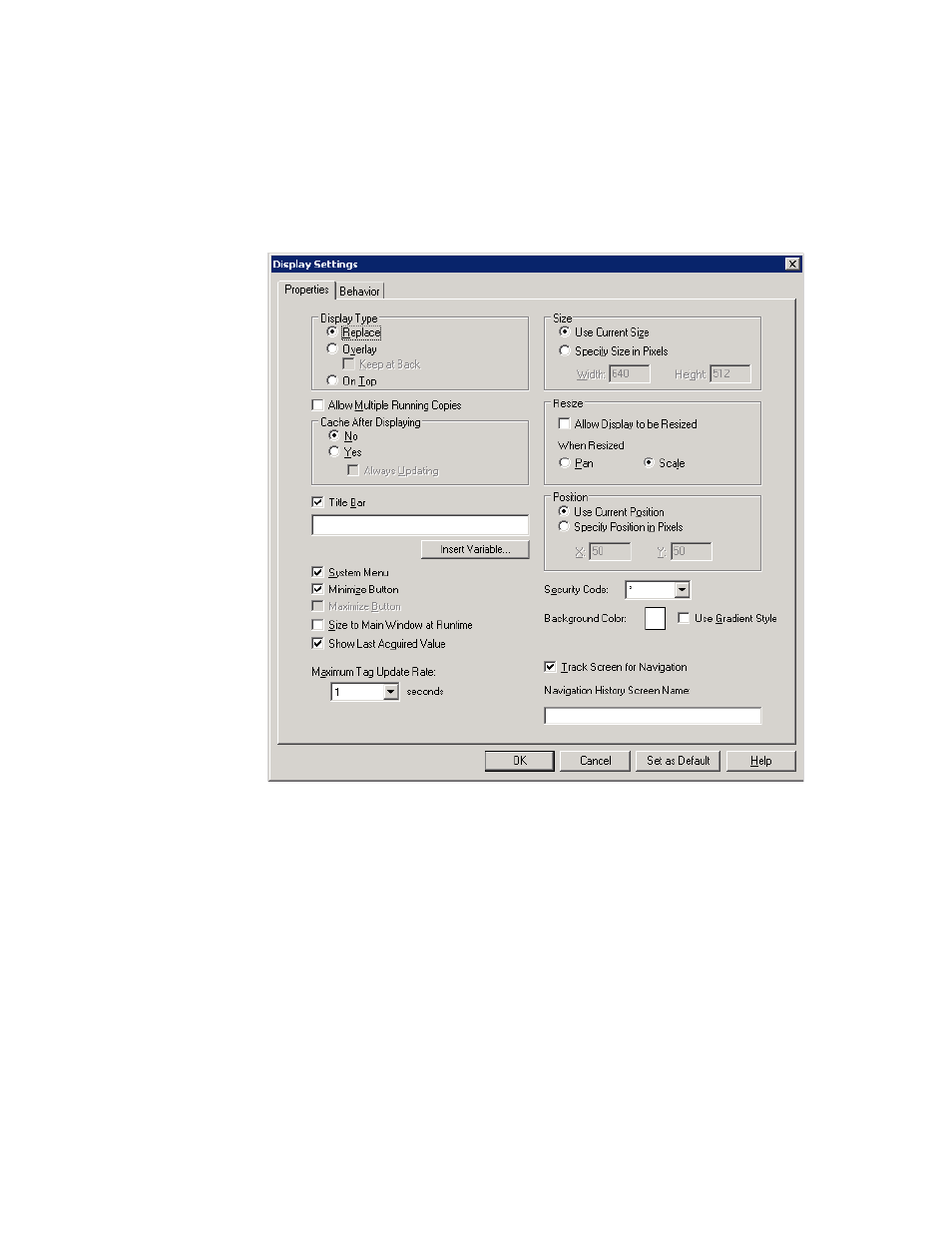

In the Properties
tab, secure the
display and set
up how it looks
and performs at
run time.
