Establishing an online connection
Going online
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
The PG/PC station is active in the »STEP 7« project.
• The icon symbolises that the connection is active.
9. Transfer the TCI communication parameters in the HW Config in the context menu of the
connection by executing the Start device toolL-force Engineer command.
If the previously created »Engineer« project is open, confirm the query with Yes.
Alternatively, the »Engineer« is started and the corresponding project must be opened.
• The query indicates that the opened »Engineer« project has not been set to a TCI
communication path. By confirming the query with Yes, the »Engineer« automatically
accepts the TCI communication settings from »STEP 7«.
10. The message window indicates the acceptance of the TCI communication parameters.
11. Going online: OnlineSet communication path and go online (F4)
• If the acceptance of the communication parameters has failed, the parameters can be

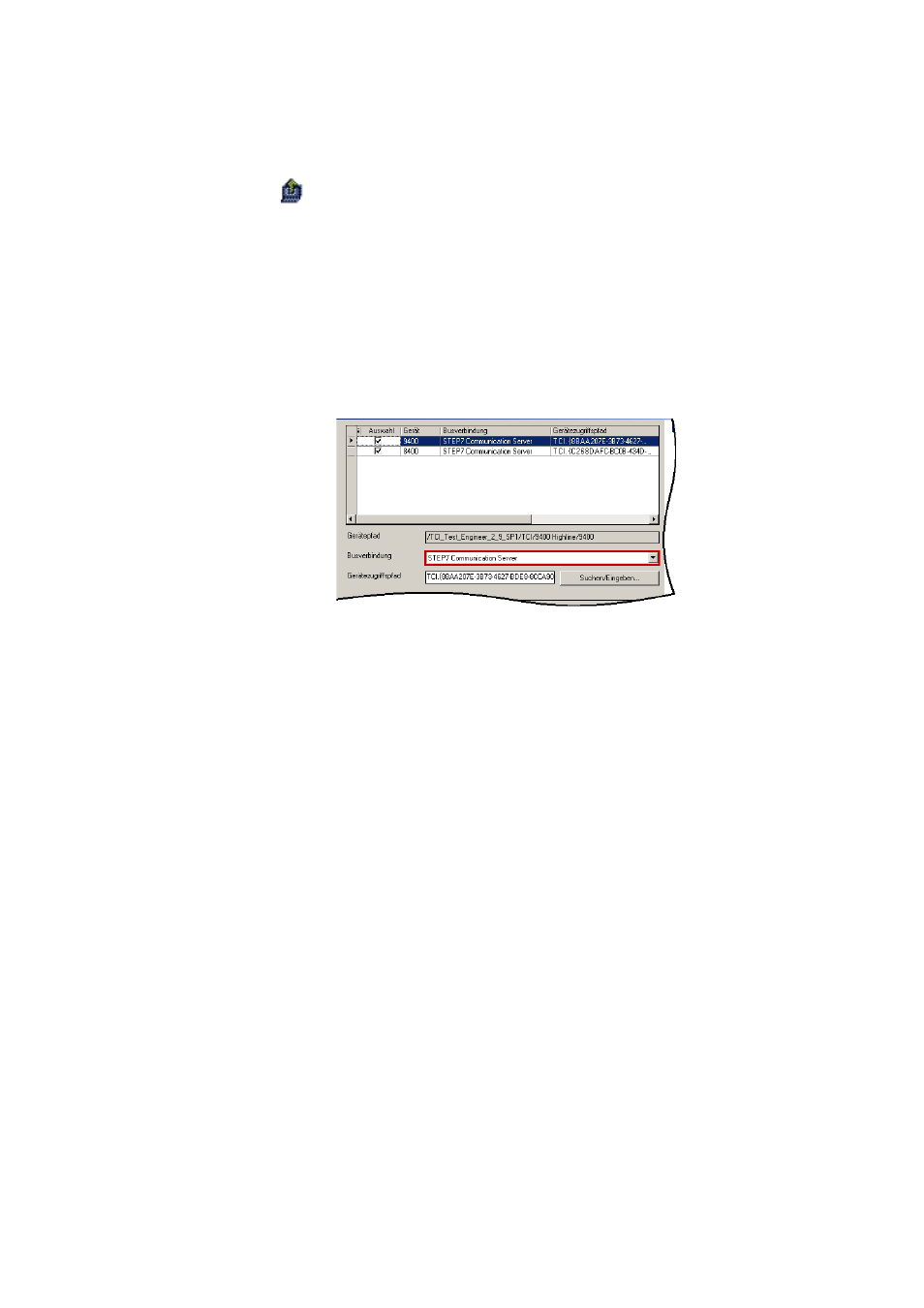

entered manually by clicking the Search/Enter button.
• Select STEP 7 Communication Server as bus connection.
• Click the Accept button.
• Click the Connect button to go online.
