Defining the system functionality
Creating an interconnection via the electrical shaft
182
Lenze · Engineer · 2.13 EN - 10/2014
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.13.5.4 Mixed connection
A mixed form of the connections "Automatic connection" and "Manual connection" is possible. A
mixed form of the connection "Predefined connection set connection" and another one is not
possible.
 Automatic connection ( 180)
 Manual connection ( 180)
 Specifying the procedure for assigning the COB-IDs ( 181)
8.14 Creating an interconnection via the electrical shaft

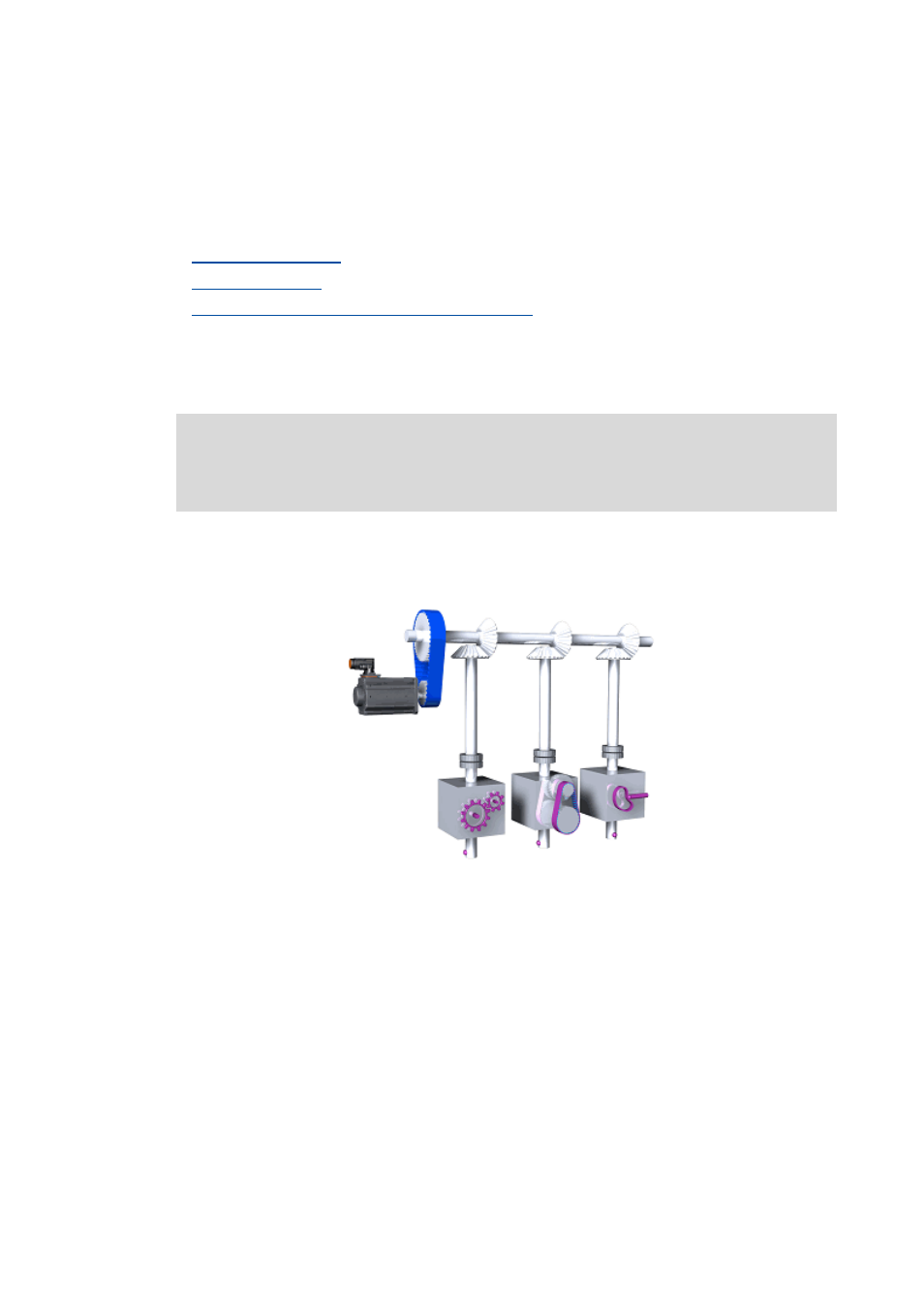

The master value/master angle between the drives in the interconnection is transferred by means
of the so-called "electrical shaft", which is based on the principle of the mechanical shaft ("line
shaft"):
Here, a fundamental distinction is made between two ways of using cam technology:
• Fixed synchronisation of the tools with regard to each other
• Synchronisation of the tools with a material

Tip!
It is not absolutely necessary that all axes of a machine belong to the electrical shaft.

Note!
Only controllers with a cam functionality (e.g. 9400 HighLine) can be assigned to an
electrical shaft.
