Establishing an online connection
Going online
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
2. Press Search/Enter....

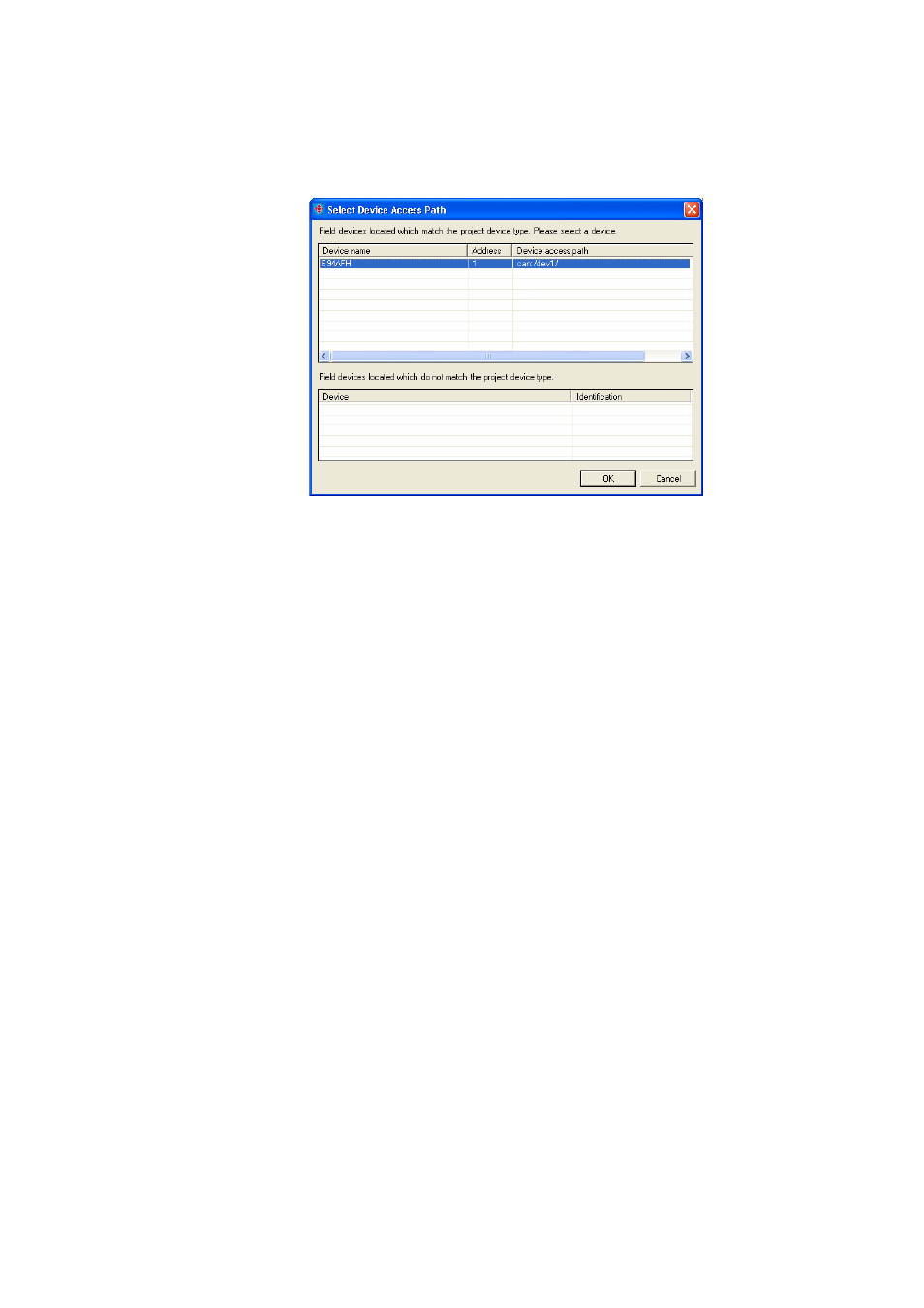

• The Select device access path dialog box is shown:
3. Select the corresponding device from the Field devices located list field.
4. Press OK.
• The Select device access path dialog box is closed.
• In the Communication path dialog box, the Device access path column displays the
corresponding device access path (e.g. "can:/dev1/").
6.2.1.2 CAN
Certain Lenze products are provided with an integrated CAN interface.
• Among other things, process data and parameter values can be exchanged between the nodes
via the CAN interface. Furthermore, the interface allows for the connection of other
components such as peripheral terminals, operator and input devices (HMIs), as well as external
control and host systems.
• The CAN interface transfers data objects in accordance with the CANopen communication
profile (CiA DS301, version 4.02), which was created under the umbrella association of CiA (CAN
in Automation) to conform with the CAL (CAN Application Layer).

Tip!
Detailed information about the subject "CAN" can be found in the Lenze library in the "CAN"
Communication Manual.

How to configure an online connection via CAN:
1. Go to the Communication path dialog box and select "CAN " from the Bus connection list
field.
2. Press Search/Enter....
