User interface
Monitor: Monitoring parameters
26
Lenze · Engineer · 2.13 EN - 10/2014
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5. In the  field, the Import/Export buttons serve to import/export composed monitor views.
This serves, for instance, to use them in another »Engineer« project.
6. Press OK to transfer the selection to the monitor window.
3.6.3 Adapt monitor window: Present parameters graphically (list)
The instruments option serves to present your requested parameters in table form in the monitor
window.

How to add the parameters to the monitor window:
1. In the View list field, select the Monitor window to be configured.

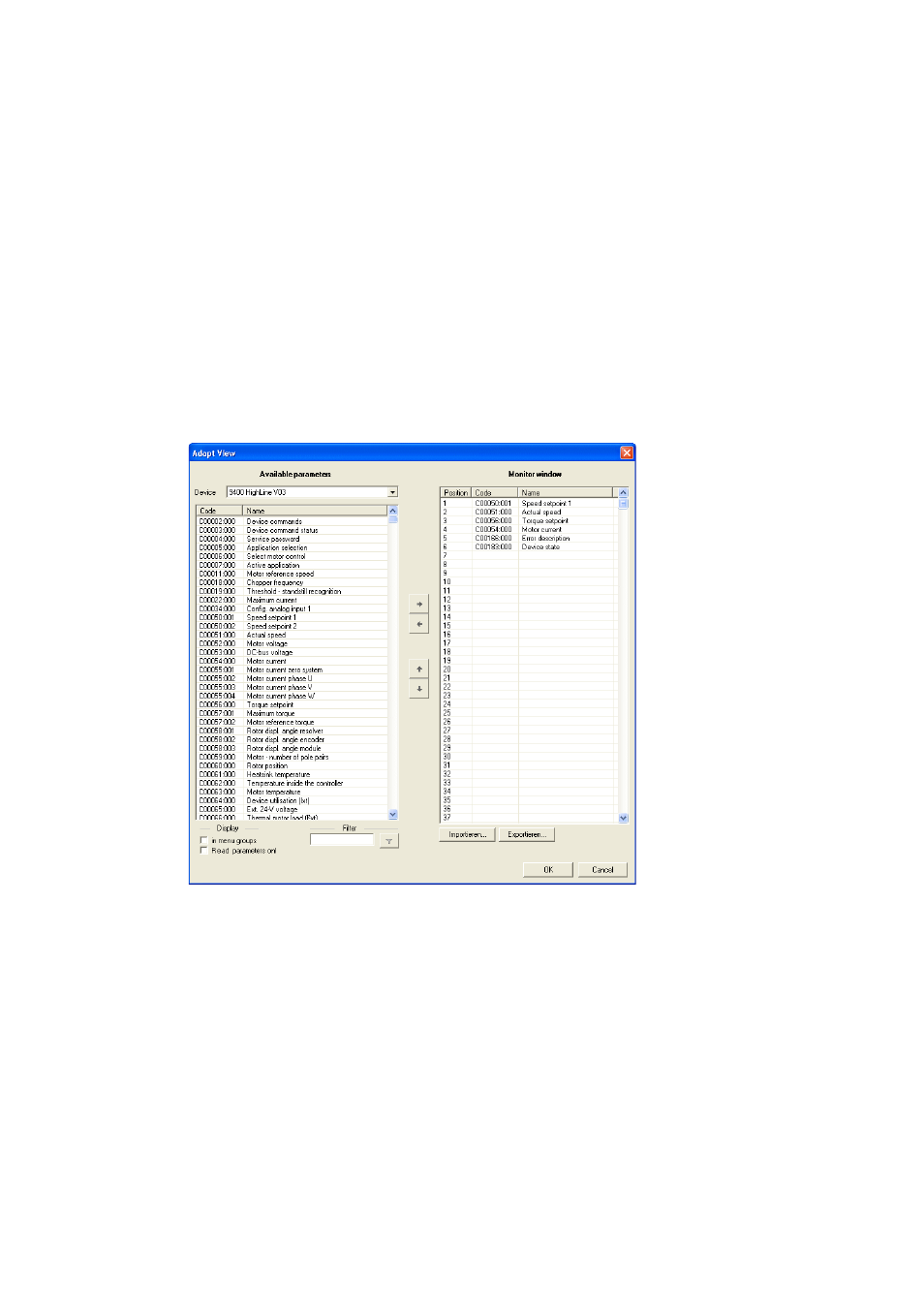

2. Click the Adapt button to open the Adapt view dialog box.
3. Go to area  and select the parameters to be transferred to the monitor window.
• Multi-selection of parameters shown one above the other: Hold down the key
and highlight the parameters.
• Multi-selection of individual parameters: Hold down the key and highlight the
desired parameters individually.
• In order that only certain parameters are visible in the  area, optionally activate the
corresponding filters .
• Activate the in menu groups control field to arrange the parameters according to menu
groups.
