Lenze · Engineer · 2.13 EN - 10/2014
77
Establishing an online connection
Going online
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3. Confirm the note with OK.
• When the update has been executed successfully, the Build project dialog box is closed
and the Go online process is continued.
• If an error has occurred during the update, the Build project dialog box remains open. In
this case, please observe the messages in the "Build" window. Click Close to close the
dialog box and cancel the Go online process.
6.2 Going online
Going online with a changed project
When the Go online command is executed, the »Engineer« checks whether the current project
settings have been transferred to the devices. If one or several devices have the "changed" status, a
note asks you to update the project.
• Confirm the query in order to update the project. This serves to transfer the changes to the
device.  Build project ( 76)

How to go online to a device:
1. Select the device with which the online connection is to be established in the Project view
of the :
Tip: You can establish an online connection to all or multiple devices by selecting the
project root or a system module in the Project view. Then select the devices included in the
selected element for the online connection in the Communication path dialog box.
2. Click on the icon or select the Online  Go online menu command (keyboard command
).
If the changes made in the project have not been accepted yet, update the project.
 Build
project ( 76)
If an update is to be carried out:
• Click Yes to open the Build project dialog box.
• Click Build in the Build project dialog box to update the changed project elements.
• When the update is completed, a note appears whether the update was successful.
If a communication path has not yet been set for the device, the Communication path

Stop!
If you change parameters in the »Engineer« while the controller is connected online, the
changes will be directly accepted by the controller!

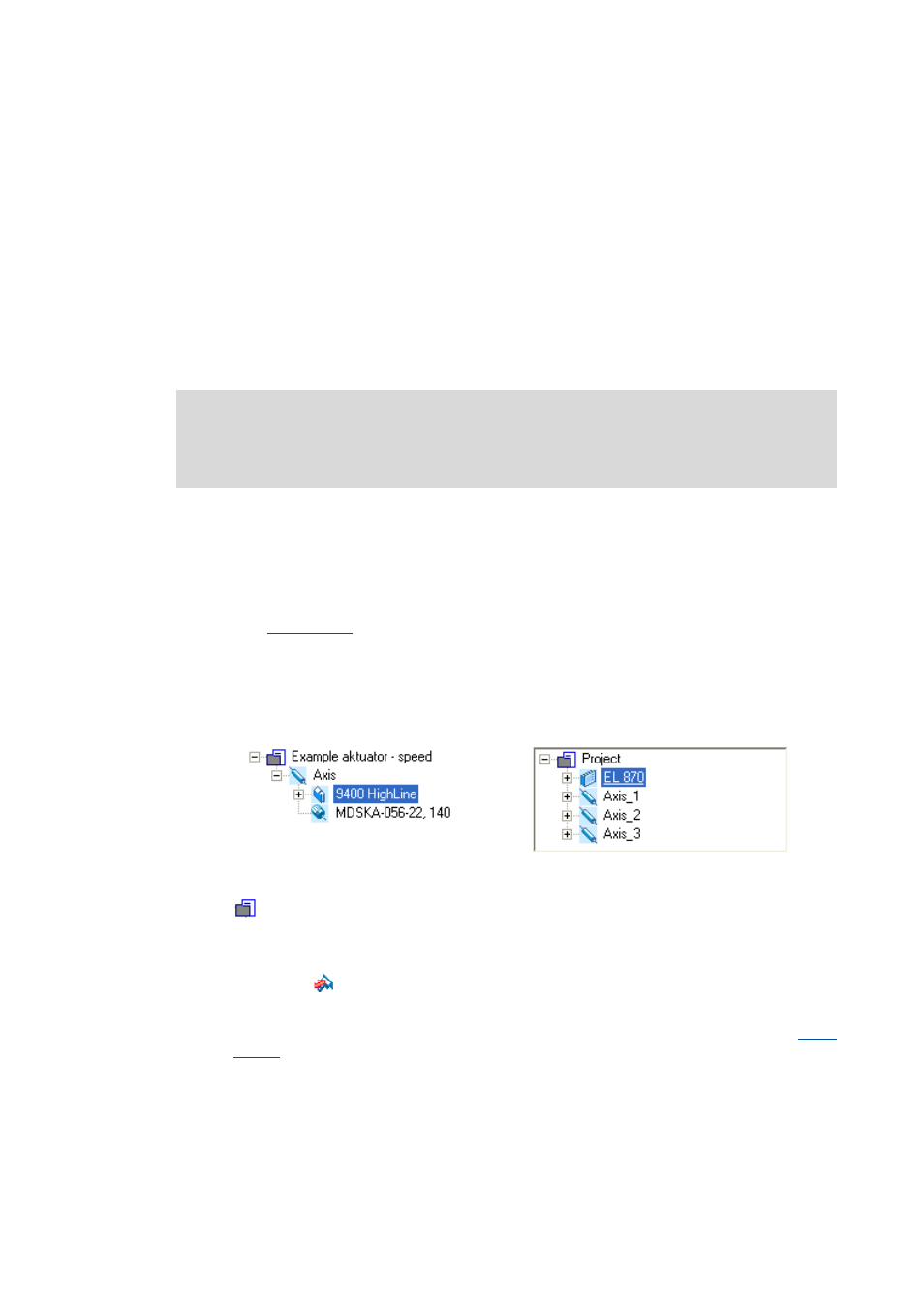

Example 1: 9400 HighLine controller Example 2: EL 870 controller and three axes
