Establishing an online connection
Going online
80
Lenze · Engineer · 2.13 EN - 10/2014
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
 Ethernet / Ethernet IPC ( 83)
 PROFIBUS ( 84)
 PROFINET ( 85)
 Gateway controller -> CAN ( 85)
 Gateway controller -> EtherCAT ( 86)
 Gateway Controller -> EtherCAT ADS (Beckhoff) ( 87)
 Gateway Siemens - STEP 7 Communication Server (available by call in STEP 7) ( 89)
6.2.1.1 Diagnostic adapter
For commissioning and diagnostics of a controller of the Inverter Drives 8400 and Servo Drives 9400
series you can e.g. use the diagnostic adapter offered by Lenze:

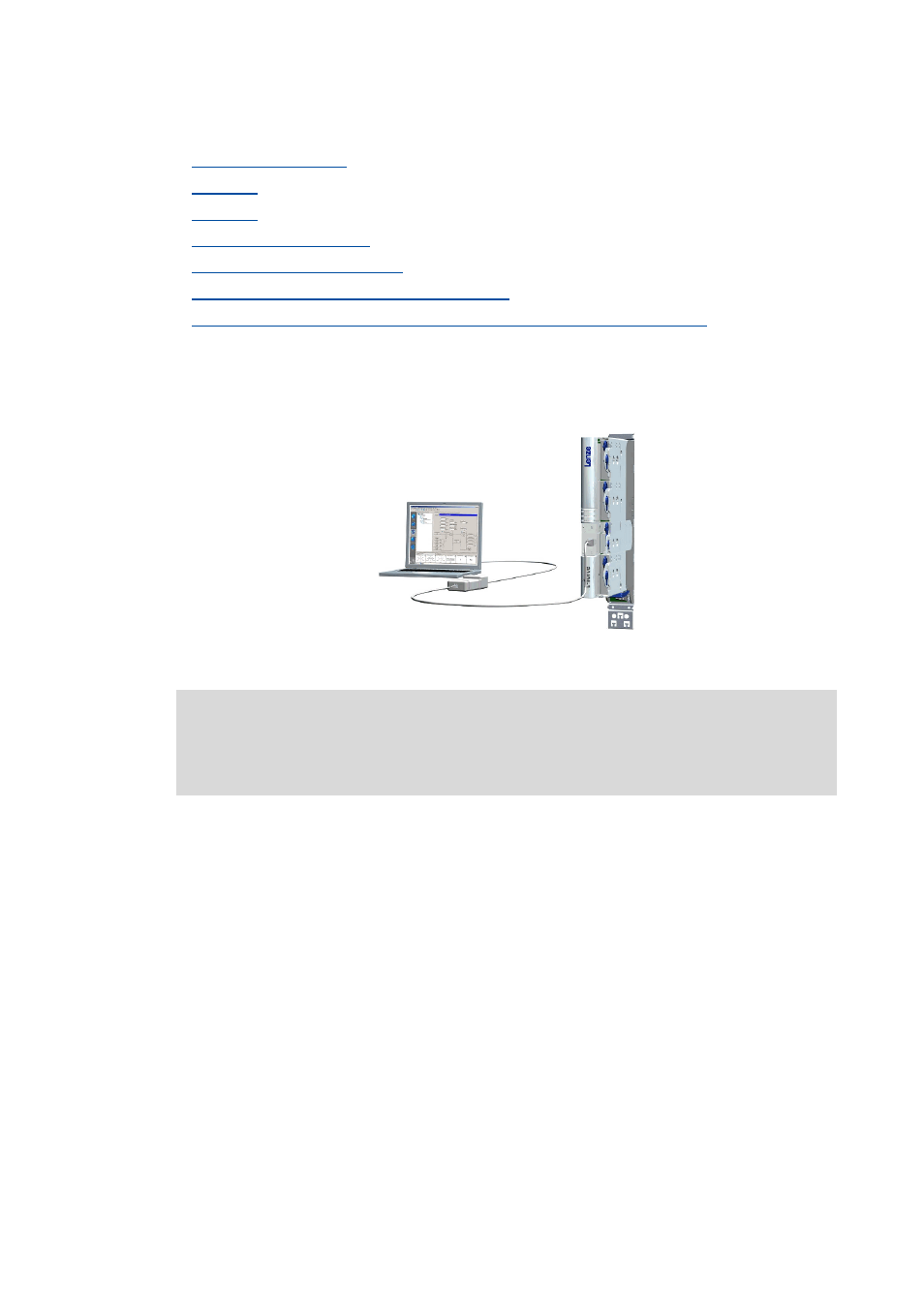

[6-2] Example of a connection via diagnostic adapter between an Engineering PC and a 9400 HighLine.

Tip!
Via the menu command OnlineStatus of diagnostic adapter, you can have the operating
status of the diagnostic adapters connected to the Engineering PC displayed.
Preconditions:
• The diagnostic adapter is connected to the diagnostic interface X6 at the controller and to a free
USB port at the (Engineering) PC.
• The driver required for the diagnostic adapter is installed.
• The control electronics of the controller is supplied via the X2 plug with 24-V low voltage.

How to configure an online connection via the diagnostic adapter:
1. Go to the Communication path dialog box and select "Diagnostic adapter" from the Bus
connection list field.
The following step is only required if several diagnostic adapters are connected to the PC:

Note!
Observe the documentation supplied with the diagnostic adapter!
The online connection to the diagnostic adapter is a 1:1 connection.
