Managing cam data with the »Cam Manager«
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Tip!
Before the cam data are created, consideration of the following factors and aspects has
proven to be useful:
Motion profiles:
• Number of interpolation points for each motion profile
• Cycle for each motion profile
(in preparation)
Cams:
• Type of cam track
• Number of cams per track (maximally 16 cams)
• Parameters of each cam
Position markers:
• Number of position tracks
• Number of position markers per track (maximally eight position markers)
14.2.1 Adding/editing/deleting products
After inserting an electrical shaft into the Project view there is only one product [0] in the »Cam
Manager« initially.

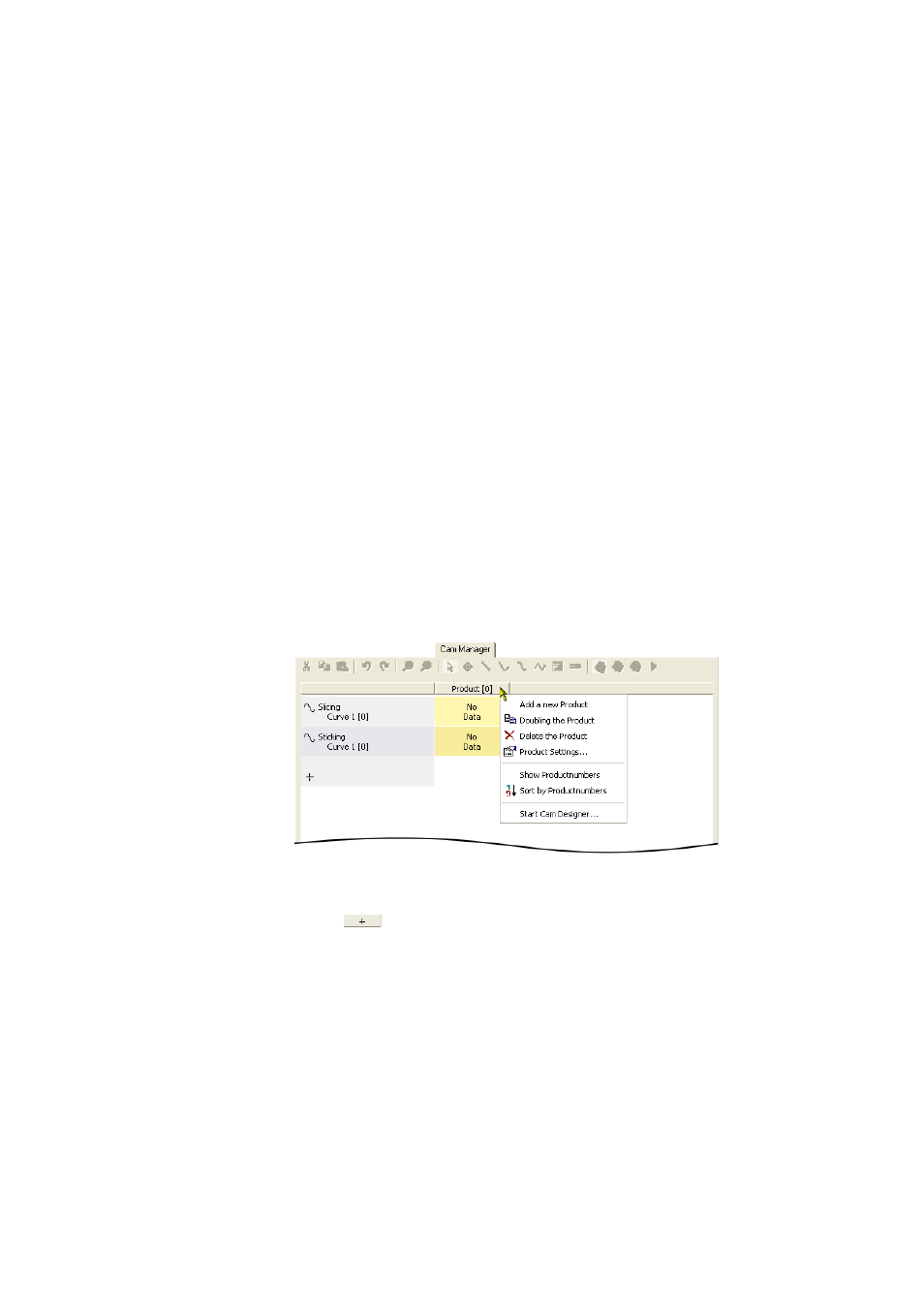

If you right-click on a product in the »Cam Manager«, a Context menu appears, by means of which
you can add further products, among other things, and delete existing products or edit their
properties:

Tip!
You can use the button next to the Product column to insert further products.
