Mapping the system structure in the »Engineer« project
Inserting components
60
Lenze · Engineer · 2.13 EN - 10/2014
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.2.6
Inserting an I/O system
In the »Engineer«, the I/O system 1000 and compact as well as modular IP20 systems are available.
• Modular I/O systems offer the advantage of a flexible modular structure where individual
modules can be relocated.
How to add an I/O system:
1. In the Toolbar, click
to open the insertion wizard.

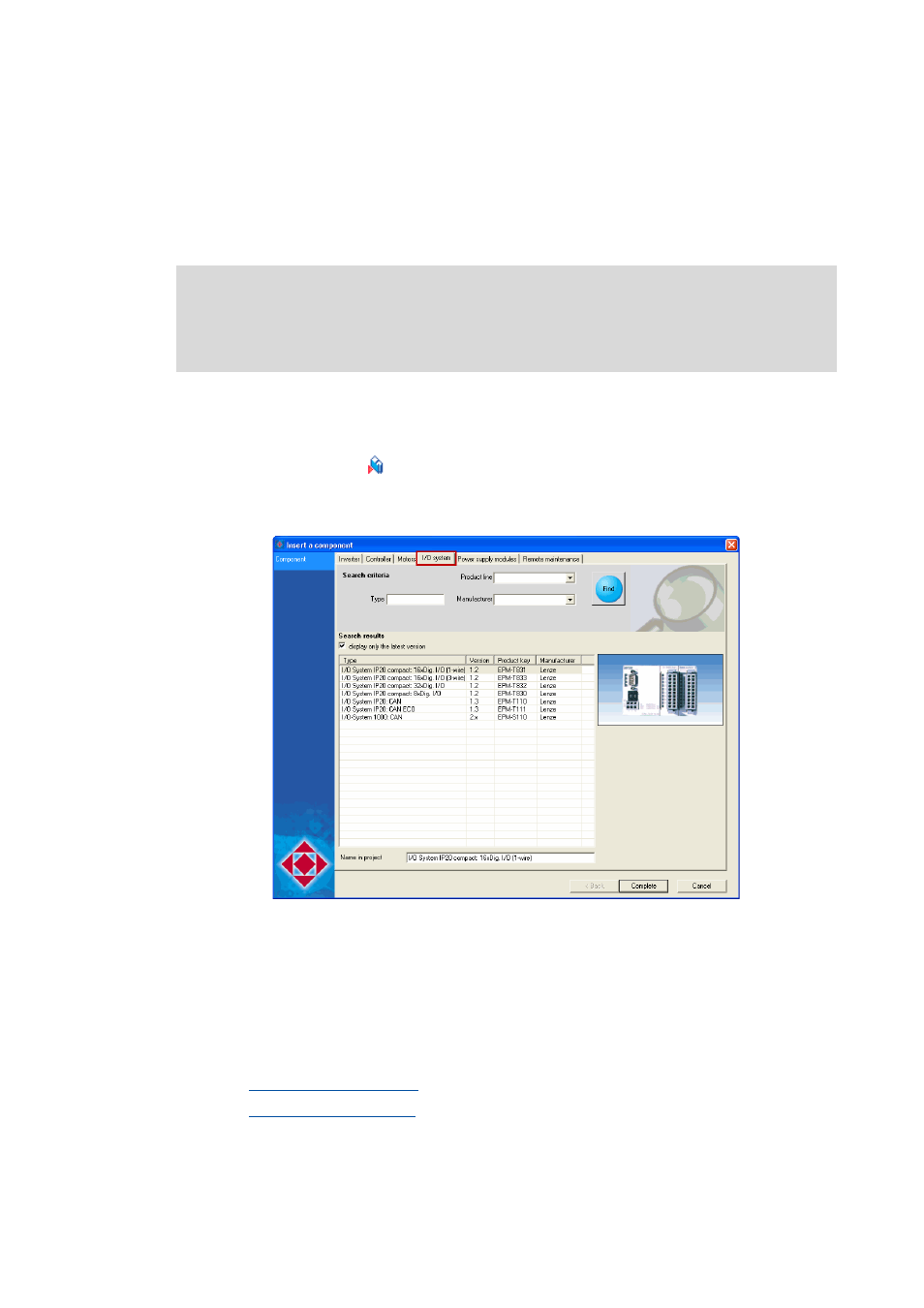

Step 1 - Component
2. Select the I/O system tab.
• The Search results list field displays all available I/O systems.
• Optionally, you can define Search criteria for restricting the Search results.
• Click the Search button to update the search results.
3. Select the I/O system to be inserted in the Search results list field.
4. Click the Next button.
5. Carry out the further instructions as described in the subchapter for the corresponding I/O
system:
Detailed information on the "I/O system IP20" can be found in the "I/O system IP20
(SHB)" system manual.
Detailed information on the "I/O system 1000" can be found in the
"I/O system 1000 system manual (SHB) - Modular I/O system"
