Defining the system functionality
Port editor (ports)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Further proceeding depends on the selected variable type:
 Defining port with "Simple" variable type
 Defining a port with "Record" variable type ( 163)
 Define a port with "Array" variable type ( 165)
8.11.2.1 Defining port with "Simple" variable type

How to define a port with the "Simple" variable type:
1. Carry out the steps as described in the instructions in the chapter " Adding a port ( 162) ".
2. Go to the Variable type selection field and select the "Simple" entry.

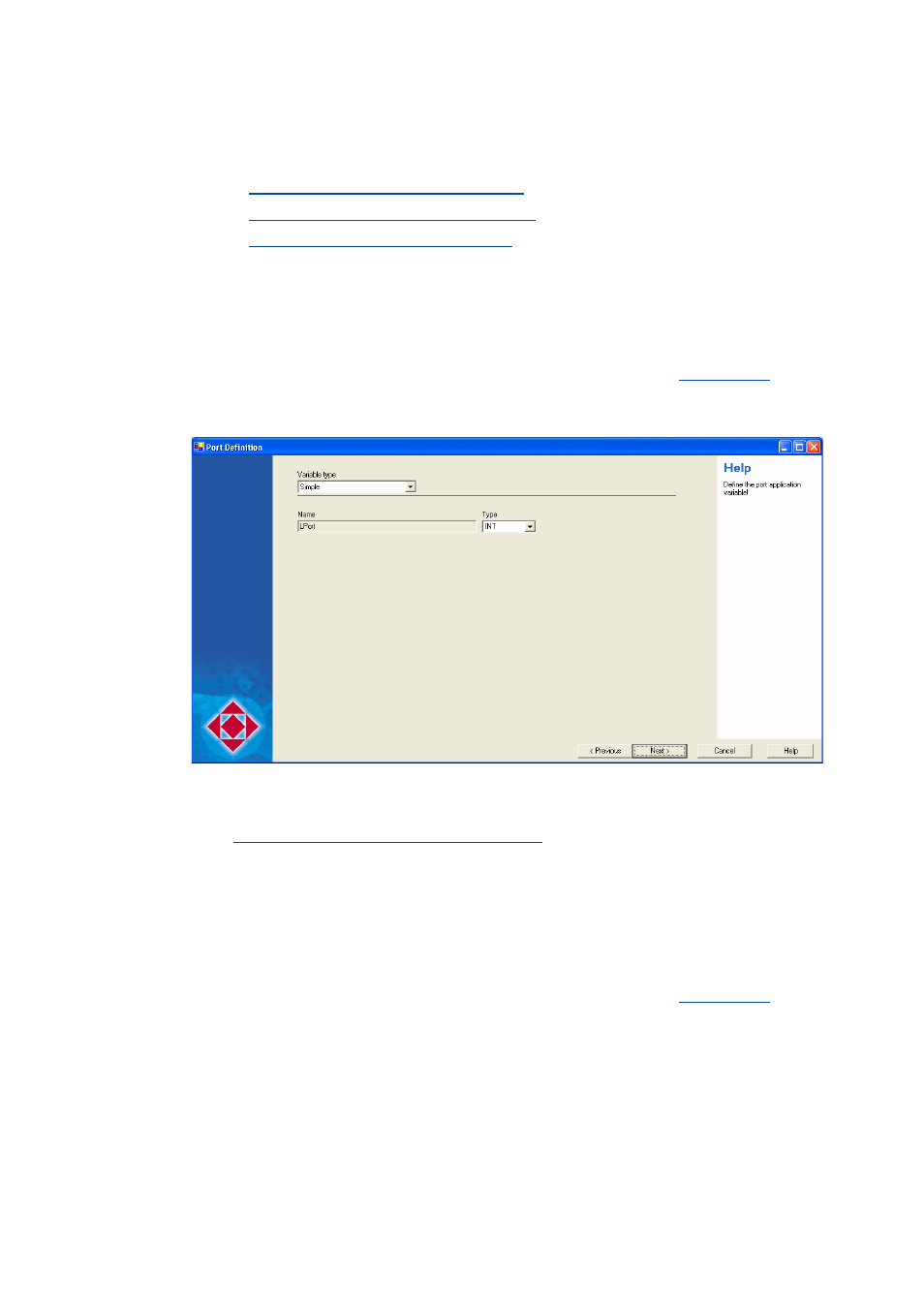

• The Port definition dialog box is then presented as follows:
3. Select the required data type in the Type selection field.
4. Click the Next button.
5.
Defining the interface and process data object ( 168)
6. Click the Complete button to complete the port definition.
8.11.2.2 Defining a port with "Record" variable type

How to define a port with the "Record" variable type:
1. Carry out the steps as described in the instructions in the chapter " Adding a port ( 162) ".
2. Go to the Variable type selection field and select the "Record" entry.
