Defining the system functionality
Terminology used
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.2 Terminology used
Applications & ports
The Application symbolises the function of a device in the »Engineer«. An application can be viewed
as a block that is mostly configurable via parameters and is provided with external connection
points, so-called Ports:
• A device always comes with an application which may be empty (unconfigured).
• Via input ports, for instance setpoints and control commands can be transferred to the
application. Via output ports an application can provide actual values and status messages.
• Examples of applications are "speed control" and "torque control".
Machine application
A function of the system which is implemented by the interaction of several devices in the
»Engineer« is symbolised by a Machine application.


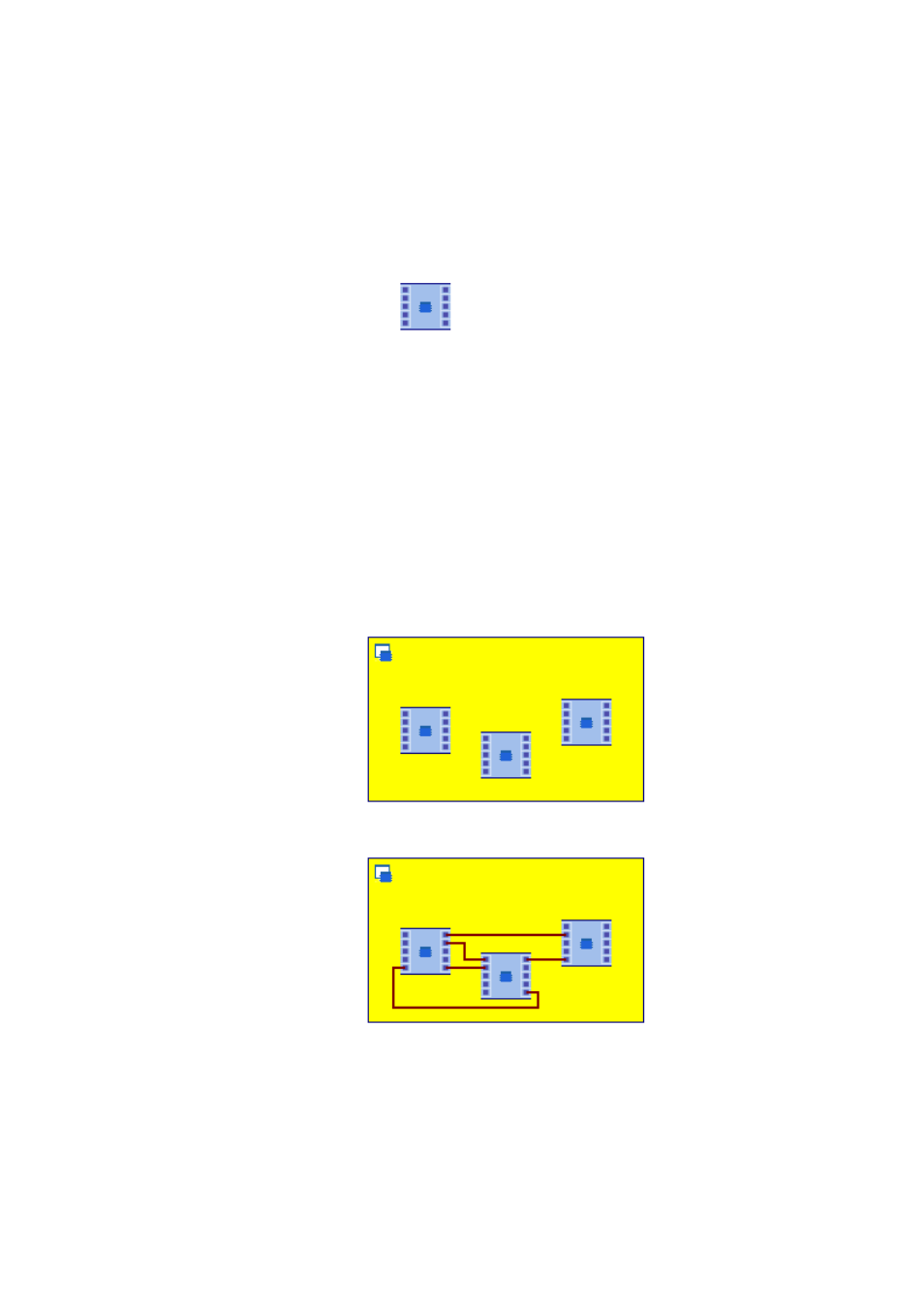

How to generate a machine application:
• A machine application is generated by defining the applications which form this machine
application by allocation in a first step:
• The second step is to interconnect the ports of the applications assigned with each other and
like this describe the applications between which information is exchanged:
