Catalogue management in the »Engineer«
Management of catalogue versions
236
Lenze · Engineer · 2.13 EN - 10/2014
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
• Damaged elements can be deleted in the same way as regular elements:
• Select the element, delete it with or execute the Delete command via the context
menu.

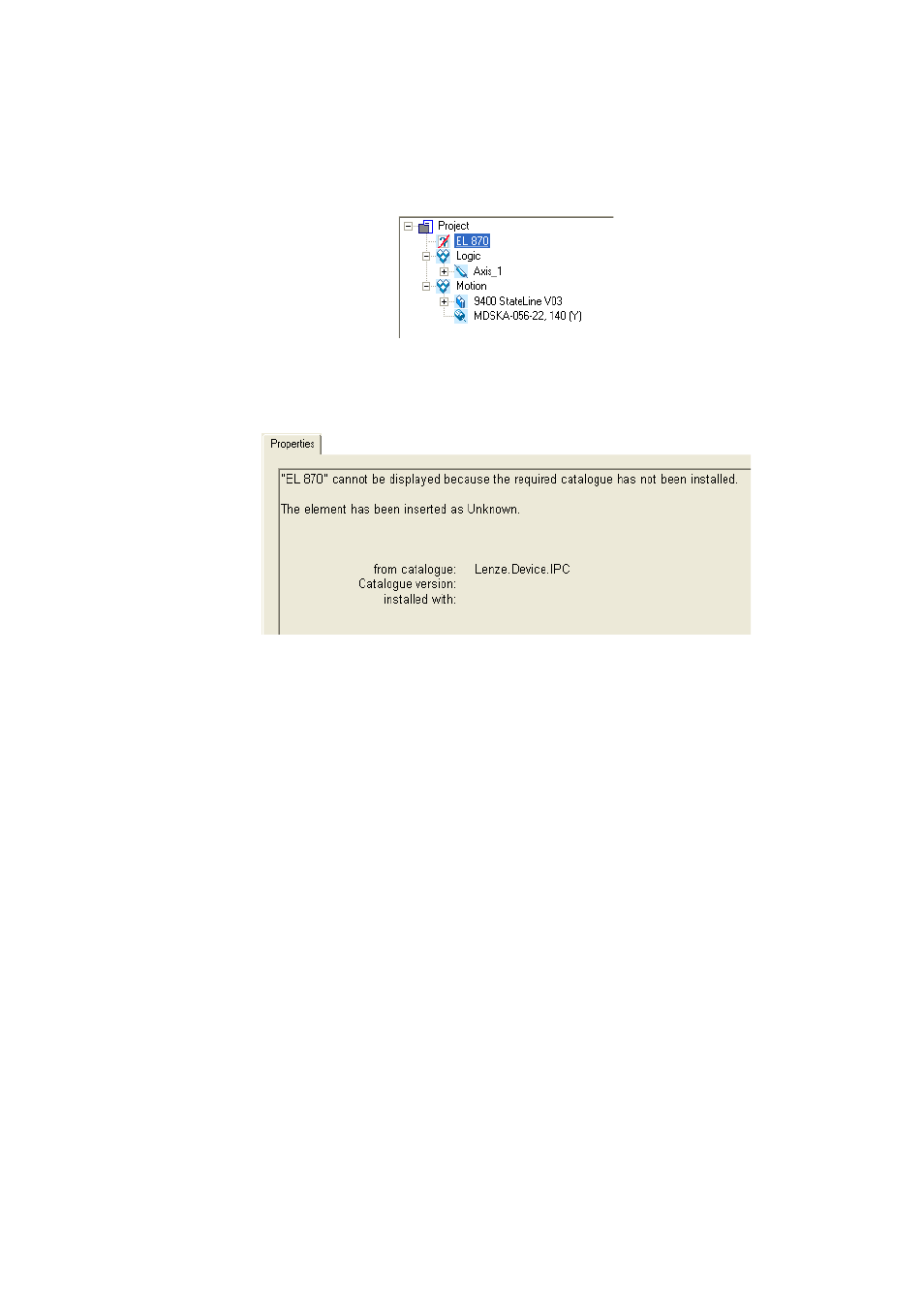

[11-3] Damaged element
Properties tab
The properties of a damaged element are indicated in the Properties tab:
[11-4] Information about a damaged element
11.5 Management of catalogue versions
11.5.1 Objects of versioning
The contents of the »Engineer« catalogues are provided by Lenze in a maintained and versioned
manner. Versioning takes place on three levels:
1. Each element contained in a catalogue has a version. The version of a catalogue element is
displayed in the insertion dialog and - for existing project elements - in the Properties tab.
2. Every catalogue provided has a version. A catalogue contains several elements each of which
has a certain version. The unchanged version of an element can be contained in several
successive catalogue versions. The versions of the existing / used catalogues are displayed in
the ToolsCatalogues dialog.
3. Every catalogue package has a version. A catalogue package contains several catalogues each of
which has a certain version. The unchanged version of a catalogue can be contained in several
successive catalogue packages.
11.5.2 Procedure for the provision of new versions
There are two procedures for the provision of new element versions. The difference is that if
multiple catalogue versions exist, you must select the catalogue you want to use.
