User interface
Monitor: Monitoring parameters
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.6.2 Adapt monitor window: Show parameters graphically (instruments)
The instruments option serves to present your requested parameters graphically.

Tip!
Any value from the parameter list (All parameters tab) of a device can be transferred to the
monitor window via right-click: Command: Add to monitor window


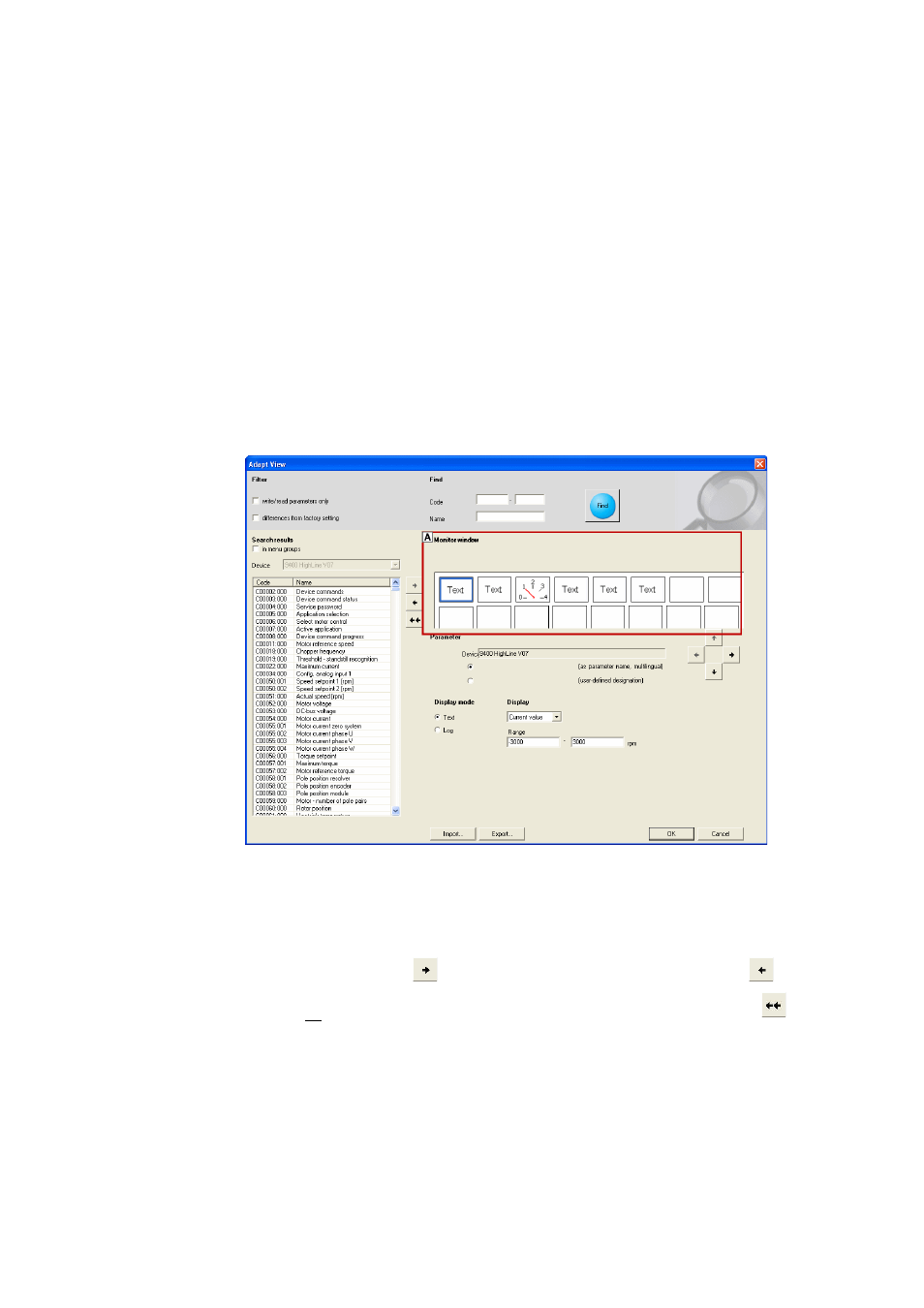

How to add the parameters to the monitor window:
1. Select the desired monitor window:
• Select the monitor window to be configured in the View list field (above the monitor
window.
2. Click the Adapt button:
• Click the display field you want to configure in the  area. The currently selected display field is
highlighted by a blue frame.
3. In the area , select the parameter from all parameters of the device ...
... to be displayed in the display field of the monitor window (area ).
...by clicking the arrow key /undoing the selection by using the arrow key . In order
to remove all parameters from the monitor window, use the double arrow key .
• In order that only certain parameters are visible in the area , activate the corresponding
filter options.
• Activate the in menu groups control field to arrange the parameters according to menu
groups.
4. Repeat the steps 1 to 4 to display more parameters in the display fields in area  (one
parameter each per display field is possible).
