Defining the system functionality
Port editor (ports)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.11 Port editor (ports)
The port editor (tab Ports) serves to create and visualise ports.
• A port is an interface which sends and receives data at runtime via an application. The data
transferred via port represent a group of inseparable pieces of information which are sent and
received in one piece.
• Most applications have ports which are already fixedly predefined.
• The port editor can both be called for an application on a device and for a comprehensive
application (machine application) via the Ports tab.

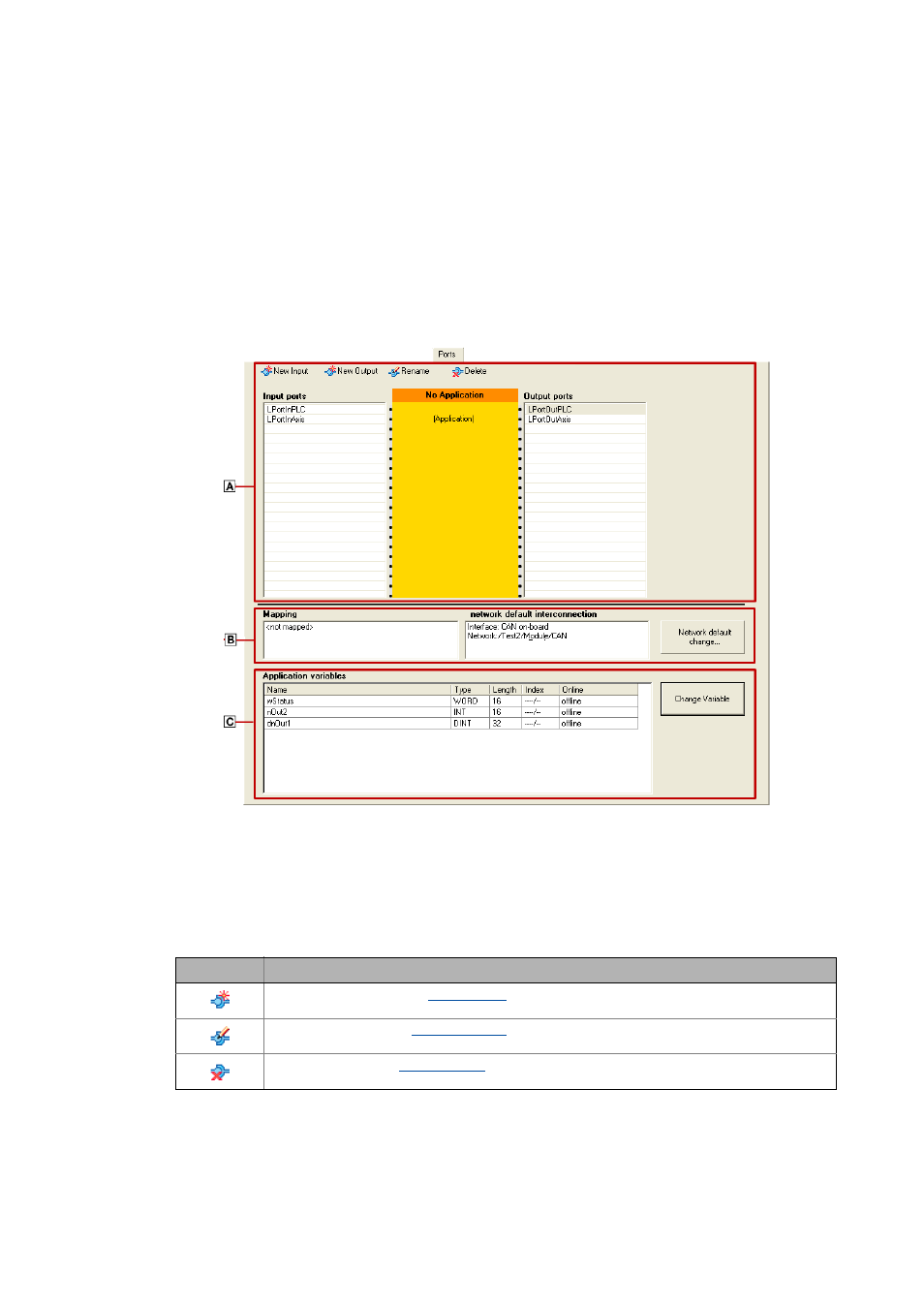

Port definition Communication/mapping Variable definition
Port definition
Display of all input and output ports of an application/ machine application.
• Mapped ports are printed in bold.
• The icons serve to create new ports and process available ports:
Mapping
Display of the process data object on which a port is currently mapped.
• A port can be mapped on no, one, or several process data objects.
Icon Function
Add input or output port.
 Adding a port ( 162)
Rename port selected.  Renaming a port ( 169)
Delete port selected.  Deleting a port ( 169)
