8.8 Configuring the terminal assignment
You can configure the digital and analog input and output terminals of a device by means of the
Terminal assignment tab for the device. With the Control terminals selection field, you can change
between the digital and analog terminals.
8.8.1 Changing the terminal assignment
Depending on the device application assigned to the device and on the default setting of the device,
terminals can already be linked to internal signals. This assignment, however, can be changed if
required.


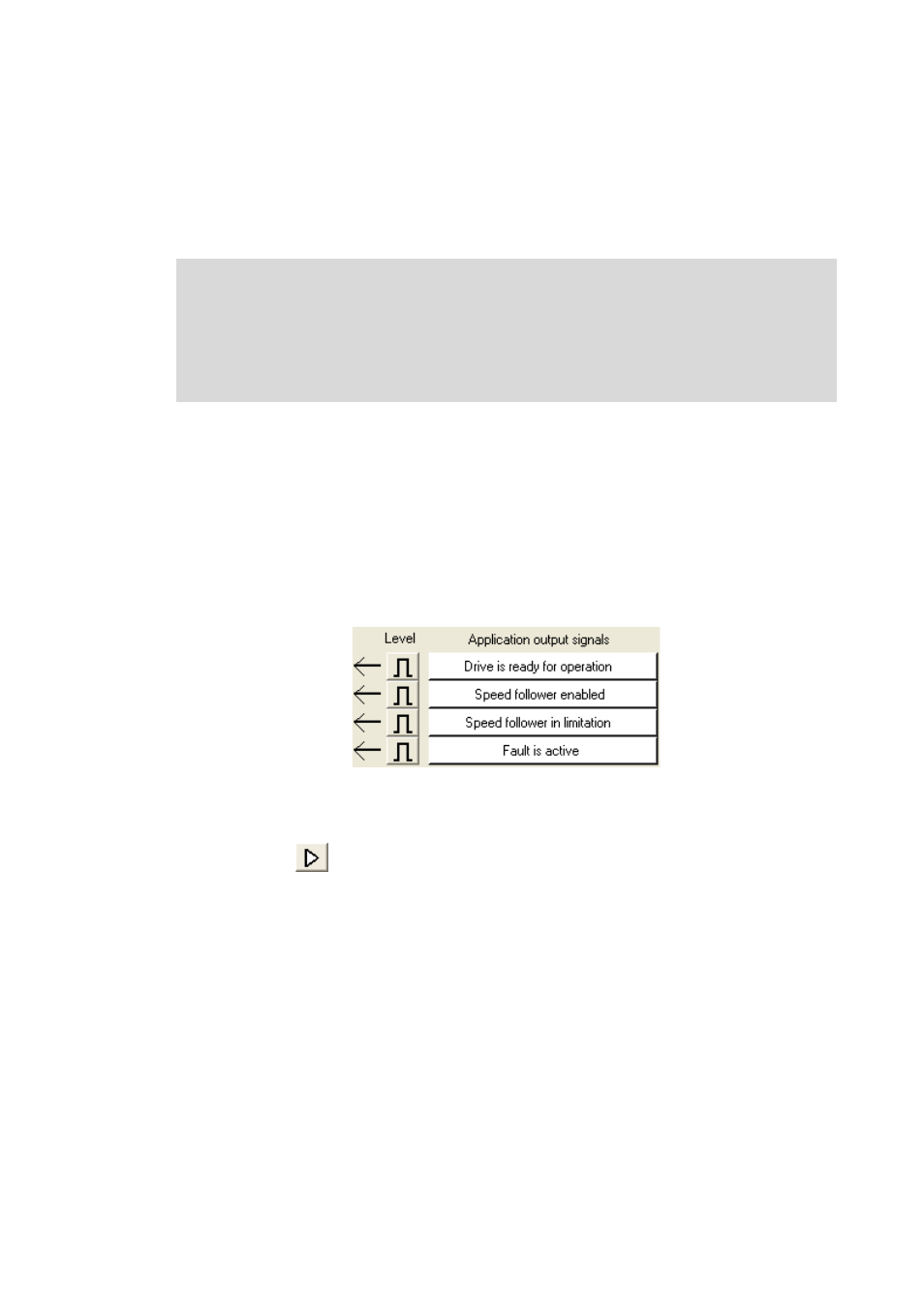

Click the corresponding buttons in the Application group field to alter the I/O configuration
for the associated terminal.
8.8.2 Setting the gain & offset of the analog terminals

Click the button to parameterise the gain and offset for the associated analog
terminal.

Note!
The display of the Terminal assignment tab and the possible settings specified are
device-dependent!
Also read the documentation supplied with the corresponding device before you start
working!
