Inserting & configuring a network
Inserting a network
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

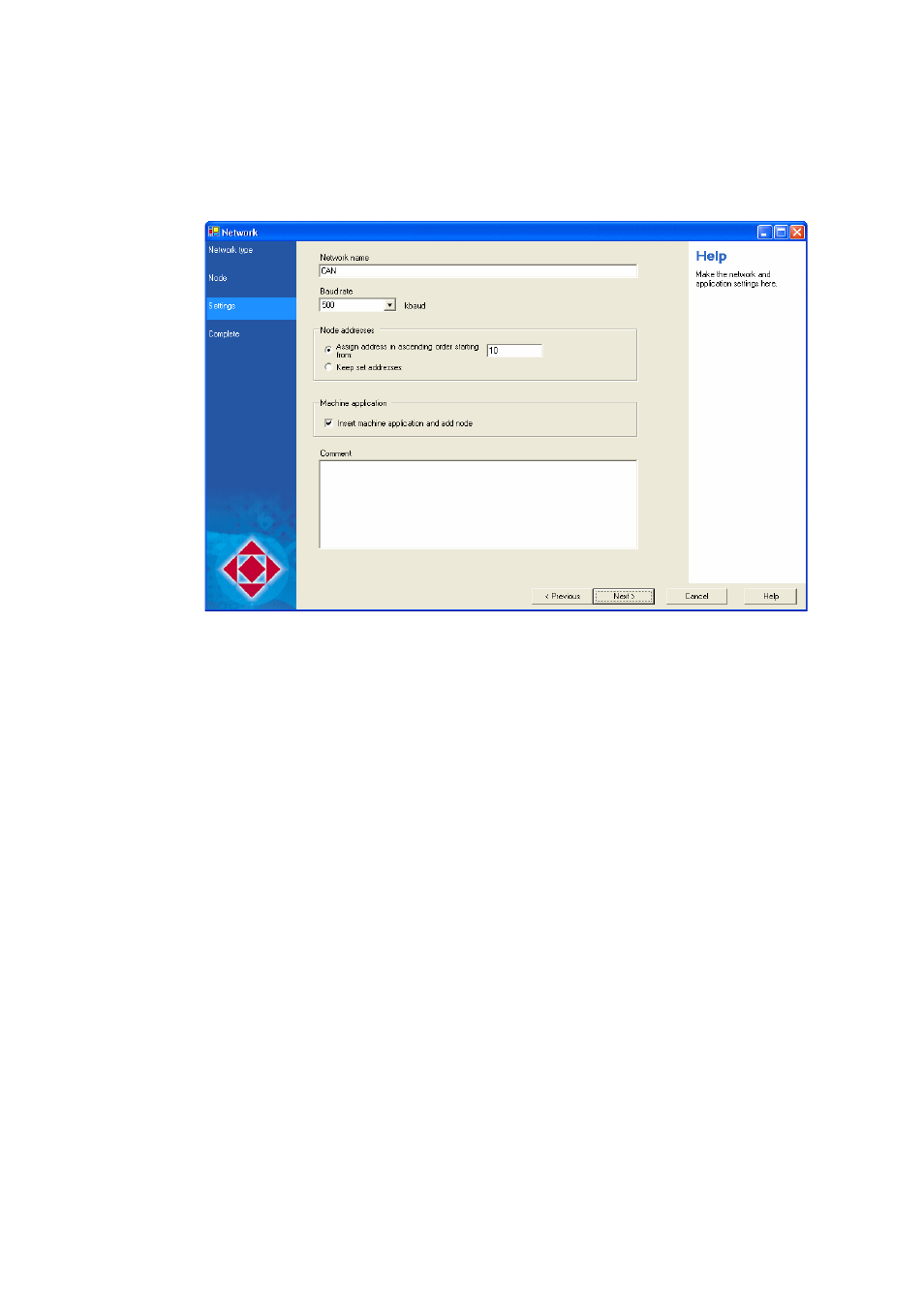

Step 3 - Settings
In the case of an ETHERNET Powerlink network, the Baud rate selection field is not
available.
7. Highlight the control field entitled Insert machine application and add nodes if all existing
devices are to be automatically added to the network as nodes.
• If the control field has been highlighted, a machine application that is shown in the
project tree is also added to the project. The selected applications are already integrated
in the machine application.
• The indicated default values for Lenze devices do not need to be changed in the settings
area.
• All compatible network nodes which are below the network system module are added
to the network. If a device has several node interfaces of the same type, a selection
dialog appears.
• All assigned network nodes are pre-assigned addresses in ascending order. In the case of
CAN, the minimum address is taken from the settings.
8. Click the Next button.
• An information text appears.
You can either alter the node addresses in the »Engineer« project or at the hardware
switches.
9. Press Complete.
• The selected network is inserted into the highlighted element.
