VLAN classifier configuration
17

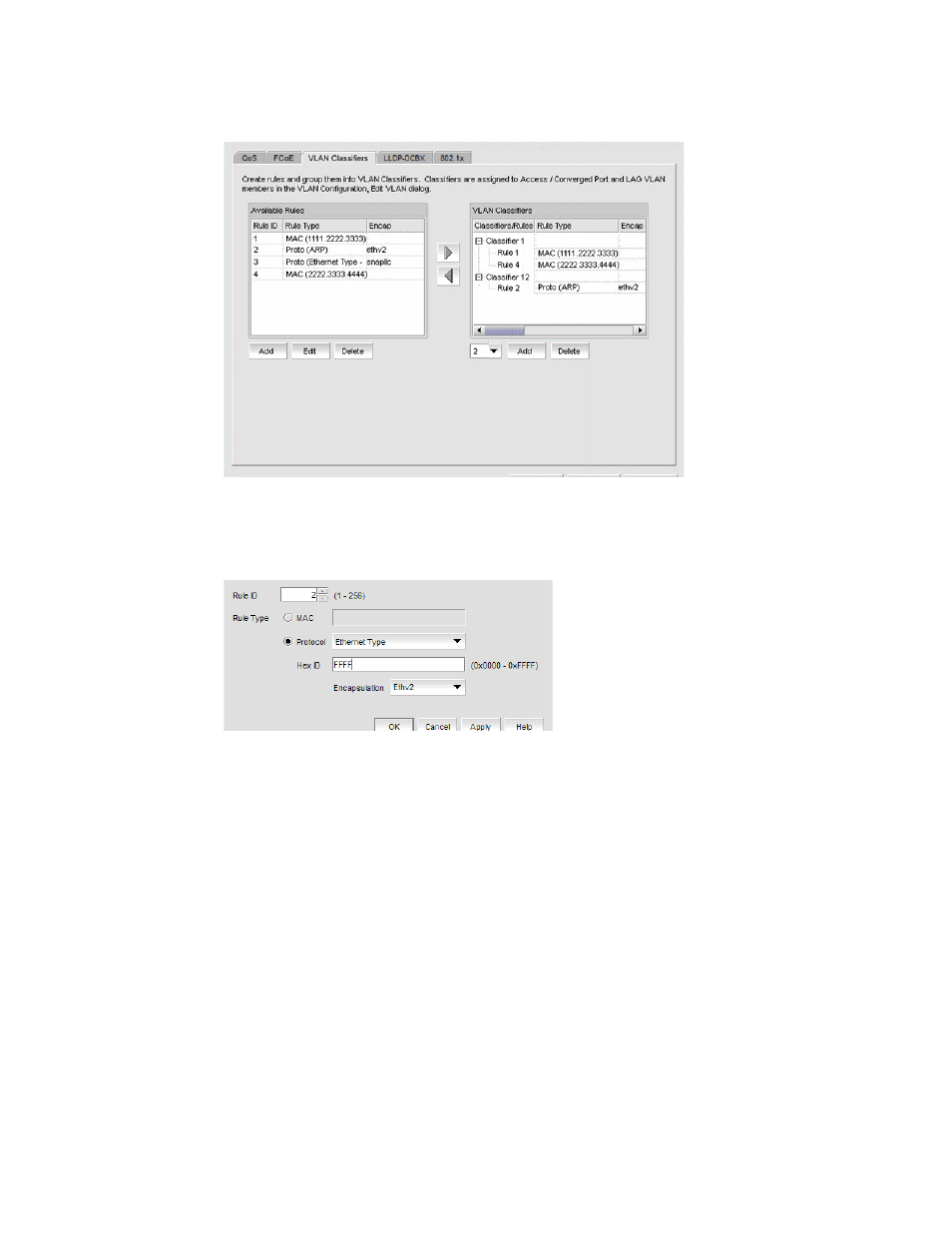

FIGURE 248 Edit Switch dialog box, VLAN Classifiers tab
4. Click the Add button under the Available Rules list.
The Add Rules dialog box displays, as shown in Figure 249 .
FIGURE 249 Add Rules dialog box
The Rule ID field is pre-populated with the next available rule ID number.
5. Keep the rule ID number as it is, or change the number using a value from 1 through 256.
6. Select a rule type. Valid rule types are MAC (MAC address-based rule) and Proto (802.1Q
protocol-based rule).
7. If Ethernet Type is selected as the protocol rule type, enter any valid four-digit hexadecimal
value within the allowed range of 0x0000 through 0xFFFF. For the other Proto options, the hex
ID value is hard-coded as follows:
• ARP — 0x0808
• IP — 0x8881
• IPv6 — 0x86DD
8. Select an encapsulation type from the list. Options include Ethv2, nosnapllc, and snapllc. The
Encapsulation list only accepts a value when Protocol is selected as the rule type.
