226 Brocade Network Advisor IP User Manual
53-1003153-01
Dashboard customization
7
• Port Health Violations widget — Table view of out of range port health violations. There are four
versions of this monitor based on the type of port: All ports, initiator ports, ISL ports, and Target
ports.
• Status widget — List view of various status attributes.
Access Point Status widget
The Access Point Status widget displays the access point (AP) status as a pie chart.
The Access Point Status widget includes the following data:
• Widget title — The name of the widget.
• Widget summary — The product count for each status (worst to best order) displays
underneath the widget title.
• Show list — A list of available managed AP products.
• Pie chart — The AP status as a percentage of the total number of devices.
The pie chart displays the percentage in various colors on each slice. Tooltips showing the
number of devices in that state are shown when you pause on the slice. When there is one
status category with less than one percent of the total number of devices, the status widget
displays the number of devices in each category on each slice.
Customizing the Access Point Status widget
You can customize the Access Point Status widget to display status for a specific product.
Change the grouping by selecting one of the following from the Show list:
• All — Displays all the AP products.
• AP7131 — Displays only AP 7131 products.
• AP6511 — Displays only AP 6511 products.
• AP650 — Displays only AP 650 products.
When you launch the Port page, the detailed view closes.When you launch the Port page, the
detailed view closes.
“Configuring the dashboard display”
on page 223Events widget
The Events widget ( Figure 84 ) displays the number of events by severity level for a specified time
range as a stacked bar graph.

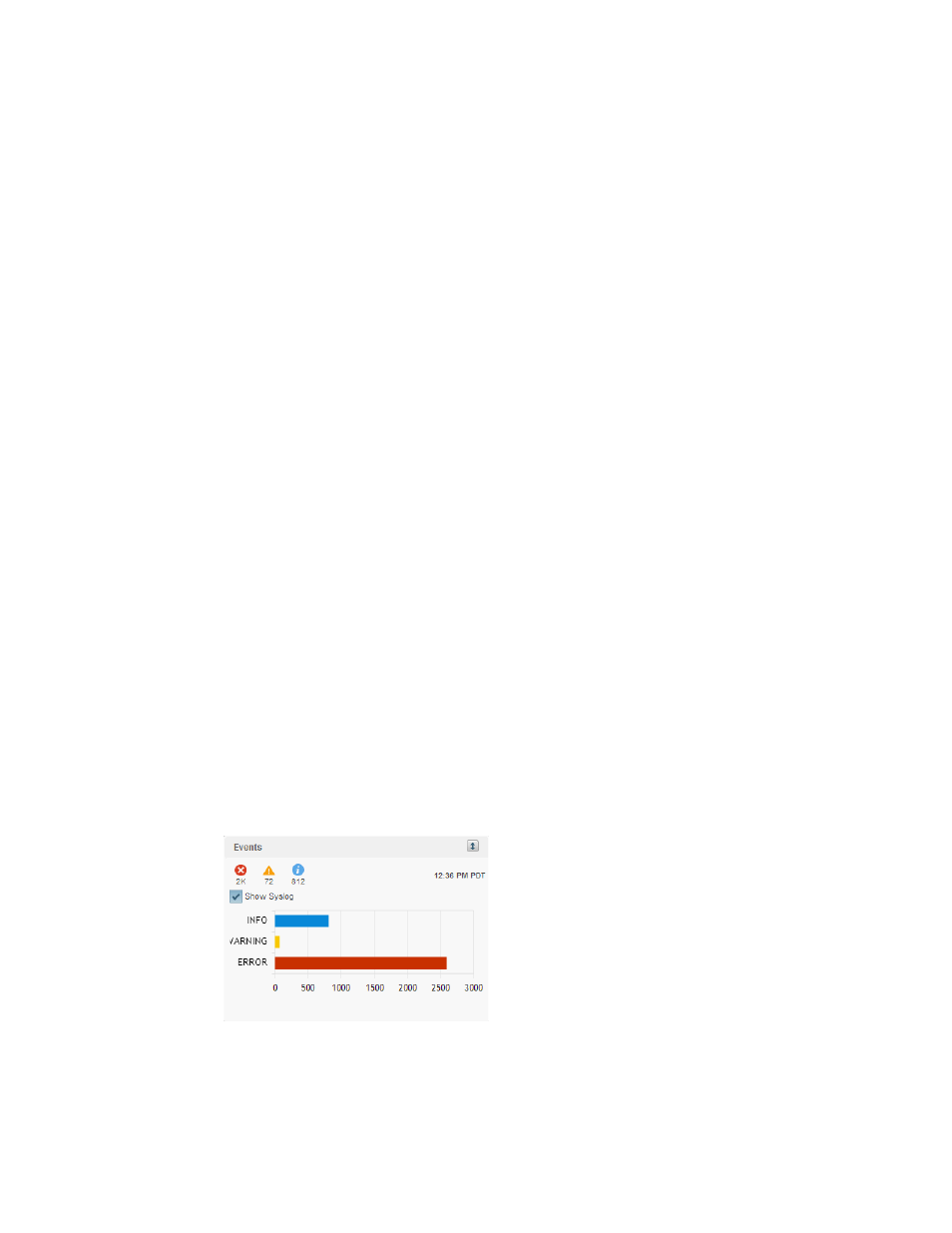

FIGURE 84 Events widget
The Events widget includes the following data:
• Widget title — The name of the widget.
