Brocade Network Advisor IP User Manual 263
53-1003153-01
Inventory
7
Inventory expand navigation bar
The Inventory expand navigation bar ( Figure 81 ) is located on the left side of the page and provides
a list of discovered fabric and products.

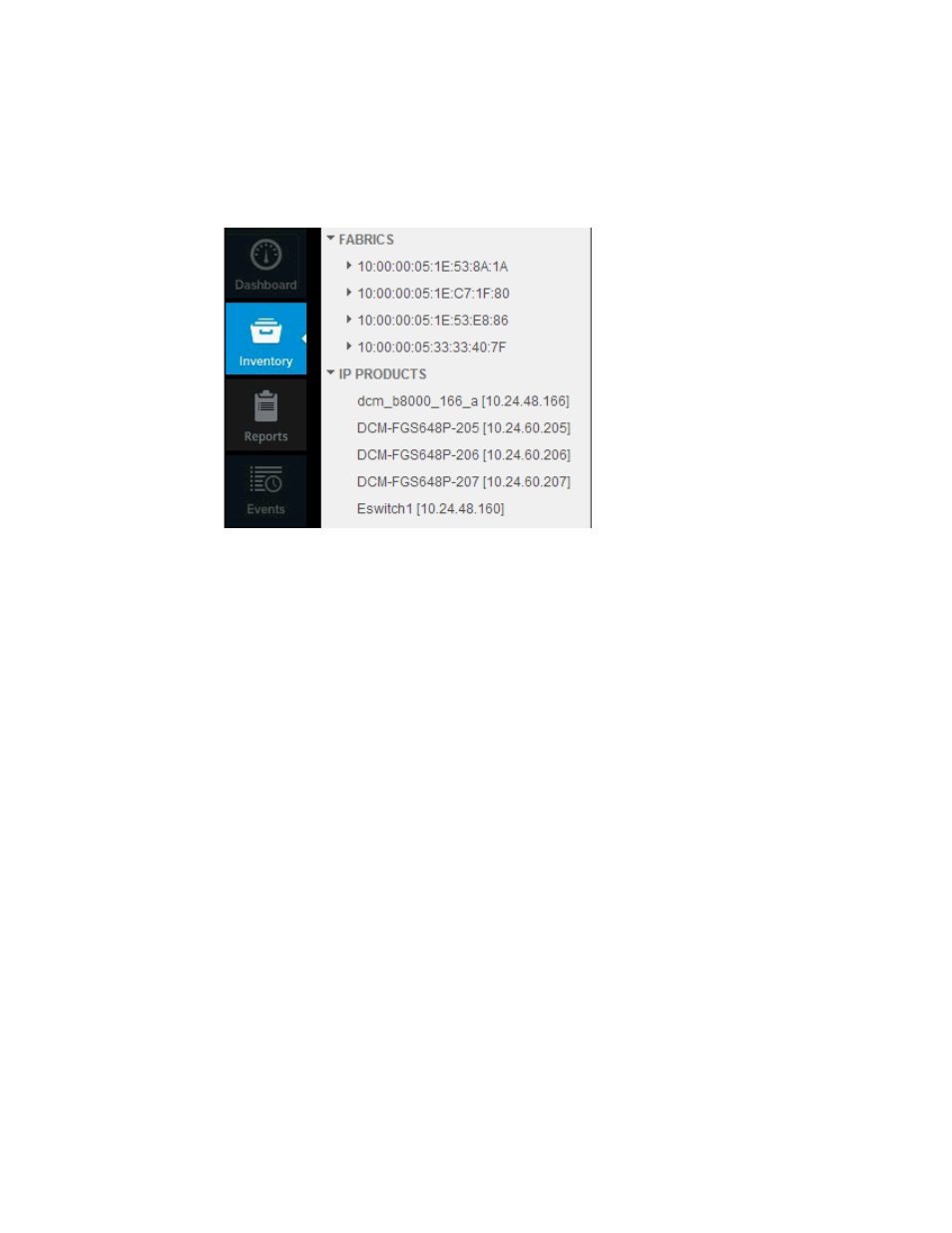

FIGURE 104 Expand navigation bar
The expand navigation bar contains the following components:
• IP Products and Ethernet fabrics — List of discovered fabrics and products. Click a fabric to
display the Fabric Page in the center pane (
“Fabric summary view” on page 263). Click the
expand arrow to display the products in the fabric. Click a product to display the Product Page
in the center pane (
“Product summary view” on page 269).
Fabric summary view
The Fabric summary view displays the Product List, fabric summary, and properties panes for a
selected fabric.
Viewing the fabric summary
To view data for a fabric, complete the following steps.
1. Click the Inventory icon.
2. Select a fabric in the Product List pane.
