8 Frame relay configuration

Nortel Secure Router 8000 Series

Configuration -WAN Access

Bad PVCs list:

Good PVCs list:

OUT Serial5/0/0:0 VC:200 STATUS:GOOD; IN Serial5/0/2:0 VC:100 STATUS:GOOD

SLAVE,Total 1 PVCs, 0 PVCs is ok; UP PVCs critical value:100%

Bad PVCs list:

OUT Serial5/0/0:1 VC:300 STATUS:BAD; IN Serial5/0/2:0 VC:100 STATUS:GOOD

Good PVCs list:

8.8 Configuring frame relay over an IP network

8.8.1 Establishing the configuration task

Applicable environment

With the increasing wide application of IP networks, you need to implement the FR network

based on FR over IP (FRoIP). FRoIP creates GRE tunnel between FR networks at two ends

and transmits FR packets through the GRE tunnel. After setting the GRE tunnel interface, the
FR switching can use it to complete FRoIP. For detailed information, see Figure 8-4.

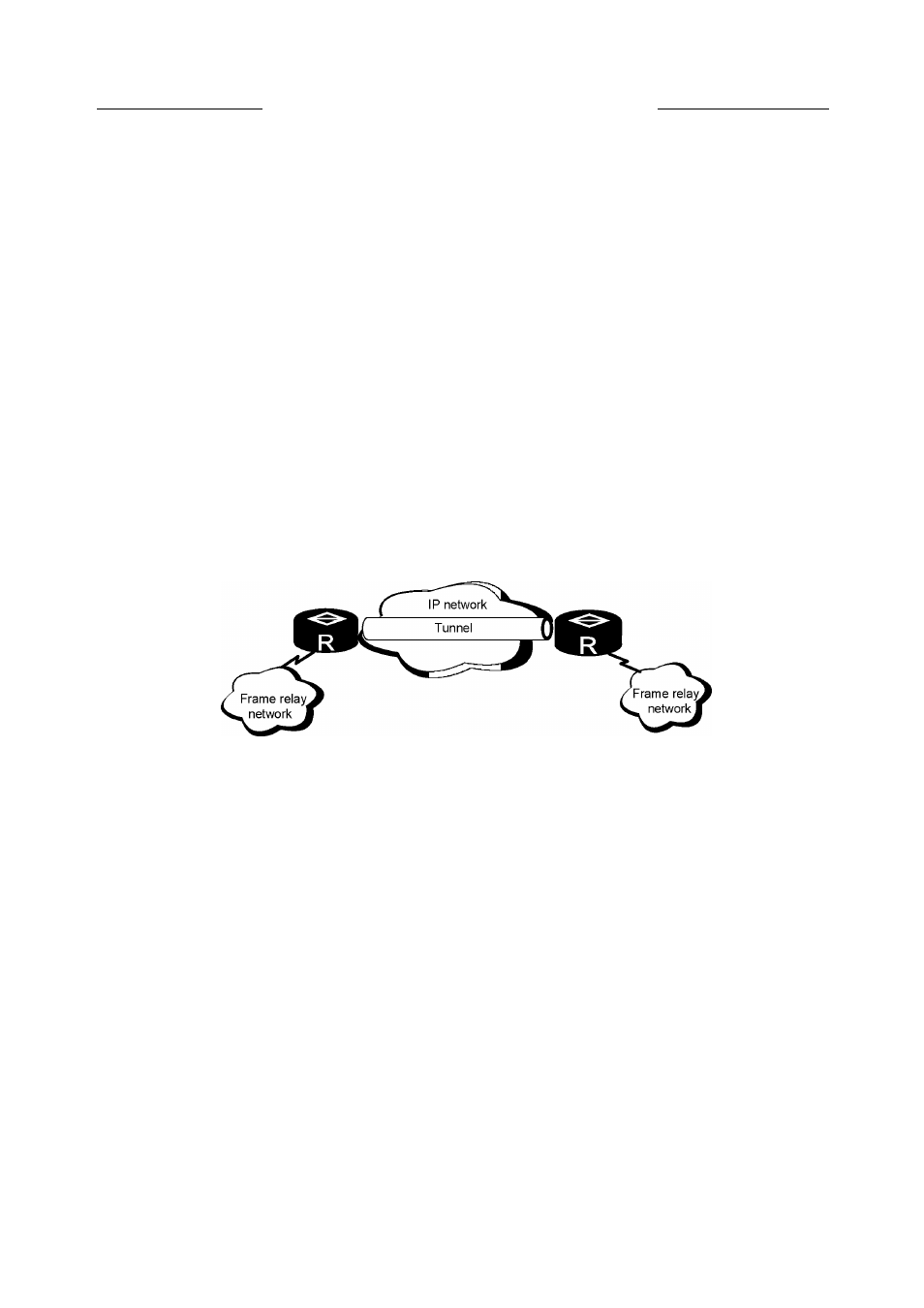

Figure 8-4

Typical application diagram of FR over IP

You can divide FR packets transmitted on the GRE tunnel into three groups:

•

FR datagram that has encapsulated with IP header

•

Inverse ARP packet

•

LMI packet used to negotiate PVC status on GRE tunnel

You can implement this function using FR switching route and FR switching PVC.

Preconfiguration tasks

Before configuring FR over an IP network and IP header compression, you need to complete

the following tasks:

•

Configuring physical parameters for FR interfaces

•

•

Creating and configuring the source address and destination address of the tunnel
interface
