6-29 __________________________________________________________________________________________________________
MAXQ7667 User’s Guide
T2P0 PIN
CODE EXECUTION:
POINT A
CODE EXECUTION:
POINT B
1A 2A
1B 2B
EVENTS:
1A: FALLING EDGE CAUSES CAPTURE/RELOAD; SINGLE-SHOT CAPTURE CYCLE BEGINS.
2A: FALLING EDGE CAUSES CAPTURE/RELOAD; SINGLE-SHOT CAPTURE CYCLE ENDS; PERIOD = T2C0.
1B AND 2B: SAME SEQUENCE AS 1A–2A, EXCEPT THAT THE SINGLE-SHOT CAPTURE CYCLE DOES NOT BEGIN UNTIL THE FIRST FALLING EDGE IS DETECTED.

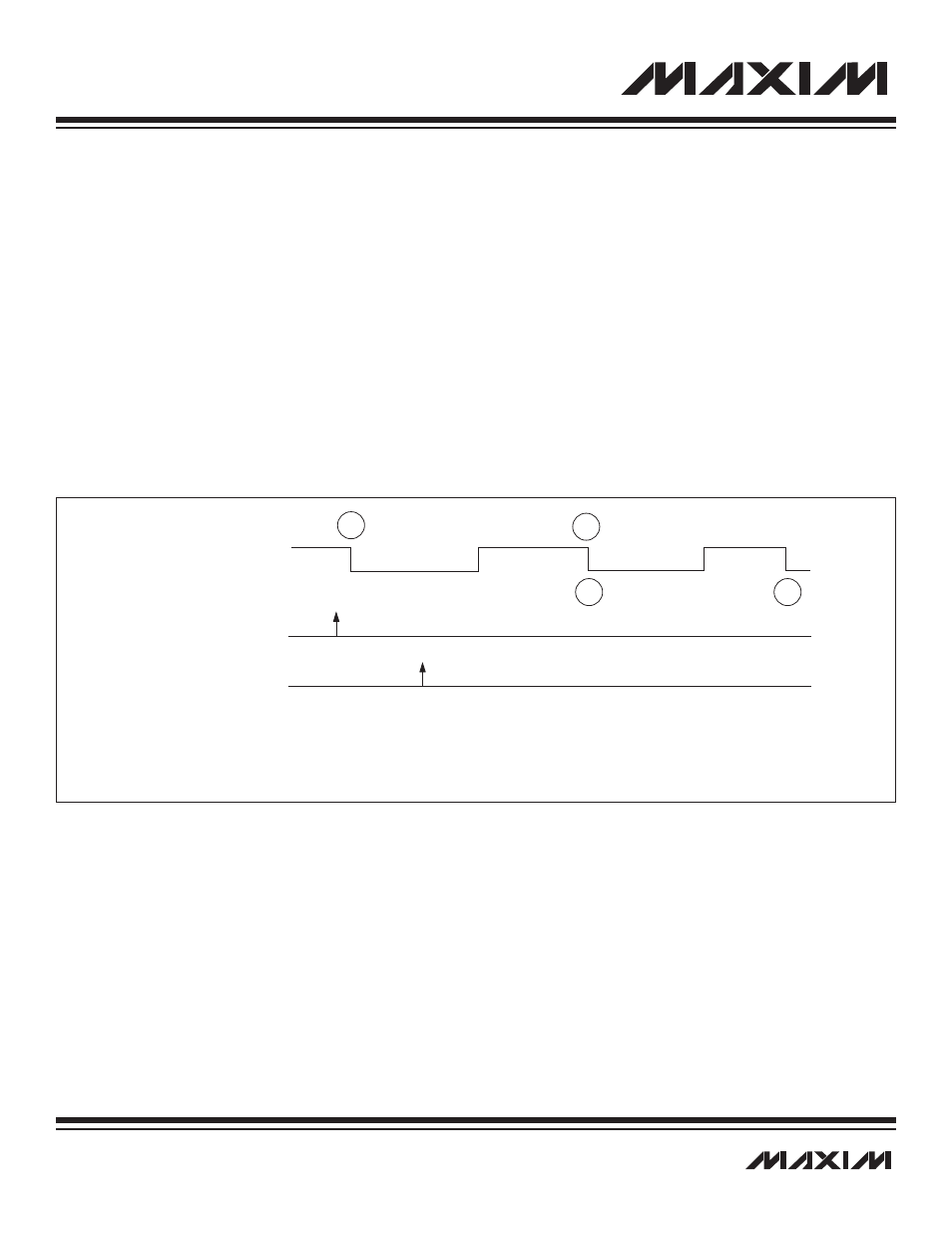

Figure 6-10. Type 2 Timer Application Example—Measure Period
6.7.9.3 Measure Period
To measure the period of the signal seen on the T2P0 input pin, the Type 2 timer is configured for a single-shot capture, no gating,
either edge (selected by the CCF[1:0] bits). The CPRL2 bit can be set to generate a reload on each capture edge.
; ------------------ Reset State: T2R0 = T2V0 = T2C0 = 0000h ------------------------
MOVE T2CFG0, #00000100b ; T2CI =0 (sysclk/N input)
; T2DIV2:0 =000 (/1)
; T2MD =0 (16-bit)
; CCF1:0 =10 (falling edge)
; C/T2 =0 (timer/capture)
MOVE T2CNA0, #10000110b ; ET2 =1 (enable Type 2 Timer ints)
; T2OE0 =0 (input)
; T2POL0 =0 (gating level = ‘0’)
; TR2L:TR2 =00 (don’t start timer )
; CPRL2 =1 (reload on capture edge)
; SS2 =1 (single shot mode)
; G2EN =0 (gating disabled)
; ------------------ TCC2 Interrupt : PERIOD = T2C0
