MAXQ7667 User’s Guide
6.7.9.2 Measure High-Pulse Duration Repeatedly
To measure the duration of high pulses seen on the T2P0 input pin repeatedly, the Type 2 timer is configured for a single-shot delayed
run, gating enabled for logic low, capture on the falling edge. The CPRL2 bit can be set to generate a reload on each falling edge.
; ------------------ Reset State: T2R0 = T2V0 = T2C0 = 0000h ------------------------
MOVE T2CFG0, #00000100b ; T2CI =0 (sysclk/N input)
; T2DIV2:0 =000 (/1)
; T2MD =0 (16-bit)
; CCF1:0 =10 (falling edge)
; C/T2 =0 (timer/capture)
MOVE T2CNA0, #10001111b ; ET2 =1 (enable Type 2 Timer ints)
; T2OE0 =0 (input)
; T2POL0 =0 (gating level = ‘0’)
; TR2L:TR2 =01 (start timer on single shot
; condition)
; CPRL2 =1 (reload on capture edge)
; SS2 =1 (single shot mode)
; G2EN =1 (gating enabled)
; ------------------ TCC2 Interrupt : DURATION = T2C0
EVENTS:
1A: FALLING EDGE CAUSES CAPTURE/RELOAD; SINGLE-SHOT CAPTURE CYCLE BEGINS; TIMER CLOCK GATED SINCE T2P0 PIN = 0.
2A: GATING CONDITION REMOVED; TIMER RUNS.
3A: FALLING EDGE CAUSES CAPTURE/RELOAD; SINGLE-SHOT CAPTURE CYCLE ENDS; DURATION = T2C0. TIMER CONTINUES TO OPERATE
SINCE TR2 = 1, BUT TIMER CLOCK GATED SINCE T2P0 PIN = 0.
4A: GATING CONDITION REMOVED; TIMER RUNS.
1B: GATING CONDITION REMOVED; SINGLE-SHOT CAPTURE CYCLE BEGINS.
2B: FALLING EDGE CAUSES CAPTURE/RELOAD; SINGLE-SHOT CAPTURE CYCLE ENDS; DURATION = T2C0. TIMER CONTINUES TO OPERATE
SINCE TR2 = 1, BUT TIMER CLOCK GATED SINCE T2P0 PIN = 0.
3B: GATING CONDITION REMOVED; TIMER RUNS.
T2P0 PIN
CODE EXECUTION:
POINT A
CODE EXECUTION:
POINT B
1A 2A
1B 2B 3B
3A 4A

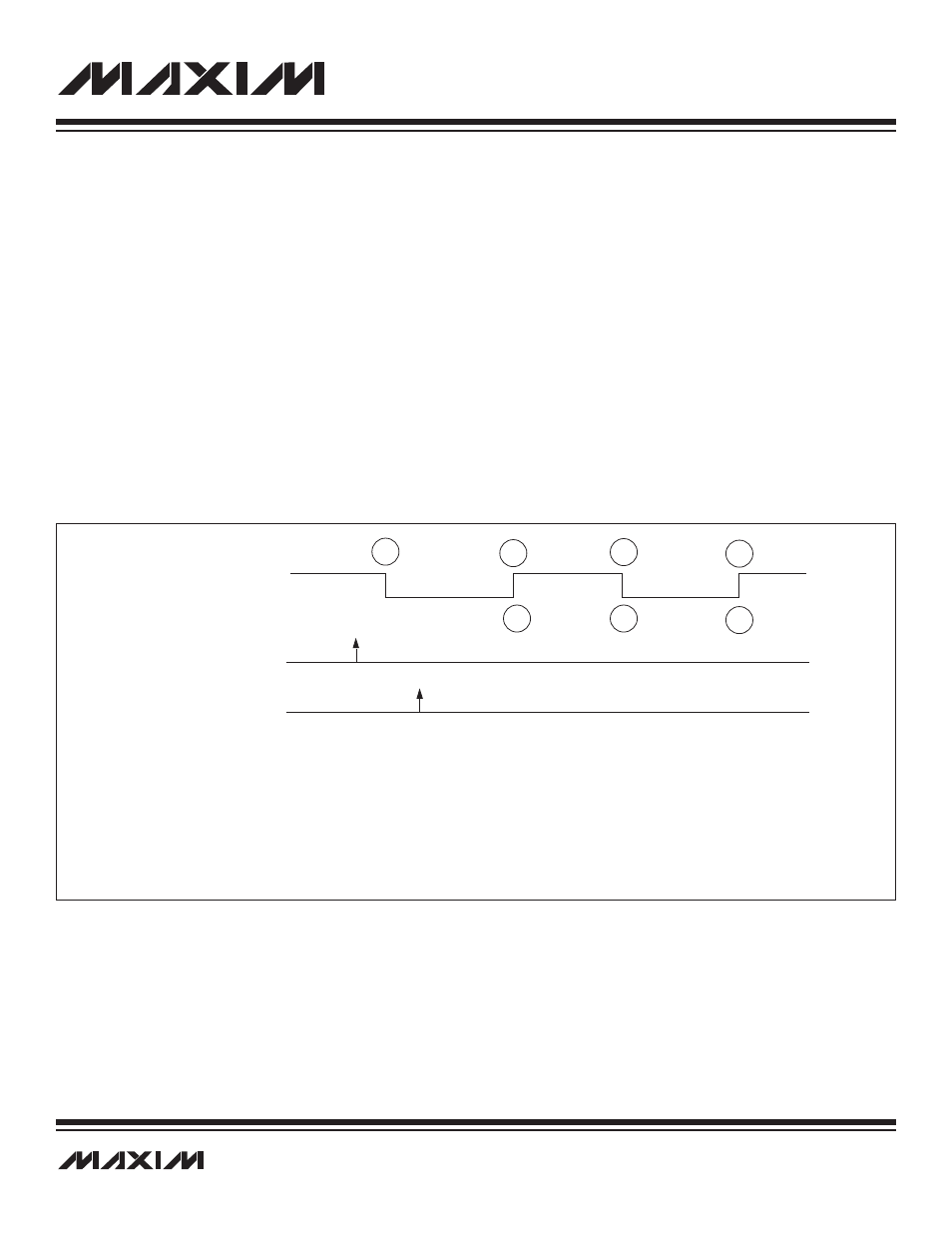

Figure 6-9. Type 2 Timer Application Example—Measure High Pulse Width
