MAXQ7667 User’s Guide

T2MD

T2Lx 8-BIT TIMER

T2Vx

16-BIT TIMER

OR

T2Hx 8-TIMER

POSSIBLE INPUT USE:

TIMER GATE EDGE

CAPTURE/RELOAD

EDGE COUNTER

T2PBx PIN

T2OE[0]

T2OE[1]

T2POL[1]

PORT LATCH

(IF PDn.q = 1, WHERE n = PORT # AND q = BIT #)

POx.x DATA

(IF PDx.x = 1)

T2Lx COMPARE

T2POL[0]

Figure 6-4. Output Enable and Polarity Control

T2CLx

EDGE DETECTION

AND GATING

C/T2

TR2L

T2MD

T2CLK

CCF[1:0]

G2EN

TR2

SS2

T2POL[0]

T2Lx

T2OE[0]

T2Vx COMPARE MATCH

OR T2Hx COMPARE MATCH

T2Lx OVERFLOW

T2Hx:T2Lx OVERFLOW

OR T2Hx OVERFLOW

T2RLx

T2Px PIN INPUT

T2CHx

T2Hx

T2RHx

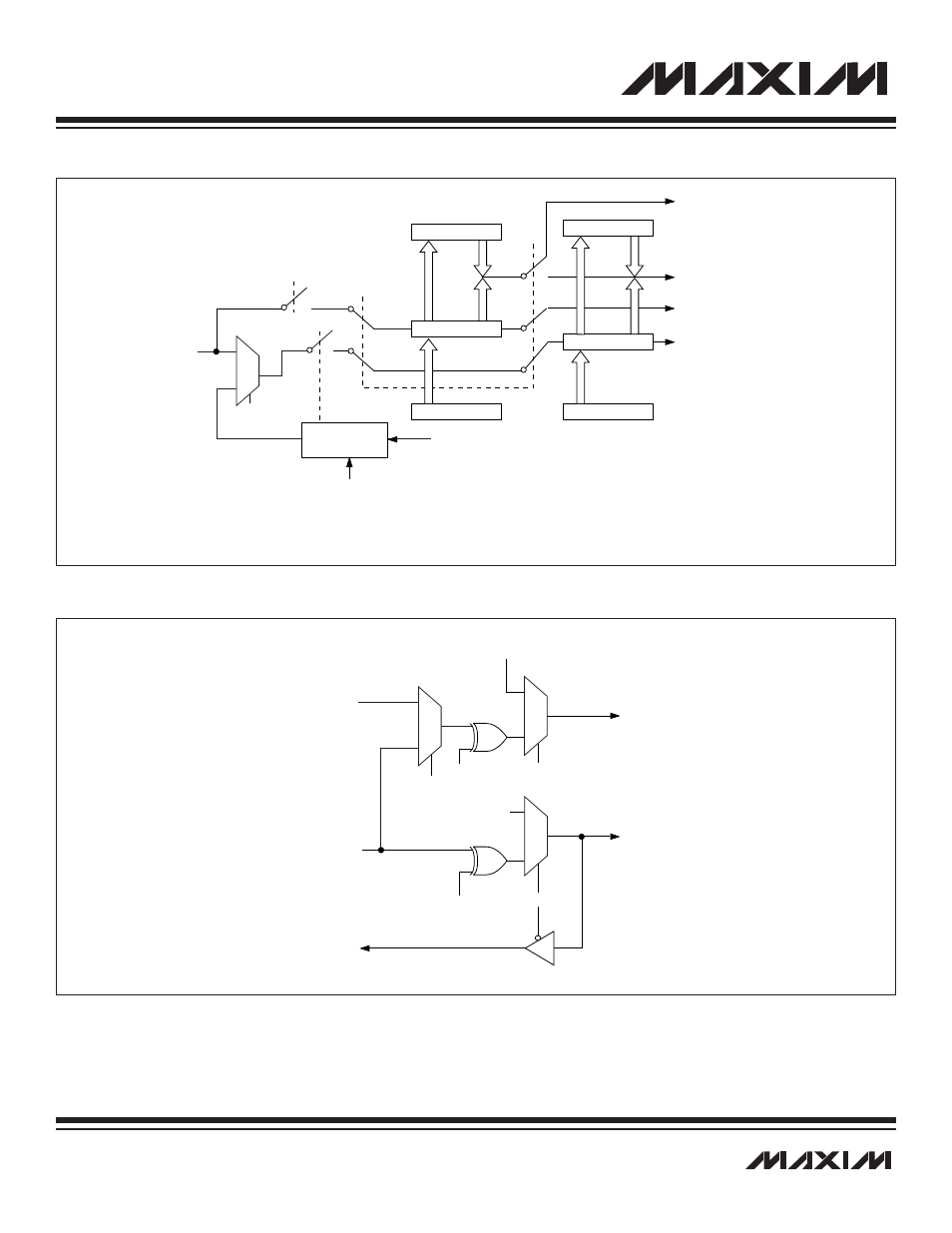

Figure 6-3. Type 2 Timer Mode Selection
