T2P0 PIN
CODE EXECUTION:
POINT A
CODE EXECUTION:
POINT B
1A 2A
1B 2B 3B
EVENTS:
1A: GATING CONDITION REMOVED; SINGLE-SHOT CAPTURE CYCLE BEGINS.
2A: RISING EDGE CAUSES CAPTURE/RELOAD; SINGLE-SHOT CAPTURE CYCLE ENDS; DURATION = T2C0.
1B: RISING EDGE CAUSES CAPTURE/RELOAD; SINGLE-SHOT CAPTURE CYCLE BEGINS, TIMER CLOCK GATED SINCE T2P0 PIN = 1.
2B: GATING CONDITION REMOVED; TIMER RUNS.
3B: RISING EDGE CAUSES CAPTURE/RELOAD; SINGLE-SHOT CAPTURE CYCLE ENDS; DURATION = T2C0.

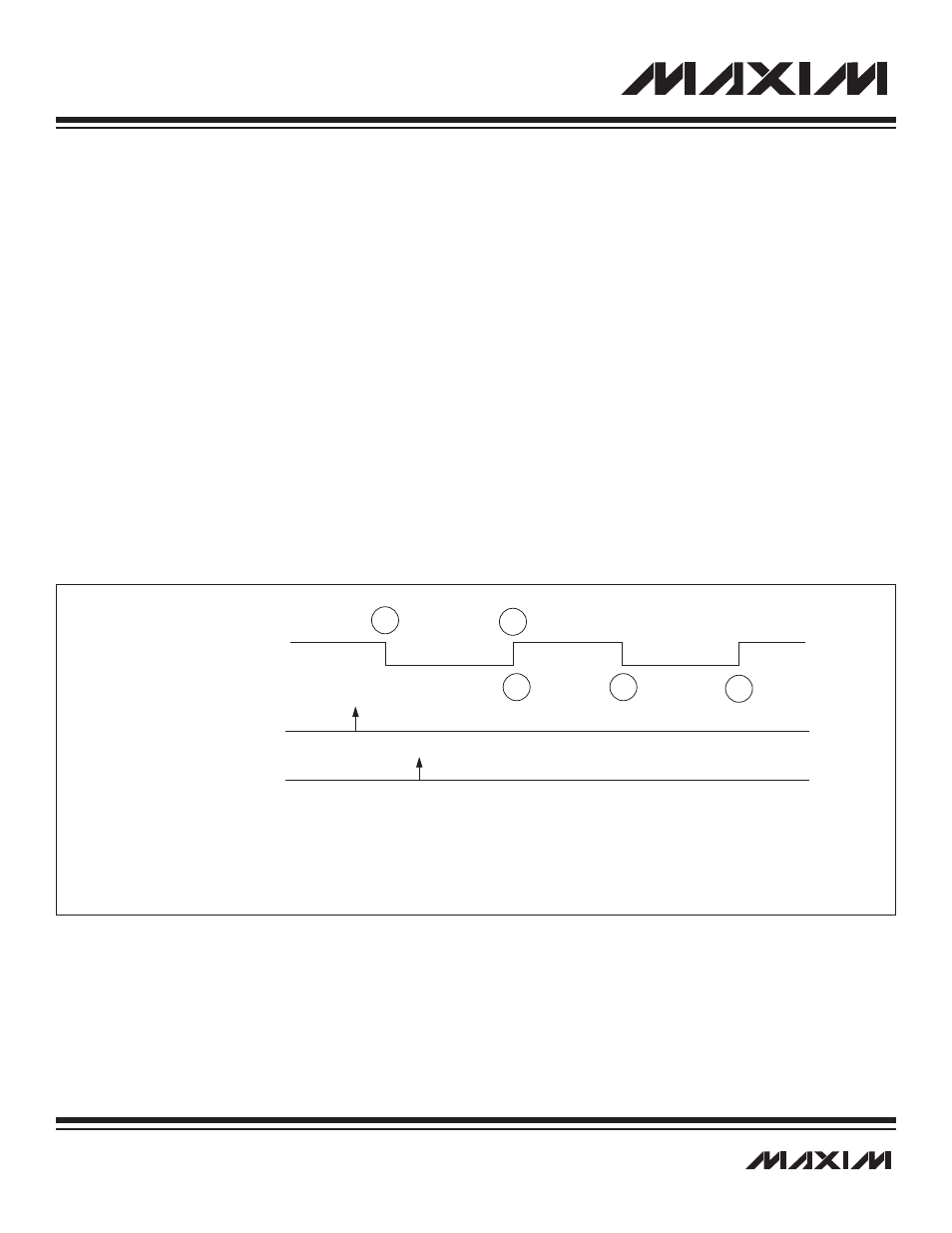

Figure 6-8. Type 2 Timer Application Example—Measure Low Pulse Width
6.7.9 Type 2 Timer Capture Application Examples
The following examples are used to demonstrate some of the Type 2 timer capture functions. All examples assume that pulse and/or
period measurements do not exceed 2 16 (i.e., 65,536) input clocks and that capture register holds the desired result.
6.7.9.1 Measure Low-Pulse Duration
To measure the duration of the first full low pulse seen on the T2P0 input pin, the Type 2 timer is configured for a single-shot capture,
gating enabled for logic high, capture on the rising edge. The CPRL2 bit can optionally be set to generate a reload on the same rising
edge as the capture if the preconfigured T2R0 value is expected to be needed next.
; ------------------ Reset State: T2R0 = T2V0 = T2C0 = 0000h ------------------------
MOVE T2CFG0, #00000010b ; T2CI =0 (sysclk/N input)
; T2DIV2:0 =000 (/1)
; T2MD =0 (16-bit)
; CCF1:0 =01 (rising edge)
; C/T2 =0 (timer/capture)
MOVE T2CNA0, #10100111b ; ET2 =1 (enable Type 2 Timer ints)
; T2OE0 =0 (input)
; T2POL0 =1 (gating level = ‘1’)
; TR2L:TR2 =00 (don’t start timer)
; CPRL2 =1 (reload on capture edge)
; SS2 =1 (single shot mode)
; G2EN =1 (gating enabled)
; ------------------ TCC2 Interrupt : DURATION = T2C0
