1 architecture, 1 burst transmission stage, 2 echo reception – Maxim Integrated MAXQ7667 User Manual

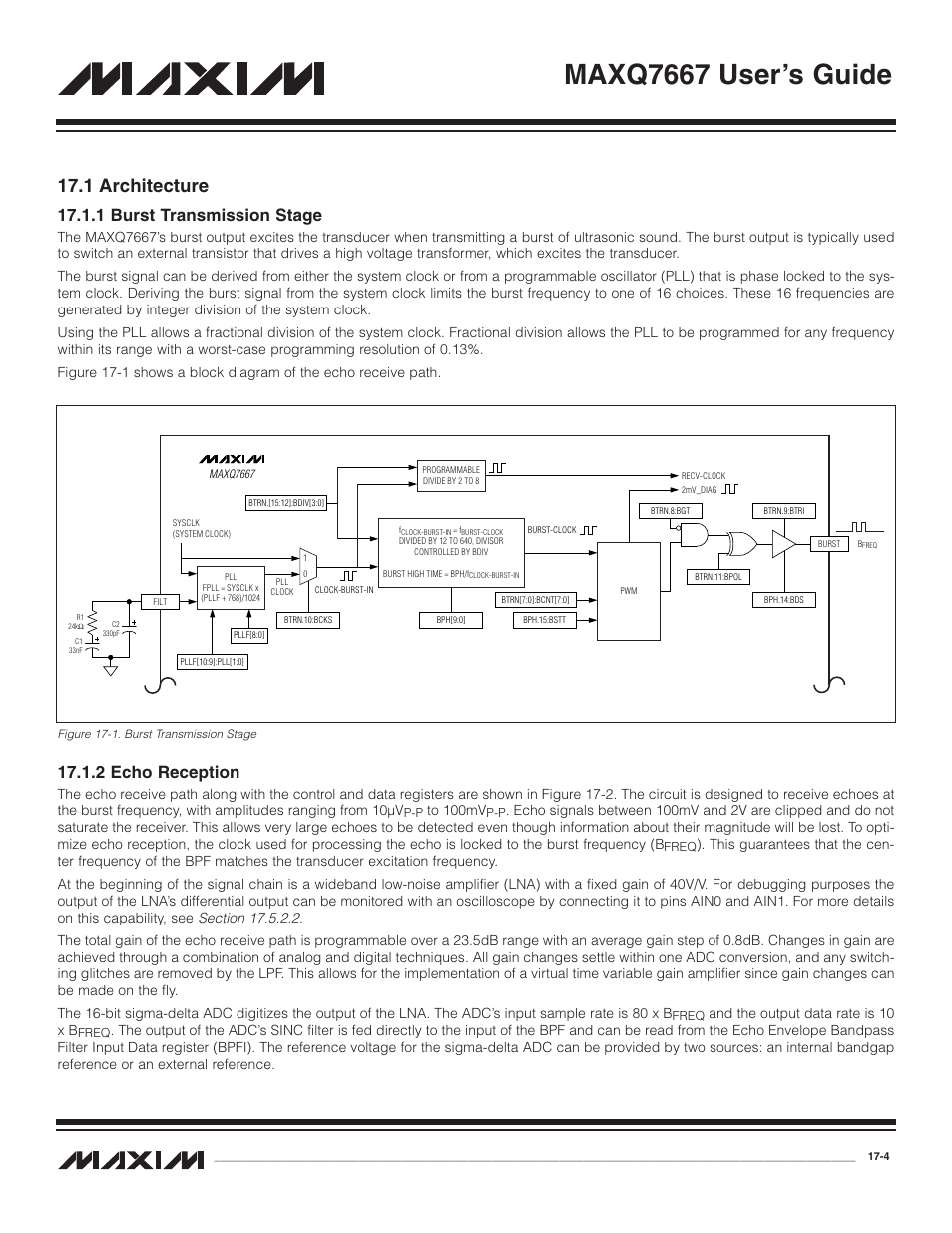

Page 286: 1 architecture -4, 1 burst transmission stage -4, 2 echo reception -4, Figure 17-1. burst transmission stage -4, Maxq7667 user’s guide
