Appendix B: DIP Switch Settings
270
AT-CM2K0S Line Card DIP Switches
The AT-CM2K0S line card features one set of DIP switches labeled “SW1”
as shown in Figure 90.

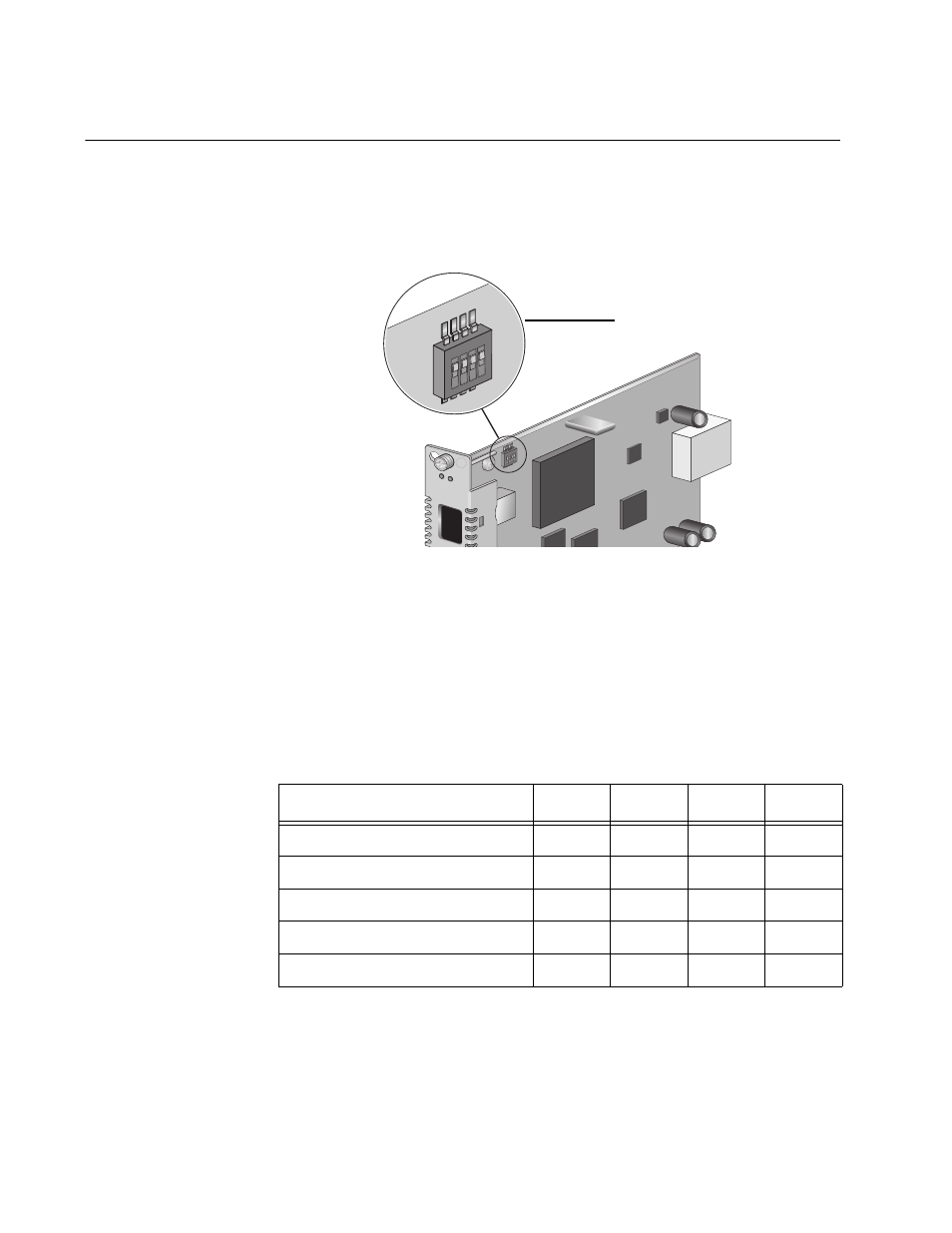

Figure 90. DIP Switch Set on an AT-CM2K0S Line Card
The DIP switches in the SW 1 DIP switch set allow you to set the
operating mode of the line card. For information about the operating
modes, refer to “Configuring the Line Card Operating Mode” on page 67.
Table 8 shows how to enable the operating mode on an AT-CM2K0S line
card by setting the DIP switches in the SW 1 DIP switch set.
“X” means that the DIP switch position can be ON or OFF.
AT-CM2K0
S
LK AT
SFP
SW1
ON
SW 1 DIP Switch Set
Table 8. SW 1 DIP Switch Set (Operating Mode) for the AT-CM2K0S Line
Card
Operating Mode DIP 1 DIP 2 DIP 3 DIP 4
Smart MissingLink (SML) OFF ON ON X
MissingLink™ (ML) OFF OFF ON X
OAM Bypass ON OFF OFF X
OAM Visible ON ON OFF X
Link Test (default) OFF OFF OFF OFF
