AT-S70 Management Software User’s Guide
23
Local Management Session
The AT-CV5M01 Management Card has a port labelled “console.” You
use this port to establish a local (out-of-band) management session
through the AT-S70 management software.
A chassis does not need an IP address for you to manage it from a local
management session. You can start a local management session at any
time on any Converteon™ chassis in your network. A local management
session does not interfere with the flow of Ethernet traffic through the unit.
Starting a Local
Management
Session
To start a local management session, perform the following procedure:
1. Connect one end of a straight-through RS-232 cable with a DB-9
connector to the RS-232 Terminal Port on the AT-CV5M01
Management Card, as shown in Figure 1.

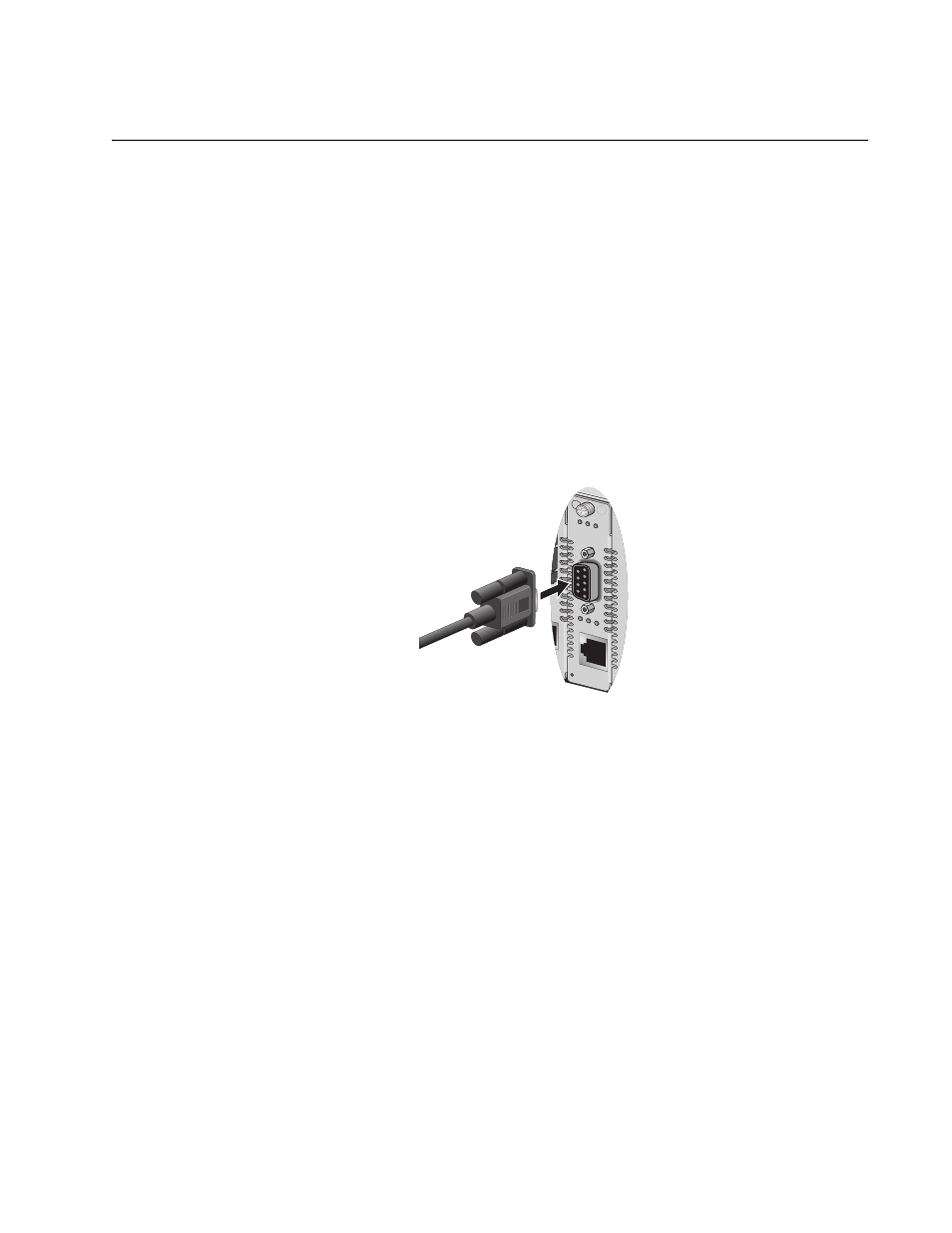

Figure 1. Connecting an RS-232 Cable to the Console Port on an
AT-CV5M01 Management Card
2. Connect the other end of the cable to an RS-232 port on a terminal or
PC with a terminal emulator program.
3. Configure the terminal or terminal emulation program as follows:
ˆ Bits per second: 2400 to 115200 bps (default 115200)
(see Note below)
ˆ Data bits: 8
ˆ Parity: None
ˆ Stop bits: 1
ˆ Flow control: None
02
AT-CV501
PWR RD
Y FL T
LK A T FD
CPU RES
ET
530
