Chapter 10: File Downloads and Uploads
244

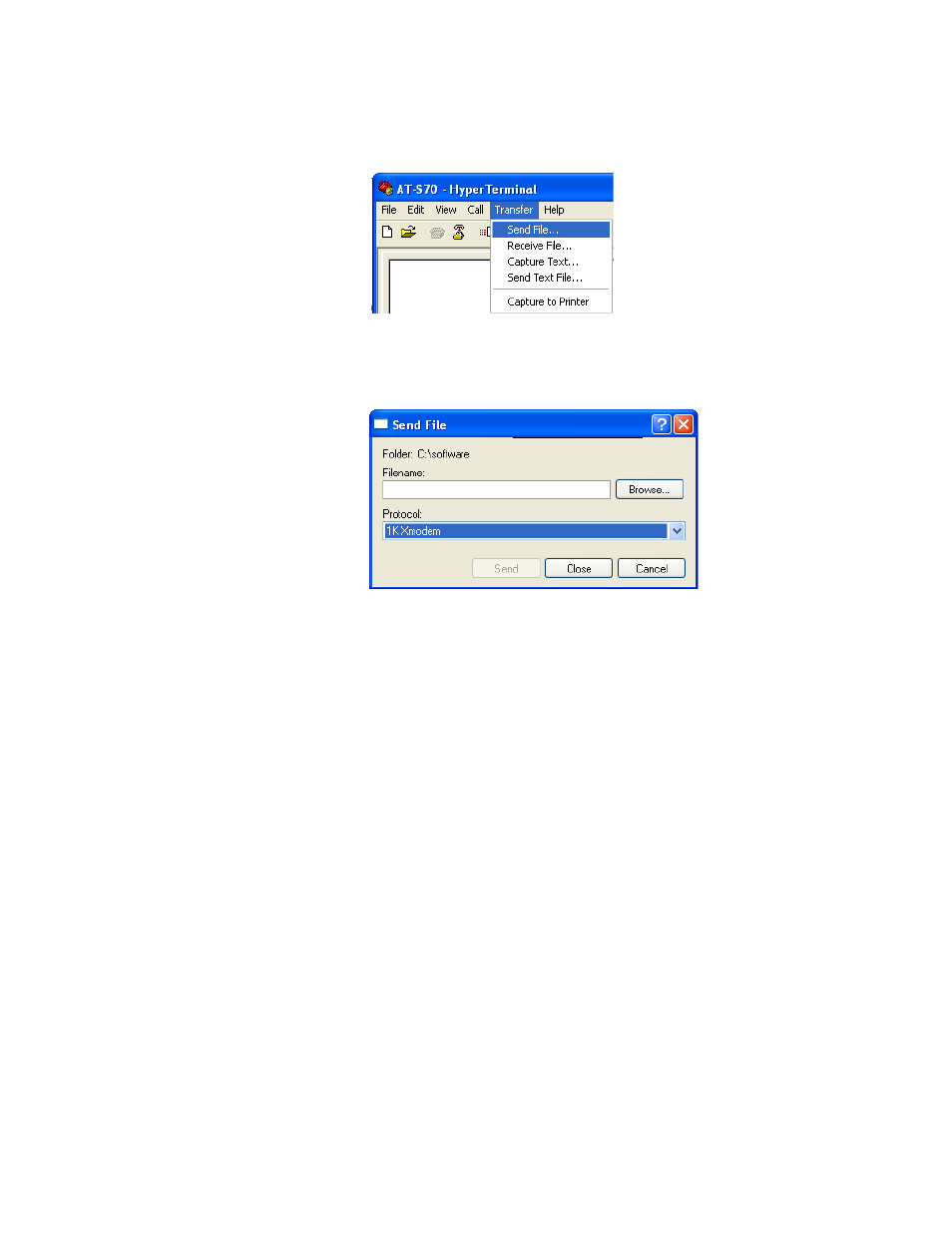

6. From the HyperTerminal main window, select the Transfer > Send
File, as shown in Figure 84.
Figure 84. HyperTerminal Window
The Send File window is displayed, as shown in Figure 85.
Figure 85. Send File Window
7. Click the Browse button to select the file to be downloaded onto the
chassis.
8. In the Protocol field, select the transfer protocol as either Xmodem or
1K Xmodem for a faster download.
9. Click Send.
The software immediately begins downloading onto the chassis. The
Xmodem File Send window, shown in Figure 86, displays the current
