Page 80

Publication 1757-IN040B-EN-P - March 2002

3-12 ProcessLogix Server Installation Procedures

– For ControlNet Supervisory Networks, skip to Configuring

– For Ethernet Supervisory Networks, skip to Configuring

3. Close RSLinx.

Installing the Activation File

1. Locate the RSLinx Master Disk and insert it into the floppy drive.

2. Click Start

⇒

Run.

3. Key in this path location in the Open entry field or use Browse

to navigate to the evmove.exe file on the diskette.

>A:(or your floppy drive letter)\EVMOVE.EXE<

4. Click OK to launch the move executive.

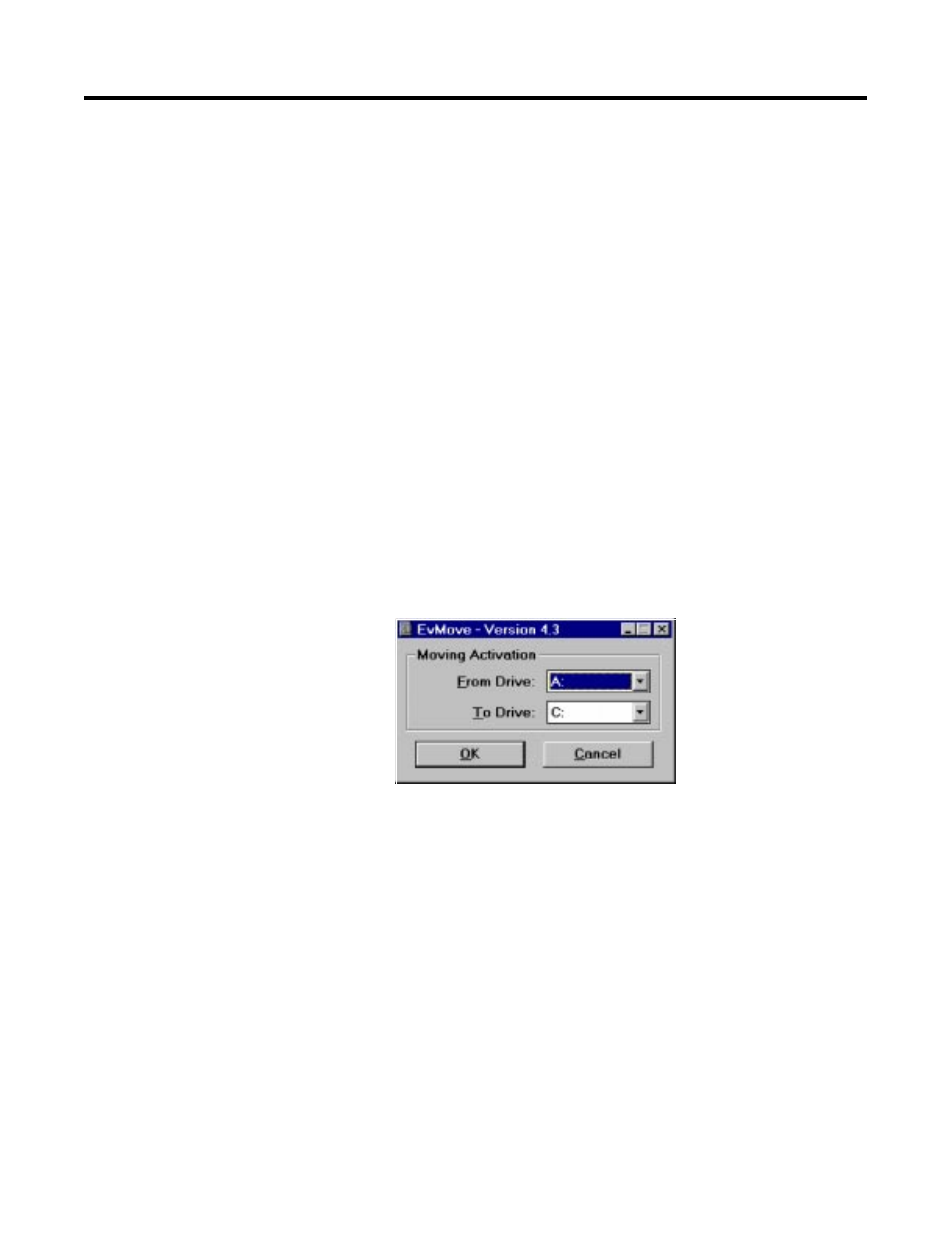

5. Confirm that the floppy drive letter A:, for example, appears in

the From Drive field and the hard drive letter C:, for example,
appears in the To Drive field in the dialog box.

6. Click OK to initiate the move.

7. Click Move to move the file to the hard drive. Wait for a dialog

box to give a successful move indication, and click OK to exit.

8. Remove the Master Disk from your floppy drive and store it in a

safe place.
